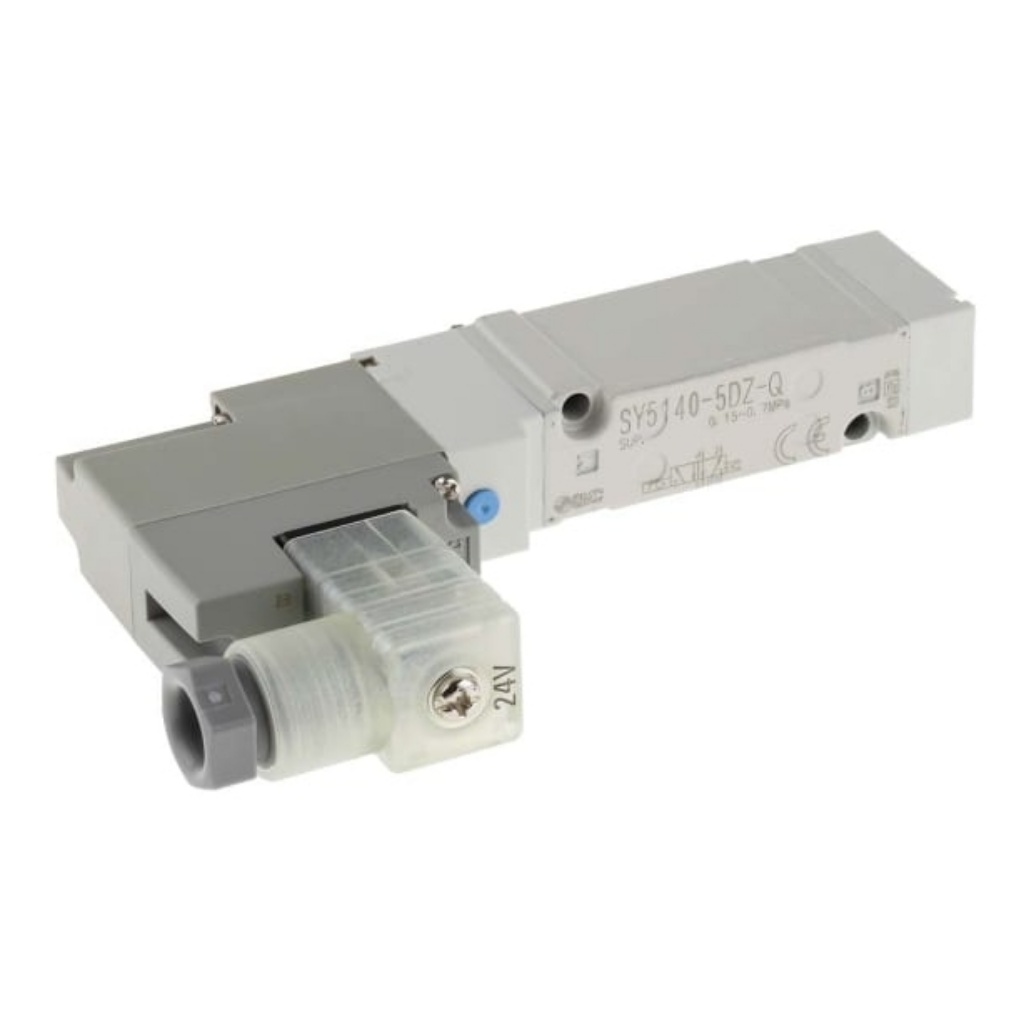

Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Solenoid SY5000 Series 24V dc, SMC, SY5140-5DZ-Q

SMC Solenoid Valve

The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. The valve space-saving design means that it can be individually mounted onto sub plates or configured onto base mount manifolds. It has a pilot exhaust and a copper-free design. The valve cover also uses stainless steel which makes it stronger. This valve is available with a DIN terminal with connector.

Features and Benefits

Solenoid power consumption is 0.35W
Maximum flow rate is 280NL/min
Operating pressure ranges between 0.1MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Solenoid valves are extremely compact and offer high flow rates
Supplied with surge voltage suppressors

Certifications

IP65 rated
CE certified
