Pneumatic Solenoid Valves
A pneumatic solenoid valve, also called a directional control valve, pneumatic switch valve, or compressed air valve, is essential for managing the flow of compressed air within pneumatic systems. These valves are widely used in automation and control to actuate tools, cylinders, and larger industrial valves. Pneumatic Resources offers a broad selection of configurations featuring various pressure ratings, port sizes, thread types, body materials, and mounting options to fit all industrial automation requirements.
Available in many configurations, our valves accommodate specific needs with choices in thread sizes, actuation methods, connection port thread types, and solenoid voltages such as 12 Vdc, 24 Vac, and up to 240 Vac, ensuring compatibility across diverse industrial applications. For more details, please see our comprehensive guide to solenoid valves.
Types of Solenoid Valves
Pneumatic solenoid valves are categorized by their mode of operation: solenoid-operated and air-pilot-operated.
Solenoid-Operated Valves
Solenoid-operated valves feature an electrical coil connected to the valve. When energized by a small electrical current, the coil actuates an internal spool or poppet mechanism, opening or closing the valve. Common coil voltages include 12 Vdc, 24 Vac, 24 Vdc, 120 Vac, and 240 Vac.
Air-Pilot Operated Valves
Air-pilot-operated valves use an external air source to control operation. Instead of an electrical signal directly actuating the valve, air pressure is applied to a piston or diaphragm. This pressure may be regulated by a solenoid located elsewhere or an integrated smaller solenoid internally air-piloted.
How Are Pneumatic Solenoid Valves Mounted?
Solenoid valves can be installed on a DIN rail or mounted on a manifold. A manifold is a mounting block that allows multiple valves to be grouped in one centralized location. Manifolds come as single blocks or modular units for easier maintenance.
Classification of Pneumatic Valve Configurations
Pneumatic solenoid valves follow a standard numbering system representing their design. The first number indicates the number of ports, and the second indicates the number of operating states. Common examples include 2-way and 3-way valves, with options such as normally open (N/O) or normally closed (N/C). For instance, a 2/2 valve has two ports (inlet and outlet) and two states (open and closed), while a 3/2 valve has three ports and two states. Most pneumatic solenoid valves feature two, three, or five ports.
What is the Life Expectancy of a Pneumatic Solenoid Valve?
The lifespan of a pneumatic solenoid valve varies depending on usage, environmental conditions, and maintenance. Typically, these valves can endure between 10 million and over 50 million cycles, depending on the valve’s quality and operating environment.
Industrial Applications of Pneumatic Solenoid Valves
Pneumatic solenoid valves are widely used across industries due to their reliability and precise control of airflow and gases. They play a critical role in automation systems requiring fluid power control.
- Manufacturing: Used in automated machinery and assembly lines to control the swift, accurate movement and processing of parts.
- Automotive Industry: Operate pneumatic tools and systems critical to assembling vehicle components efficiently.
- Packaging: Control sealing, cutting, and wrapping processes in packaging machinery to ensure consistent, high-speed operations.
- Pharmaceuticals: Manage clean, sterile airflow in precision applications to maintain contamination-free environments.
- Food and Beverage: Regulate processes in food production equipment, ensuring hygiene and efficiency aligned with health standards.
- Robotics and Automation: Provide precise control of movements and functions within robotic and automated systems.
Ordering & Delivery Information for Pneumatic Solenoid Valves in Australia
Pneumatic Resources is dedicated to delivering fast and reliable service across Australia, fulfilling your needs for pneumatic solenoid valves and related components such as pneumatic fittings and compressor hoses. Whether you require parts from the industry-leading brand SMC or other products, our delivery services are designed to meet your expectations. For more details on delivery options and charges, please visit our Delivery Information page.
Pneumatic Solenoid Valve - VP500 Series, SMC, VP544-5DZ1-03F-X538
VP544-5DZ1-03F-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,140.08
Pneumatic Solenoid Valve - VP500 Series, SMC, VP544R-5DZ1-03F-M-X538
VP544R-5DZ1-03F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,093.28

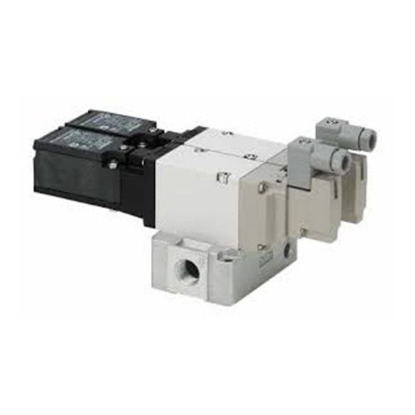

Pneumatic Solenoid Valve - VP500 Series, SMC, VP544R-5YZ1-03F-M-X538
VP544R-5YZ1-03F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,093.28

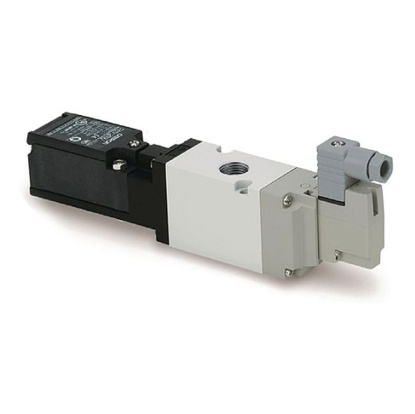

Pneumatic Solenoid Valve - VP700 Series, SMC, VP742-5DZ1-04F-M-X536
VP742-5DZ1-04F-M-X536
SMC ISO13849-1 Category 2 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 2 safety systems conforming to ISO standard ISO13849-1. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
Note
Any of these products are component function parts to ensure safety in the control system of the machine, but are NOT certified to safety standard ISO13849-1
It is recommended that confirmation is sought from a third party certification organisation about the safety of the control system as a whole.
$981.36
Pneumatic Solenoid Valve - VP700 Series, SMC, VP742-5DZ1-04F-X536
VP742-5DZ1-04F-X536
SMC ISO13849-1 Category 2 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 2 safety systems conforming to ISO standard ISO13849-1. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
Note
Any of these products are component function parts to ensure safety in the control system of the machine, but are NOT certified to safety standard ISO13849-1
It is recommended that confirmation is sought from a third party certification organisation about the safety of the control system as a whole.
$943.91
Pneumatic Solenoid Valve - VP700 Series, SMC, VP742R-5YZ1-04F-M-X536
VP742R-5YZ1-04F-M-X536
SMC ISO13849-1 Category 2 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 2 safety systems conforming to ISO standard ISO13849-1. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
Note
Any of these products are component function parts to ensure safety in the control system of the machine, but are NOT certified to safety standard ISO13849-1
It is recommended that confirmation is sought from a third party certification organisation about the safety of the control system as a whole.
$962.12
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744-5DZ1-04F-M-X538
VP744-5DZ1-04F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,562.81
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744-5DZ1-04F-X538
VP744-5DZ1-04F-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,574.43
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744-5YZ1-04F-M-X538
VP744-5YZ1-04F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,562.81
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744R-5DZ1-04F-M-X538
VP744R-5DZ1-04F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,562.81
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744R-5DZ1-04F-X538
VP744R-5DZ1-04F-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,605.93
Pneumatic Solenoid Valve - VP700 Series, SMC, VP744R-5YZ1-04F-M-X538
VP744R-5YZ1-04F-M-X538
SMC ISO13849-1 Category 3 & 4 Valves
VP series valves allow safe venting of compressed air to atmosphere and can be used in category 3 and 4 safety systems conforming to ISO standard ISO13849-1. The valve is equipped with two stations allowing pressure to be safely vented if failure occurs. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.
Features and Benefits
• ISO13849-1 category 2 compliant
• Fitted with limit switch for position monitoring
• LED position indicator
• Normally closed , return spring operation
• Modular fit with SMC FRL systems
• Available with external or internal pilot
• 0.45W power consumption (solenoid consumption)
• Fitted with varistor voltage suppressor
• 30 times/min max operating frequency
• 1 time/week minimum operating frequency
Applications
The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
• Tyre pressure testing machinery
• Moulding machines
• Assembly machines
$1,619.21
