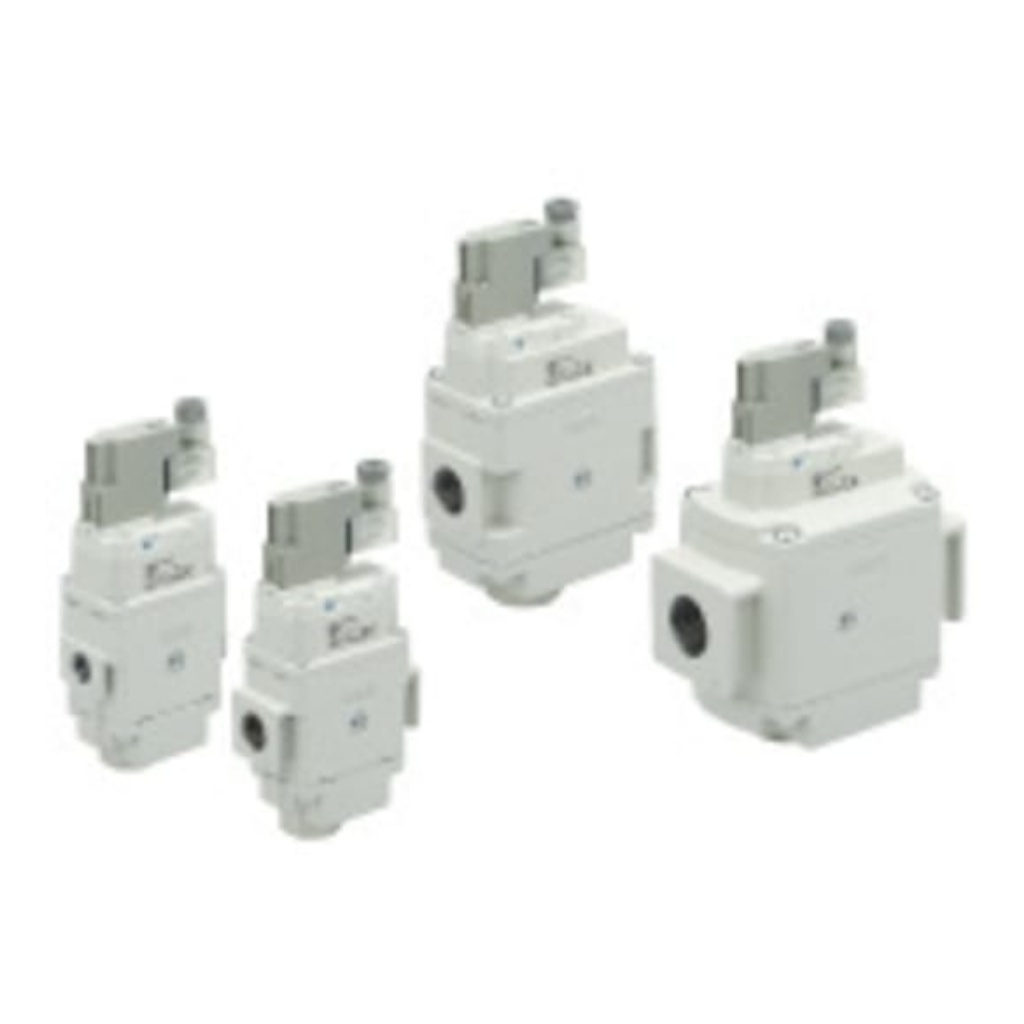

Picture of Pneumatic Solenoid Valve - Start-Up Valve G 1/4 AV 2000 Series 24V dc, SMC, AV2000-F02-5YB-A

Pneumatic Solenoid Valve - Start-Up Valve G 1/4 AV 2000 Series 24V dc, SMC, AV2000-F02-5YB-A

Start-up valve for low speed air supply to gradually raise
Initial pressure in an air system and for quick exhaust by cutting off air supply
Power consumption: 0.35 W
Improved flow rate characteristics: Up to 2.3 times C[dm3/(s·bar)]: 9.2
Energy saving: No air flow when the main valve is switched.
Improved adjustability at low speed air supply
Smaller profile and less work hours due to integrated silencer
Manufacturer: SMC
SKU: AV2000-F02-5YB-A
$361.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadG 1/4
Actuation TypeStart-Up Valve
Manufacturer SeriesAV 2000
Mounting StyleStand-Alone
Solenoid Voltage24V dc
Solenoid FittedYes
Body MaterialDie Cast Aluminium
Solenoid Power Consumption0.35 W, 0.45 (With Light) W
Minimum Operating Pressure0.2MPa
Minimum Operating Temperature0°C
Maximum Operating Temperature+50°C
Thread Size1/4in
Maximum Operating Pressure1 MPa
Number of Positions3
Thread StandardG
