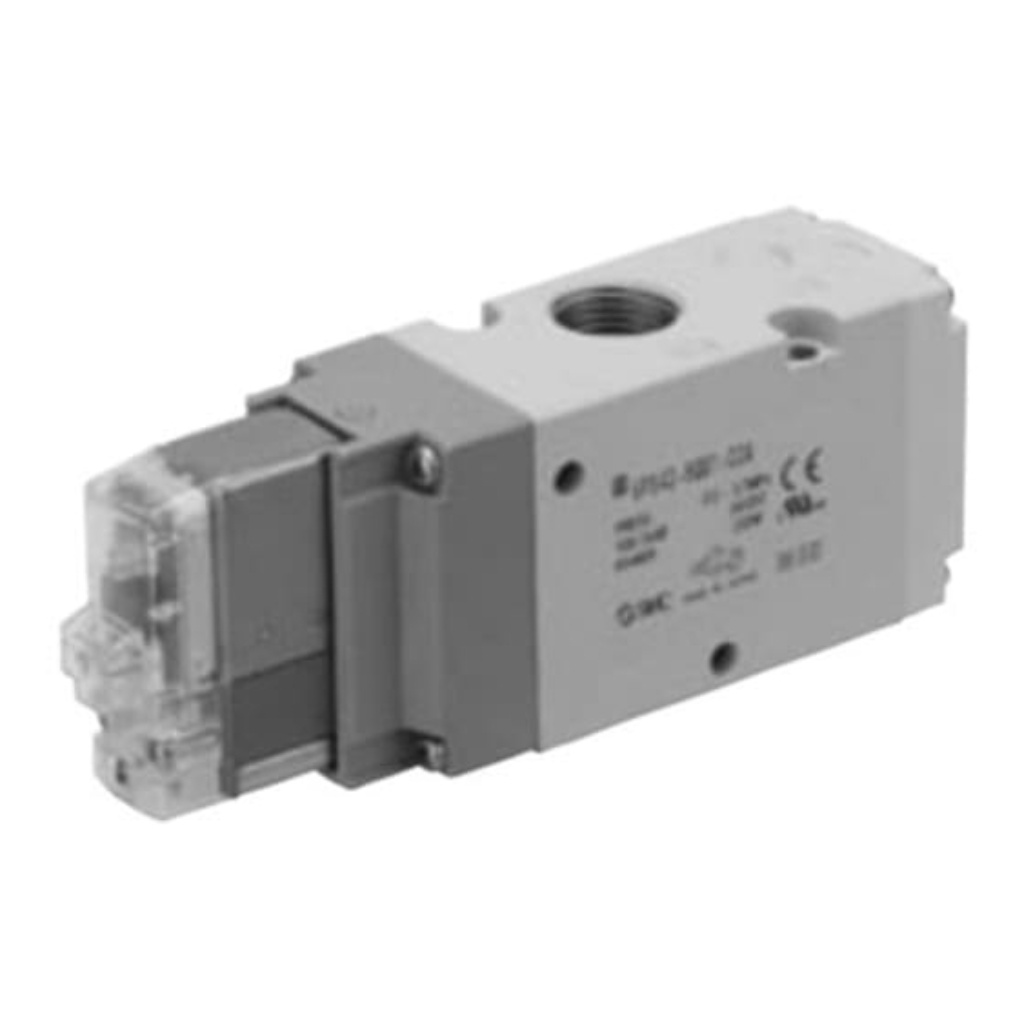

Picture of Pneumatic Solenoid Valve - Solenoid/Pilot/Spring Rc 3/8 VP500 Series 24V dc, SMC, VP542R-5DU1-03A

Pneumatic Solenoid Valve - Solenoid/Pilot/Spring Rc 3/8 VP500 Series 24V dc, SMC, VP542R-5DU1-03A

VP500 Solenoid Valve

The VP500 is a body ported poppet type solenoid valve with a high flow capacity and low powers consumption. Suitable for use as a divider or selector valve and with a life expectancy of over 50 million cycles. The VP500 is also fitted with a strainer to prevent contamination entering the valve from the pilot.

Unrestricted mounting orientation
Suitable for vacuum applications to -100kPa
Manual Override
Normally closed
External pilot (0.2 to 0.7 MPa)

SMC VP Series
Manufacturer: SMC
SKU: VP542R-5DU1-03A
$264.83
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadRc 3/8
Actuation TypeSolenoid/Pilot/Spring
Manufacturer SeriesVP500
Mounting StyleBody Ported
Solenoid Voltage24V dc
Number of Ports3
Body MaterialDie Cast Aluminium
Solenoid Power Consumption1.5 (With Light 1.75)W
Minimum Operating Pressure-100kPa
Configuration2-Position, 3 Port
Number of Positions2
Thread Size3/8in
Maximum Operating Pressure0.7 MPa
Maximum Operating Temperature+50°C
Minimum Operating Temperature-10°C
Special FeaturesBuilt-in Strainer in the Pilot Valve, Noise Reduction
Thread StandardRc
