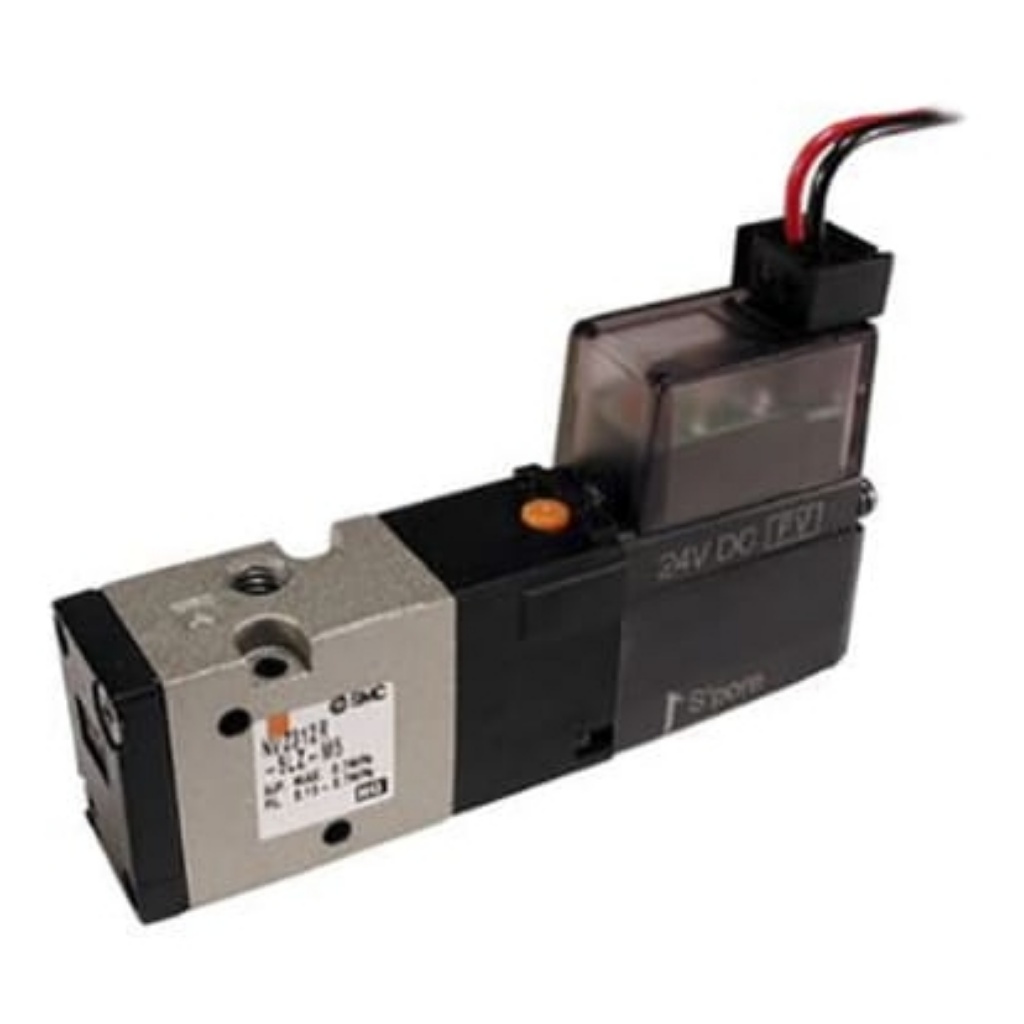

Picture of Pneumatic Solenoid Valve - Solenoid R 1/8 VZ5000 Series 24V dc, SMC, VZ5120-5MNZ-01-Q

Pneumatic Solenoid Valve - Solenoid R 1/8 VZ5000 Series 24V dc, SMC, VZ5120-5MNZ-01-Q

VZ5000 Solenoid Valves

5 Port, body ported solenoid valves from SMC’s V5000 series for inline mounting. Suitable for use with cylinders up to a bore of 50mm, the VZ5000 is compact in size with a width of just 15mm and energy efficient with a low power consumption of just 1.8W DC. Fitted with non-locking push type manual override.

SMC SY & VZ Series

These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
Manufacturer: SMC
SKU: VZ5120-5MNZ-01-Q
$253.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadR 1/8
Actuation TypeSolenoid
Manufacturer SeriesVZ5000
Mounting StyleBase Mount
Solenoid Voltage24V dc
Number of Ports5
Body MaterialDie Cast Aluminium
Solenoid Power Consumption1.8W
Minimum Operating Pressure0.15MPa
Maximum Operating Pressure0.7 MPa
Minimum Operating Temperature-10°C
Configuration2-Position Single
Number of Positions2
Maximum Operating Temperature+50°C
Thread Size1/8in
Special FeaturesLow Power Consumption, Compact Size
Thread StandardR
