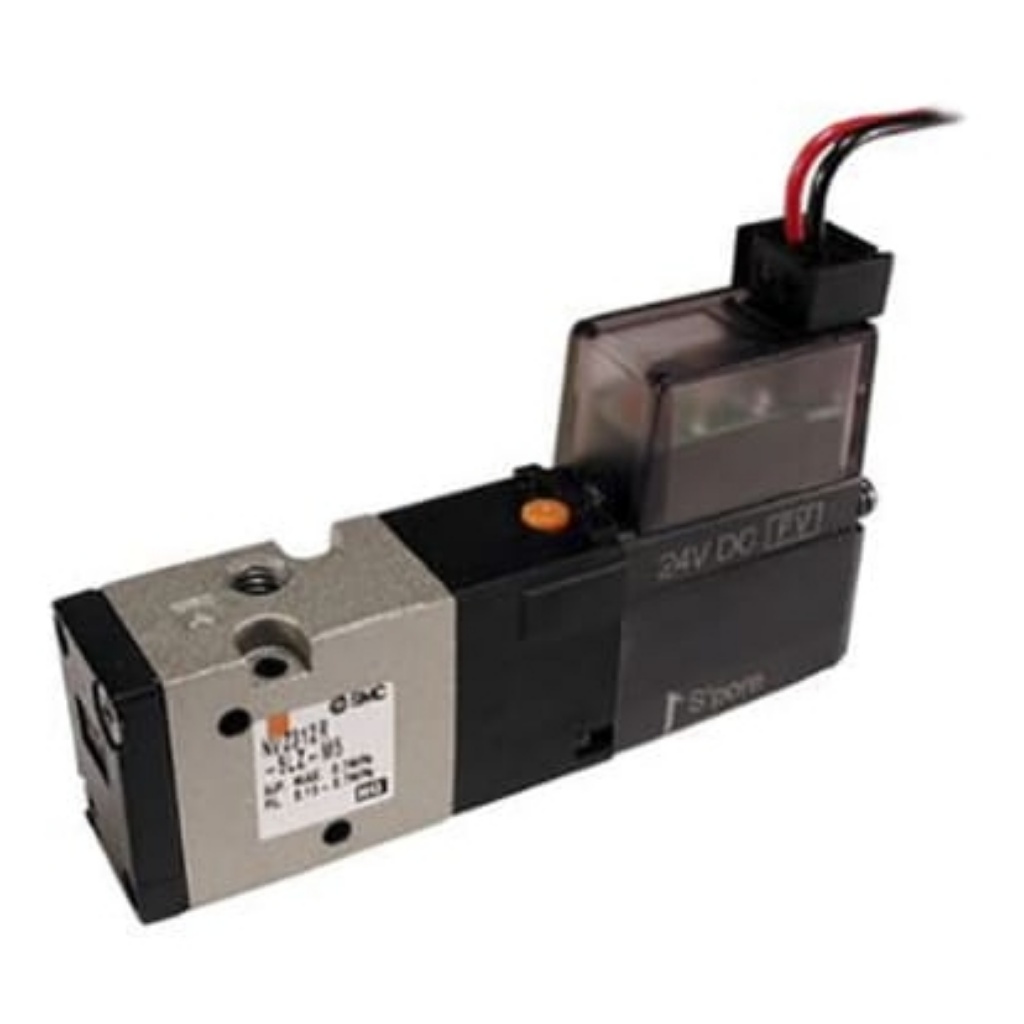

Picture of Pneumatic Solenoid Valve - Solenoid M5 x 0.8 VZ3000 Series 24V dc, SMC, VZ3220-5MNZ-M5-Q

Pneumatic Solenoid Valve - Solenoid M5 x 0.8 VZ3000 Series 24V dc, SMC, VZ3220-5MNZ-M5-Q

VZ3000 Solenoid Valves

5 Port, body ported solenoid valves from SMC’s VZ3000 series for inline mounting. Suitable for use with cylinders up to a bore of 40mm, the VZ3000 is compact in size with a width of just 15mm and energy efficient with a low power consumption of just 1.8W DC. Fitted with non-locking push type manual override.

SMC SY & VZ Series

These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
Manufacturer: SMC
SKU: VZ3220-5MNZ-M5-Q
$307.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadM5 x 0.8
Actuation TypeSolenoid
Manufacturer SeriesVZ3000
Mounting StyleBase Mount
Solenoid Voltage24V dc
Number of Ports5
Body MaterialDie Cast Aluminium
Solenoid Power Consumption1.8W
Minimum Operating Pressure0.1MPa
Number of Positions2
Maximum Operating Pressure0.7 MPa
Maximum Operating Temperature+50°C
Configuration2-Position Double
Minimum Operating Temperature-10°C
Thread StandardMetric
Special FeaturesCompact Size, Low Power Consumption
