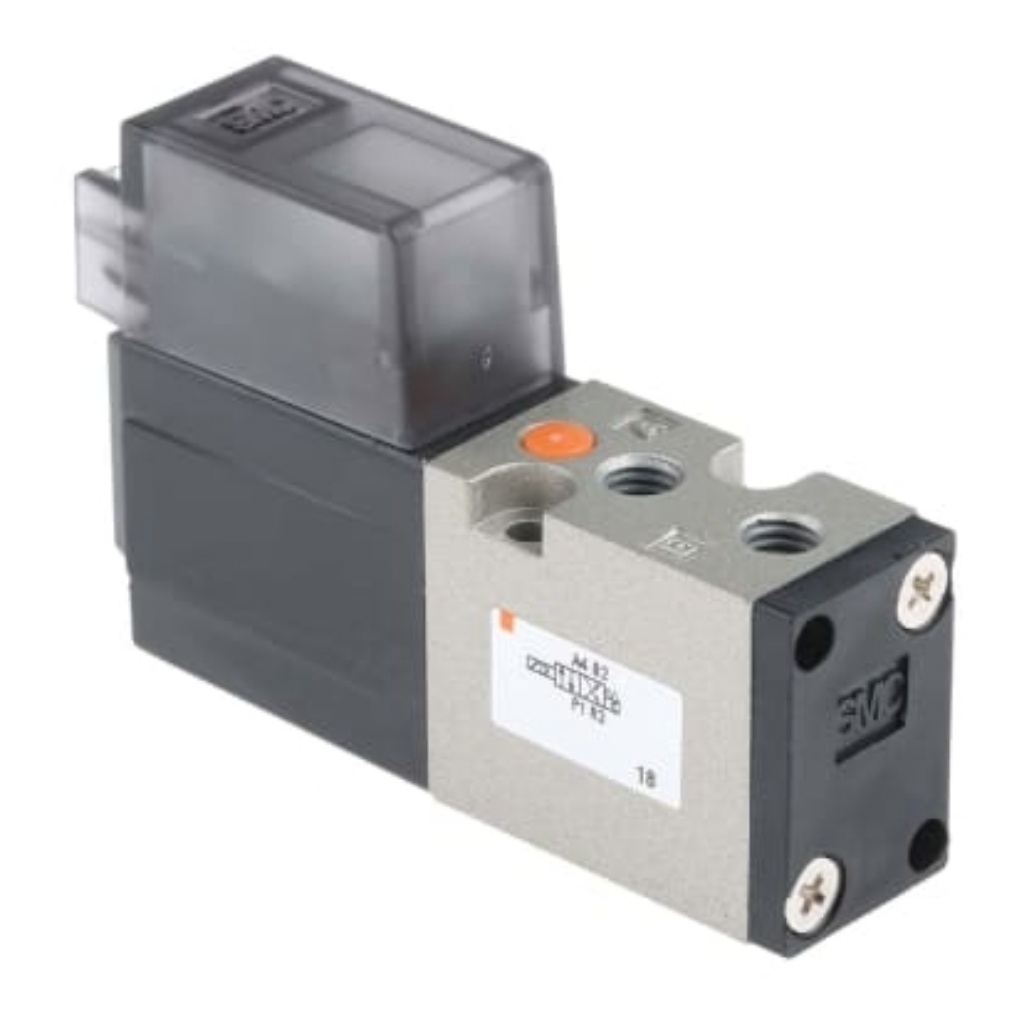

Pneumatic Solenoid Valve - Pilot/Pilot Metric M5 VZ1000 Series 24V dc, SMC, VZ1120-5MOZ-M5-Q

SMC Solenoid Valve

The SMC VZ1000 series 4/2 port body ported solenoid valve has a metric M5 X 0.8 connection and operating pressure ranging between 0.15MPA and 0.7MPa. It is suitable for use with cylinders up to a bore of 16mm. This valve is compact, have a response time of fewer than 15 milliseconds and low energy consumption of just 1.8W.
SMC SY and VZ series
These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a non-locking manual override.

Features and Benefits

Dustproof enclosure
Non locking push type manual override
Operating temperature ranging between -10°C and 50°C
Unrestricted mounting orientation
