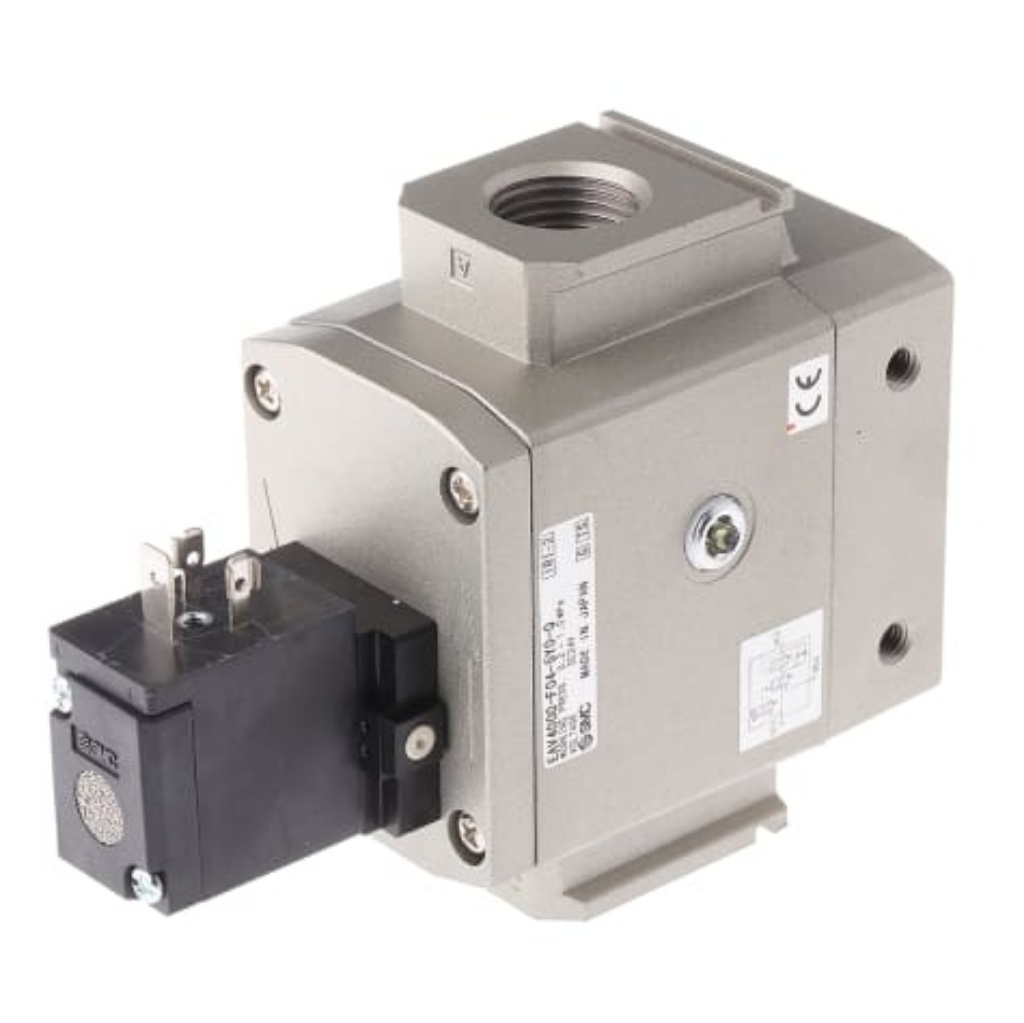

Pneumatic Solenoid Valve - G 1/2 EAV4000 Series 24V dc, SMC, EAV4000-F04-5YO-Q

SMC Pneumatic Soft Start & Dump Valve

The SMC EAV4000 series pneumatic soft start-up valve has a supply voltage of 24VDC. This valve has a 1/2in G port connection. This valve gradually increases pressure on system start-up and exhausts air rapidly when the system is shut down. Air supply and exhaust can be manually operated and can be locked in the exhaust position.

Features and Benefits

Compatible with SMC modular series FRL
Type Y DIN terminal
Maximum working pressure is 15bar
Operating pressure ranges between 0.2MPa and 1MPa
Operating temperature ranges between 0°C and 60°C
Solenoid power consumption is 1.8W
Standalone mount

Certifications

IP65 rated
