A pneumatic soft-start valve allows the downstream pressure in a pneumatic system to rise gradually. These valves help protect cylinders, actuators, and other pneumatic components from potential damage caused by sudden pressure surges. Pneumatic Resources offers a wide selection of high-quality valves from the renowned brand, SMC.
Why Are Pneumatic Soft-Start Valves Important?
Industrial pneumatic systems can be complex, often featuring numerous air cylinders and actuators operating at different speeds and times. For maintenance or repair work, all compressed air must be fully exhausted from machinery, airlines, valves, and cylinders to ensure engineer safety.
The industrial air mains typically operate at pressures of 100 psi or higher. It is crucial that this high-pressure air is not introduced abruptly. Allowing full volume and pressure immediately could cause serious, costly damage.
How Does a Pneumatic Soft-Start Valve Work?
Soft-start valves function by gradually opening the airflow, slowly admitting a controlled amount of compressed air into the system. This gradual pressure increase ensures that actuators reach their full operating pressure safely. Once the system reaches a set threshold pressure, the valve opens fully to allow normal full-pressure operation.
Our soft-start valves come in various specifications, including different body materials, flow rates, threaded inlet port sizes, and pressure ratings, making them suitable for a wide range of pneumatic control and automation applications.

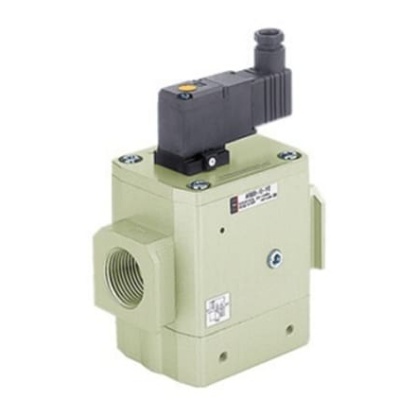

The SMC AV3000 series soft start-up valve gradually increases supply pressure during start up and rapidly exhausts system air when the supply air is shut off. Air supply and exhaust can be manually operated, and can be locked in the exhaust position. It has port size of G 3/8 threading.
Temperature range 0°C to +60°C
Compatible with SMC modular series FRL
Maximum working pressure is 10 bar
Proof pressure rating of 15 bar
Low power consumption
The SMC valve is a soft start-up valve that gradually increases the supply pressure during start-up and rapidly exhausts the system air when the supply air is shut off. It is designed with a large effective area and a manual supply/exhaust function. The valve has low power consumption and is modular with F.R.L. combinations. With its soft start-up functionality, it provides controlled and efficient operation, making it ideal for various pneumatic automation applications.
Soft start-up valve gradually increases supply pressure
Rapidly exhausts system air when supply air is shut off
Large effective area for efficient operation
Manual supply/exhaust function for control
Low power consumption for energy efficiency
Modular with F.R.L. combinations for easy integration
Provides controlled and efficient operation

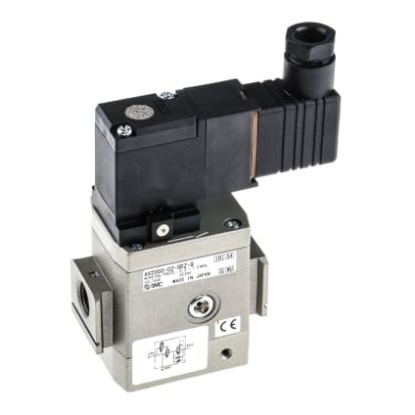

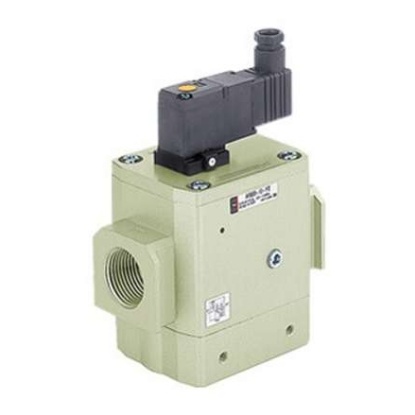

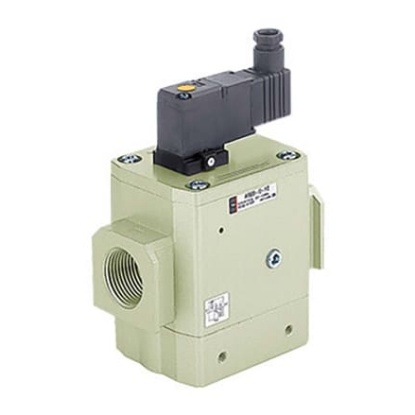

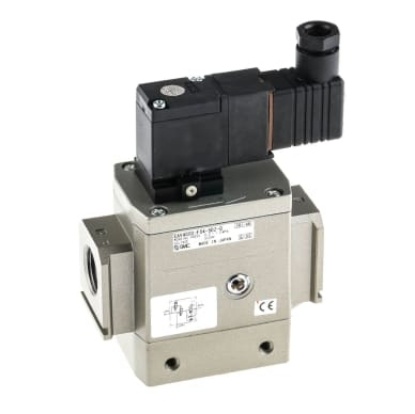

The SMC Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Operating pressure range 0.2 - 1MPa
Coil rated voltage 12, 24VDC
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation -15% to +10% of rated voltage
Ambient & fluid temperature 0 to 60°C
Soft Start & Dump Valve
Pneumatic start-up valves gradually increase pressure on system start-up and exhaust air rapidly when the system is shut down. Air supply and exhaust can be manually operated, and can be locked in the exhaust position.
Combined soft start and dump spring return valve
Temperature range 0°C to +60°C
Compatible with SMC modular series FRL
Maximum working pressure: 10 bar
Proof pressure rating:15 bar
Gauge port sizes from G 1/4 to G 1/2
Piston and slide material NBR
Low power consumption solenoid - 24Vdc @ 1.8W
Large CV factor
Note
When using the dump valve facility, it is recommended that a silencer is fitted to the relieving port.
Operating pressure range: 0.2 - 1MPa
Coil rated voltage: 12, 24VDC,
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation:
-15% to +10% of rated voltage
Ambient & fluid temperature: 0 to 60°C
Electrical entry: grommet, type D DIN connector,type Y DIN connector
The SMC Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Operating pressure range 0.2 - 1MPa
Coil rated voltage 12, 24VDC
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation -15% to +10% of rated voltage
Ambient & fluid temperature 0 to 60°C
The SMC Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Operating pressure range 0.2 - 1MPa
Coil rated voltage 12, 24VDC
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation -15% to +10% of rated voltage
Ambient & fluid temperature 0 to 60°C
The SMC Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Operating pressure range 0.2 - 1MPa
Coil rated voltage 12, 24VDC
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation -15% to +10% of rated voltage
Ambient & fluid temperature 0 to 60°C
Soft Start & Dump Valve
Pneumatic start-up valves gradually increase pressure on system start-up and exhaust air rapidly when the system is shut down. Air supply and exhaust can be manually operated, and can be locked in the exhaust position.
Combined soft start and dump spring return valve
Temperature range 0°C to +60°C
Compatible with SMC modular series FRL
Maximum working pressure: 10 bar
Proof pressure rating:15 bar
Gauge port sizes from G 1/4 to G 1/2
Piston and slide material NBR
Low power consumption solenoid - 24Vdc @ 1.8W
Large CV factor
Note
When using the dump valve facility, it is recommended that a silencer is fitted to the relieving port.
