Pneumatic Separators

The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle Nominal filtration rating 0.3 μm Rated flow from 300 to 12000 l/min (ANR) Filter element service indicator option

The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle Rated flow(ANR) 1500 Port size 3/8, 1/2 Mass 0.9 kg

The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle Particulate filtration, oil mist separation Modular connection capable AM150C - 550C Optional element life indicator

The SMC series AMG water separator has a water removal rate 99%. Connection size 1/8 to 2. Water Separator Water removal rate 99% Rated flow from 300 to 12000 l/min (ANR) Connection size 1/8 to 2 N.C. or N.O. auto drain option

The SMC series AMG water separator has a water removal rate 99%. Connection size 1/8 to 2. Water Separator Water removal rate 99% Rated flow from 300 to 12000 l/min (ANR) Connection size 1/8 to 2 N.C. or N.O. auto drain option

Modular Mist Separator AFM20 - AFM40 Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle. Lightweight Interchangeable for mounting Note Transparent bowl is for body size 30 and over Filters, Lubricators and Separators High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.

Modular Mist Separator AFM20 - AFM40 Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle. Lightweight Interchangeable for mounting Note Transparent bowl is for body size 30 and over Filters, Lubricators and Separators High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.

Series AMJ is effective for removing water droplets from the air sucked into vacuum pumps and ejectors. Over 90% of droplets can be removed through the use of a special water droplet removing element. The provision of a drain cock makes it possible to discharge the drain manually after breaking the vacuum. Even when the element is saturated with water, there is almost no drop in pressure (increase in resistance).

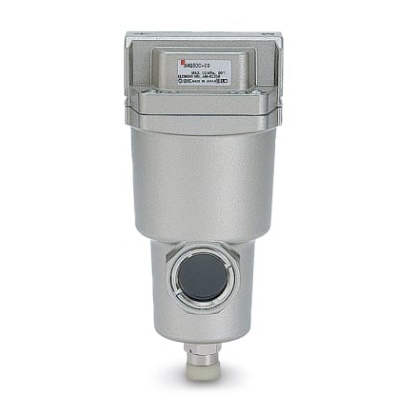

The SMC micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying, cleaning pneumatic measurement in Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline

Modular Mist Separator AFM20 - AFM40 Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle. Lightweight Interchangeable for mounting Note Transparent bowl is for body size 30 and over Filters, Lubricators and Separators High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.

Modular Mist Separator AFM20 - AFM40 Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle. Lightweight Interchangeable for mounting Note Transparent bowl is for body size 30 and over Filters, Lubricators and Separators High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.

The SMC water separator can remove water droplets in compressed air. Use this product in cases where water must be avoided, but not so dry as when an air dryer is used. Through the adoption of an element that is exclusively used for removing water droplet Max. operating pressure 1.0 Map Glass fibre material
