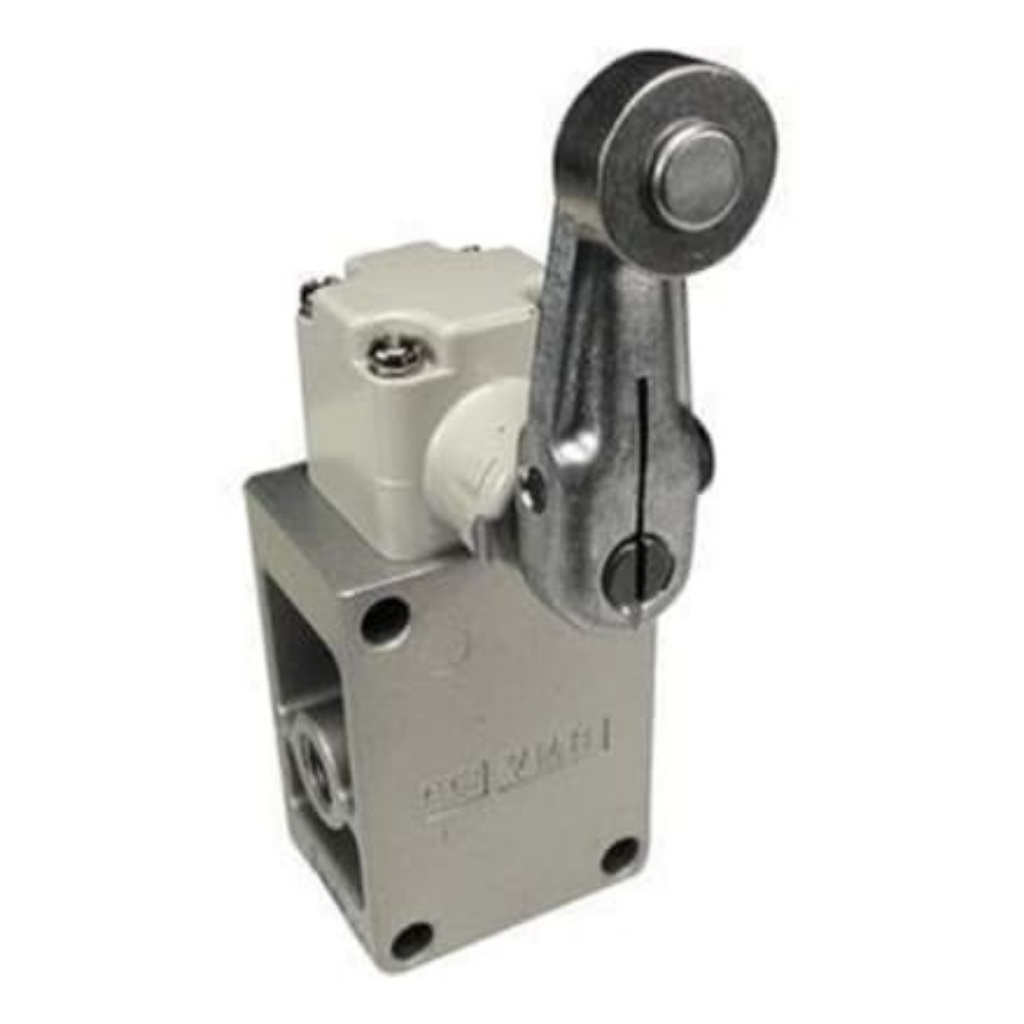

Picture of Pneumatic Relay Mechanical Valve VM Series, Rc 1/8, R 1/8, III B, SMC, VM830-01-13

Pneumatic Relay Mechanical Valve VM Series, Rc 1/8, R 1/8, III B, SMC, VM830-01-13

The SMC 800 series, 3 port mechanical valve has Rc thread and 13 actuator type.

Fluid air
Operating pressure -100kPa to 1.0MPa
Effective area (Cv) 6mm 2 (0.33)
Ambient and fluid temperature -5° to 60°C (no freezing)
Port size (nominal size) Rc(PT) 1/8 (6A)
Manufacturer: SMC
SKU: VM830-01-13
$350.24
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadRc 1/8
FunctionPneumatic Relay
Thread SizeR 1/8
Thread StandardRc
Manufacturer SeriesVM
Maximum Operating Pressure8bar
Minimum Operating Temperature-5°C
Maximum Operating Temperature+50°C
Model Number pIII B
