Pneumatic Regulators

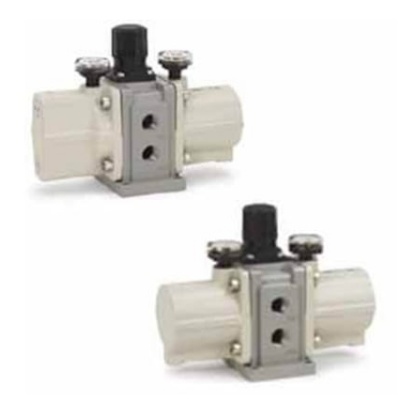

The SMC VBA series booster regulator has 11A body size. It has Rc thread type. Service life increased Noise reduced Condensation reduced Reliability improved For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

The SMC AR Regulator offer various pressure range settings to accommodate most applications. The locking adjustment knob prevents accidental setting changes. The modular design of the device connects with other SMC air preparation equipment. Improved relief sensitivity Ozone resistant rubber material knob Cost effective

The SMC AR series is modular type regulator. It has 1MPa maximum pressure. Applicable fluid is air ambient temperature is -5 to 60 °C

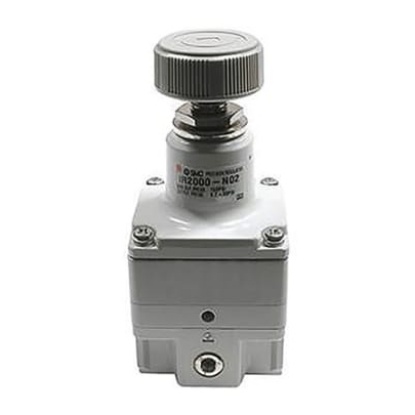

Precision IR Series Air requirements; Dry, filtered to 0.3μm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series) Weight 300g Available with / without mounting brackets Note See separate product range for mounting brackets and accessories Caution (Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

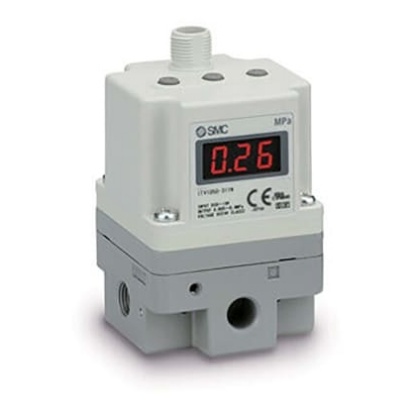

ITV series Electro-pneumatic pressure regulator range from SMC. ITV series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal. Near zero air consumption at set pressure Temperature range +5°C to +50°C Analogue output 1 to 5 Vdc LED three digit pressure display IP65 rated enclosure Energy consumption of 4w or less Zero and span can be set without supply pressure present Without cable Note

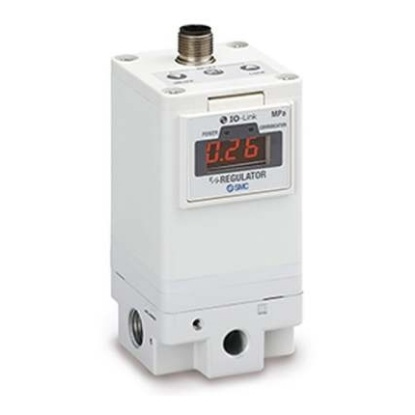

The SMC electro-pneumatic and electronic vacuum regulators is designed with a lightweight, easy-to-read LED display, control air or vacuum pressure steplessly in proportion to an electric signal. Controls air pressure in proportion to an electric signal RoHS compliant

Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option

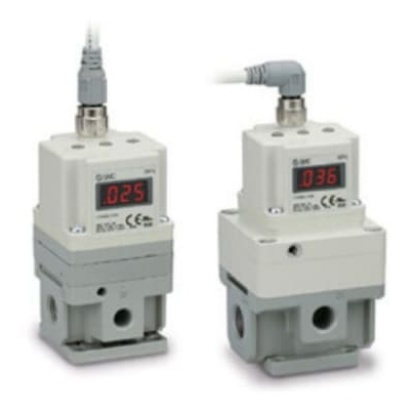

The SMC electro pneumatic regulator is use for step less control of air pressure in proportion to electrical signal. It has two type of cable connector. Compact and light weight High stability Built-in One-touch fitting

Precision IR Series Air requirements; Dry, filtered to 0.3μm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series) Weight 300g Available with / without mounting brackets Note See separate product range for mounting brackets and accessories Caution (Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

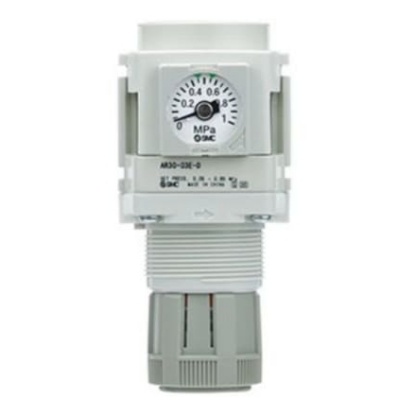

The SMC AR-D series of modular pressure regulators are designed for use with AC20-D series of FRLs. This regulator comes without a backflow function, and it has G type pipe threads. The port size of this regulator is 1/8 in and it has a square embedded type pressure gauge (with limit indicator). Set pressure for this regulator is 0.02 to 0.2 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC AR-D series of modular pressure regulators are designed for use with AC20-D series of FRLs. This regulator comes without a backflow function, and it has G type pipe threads. The port size of this regulator is 1/8 in and it has a round type pressure gauge (with limit indicator). Set pressure for this regulator is 0.02 to 0.2 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

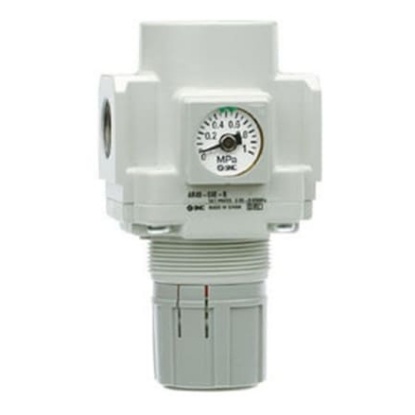

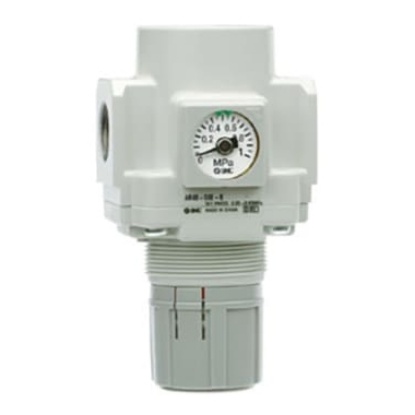

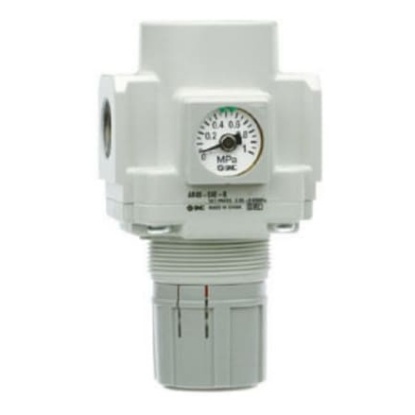

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.
