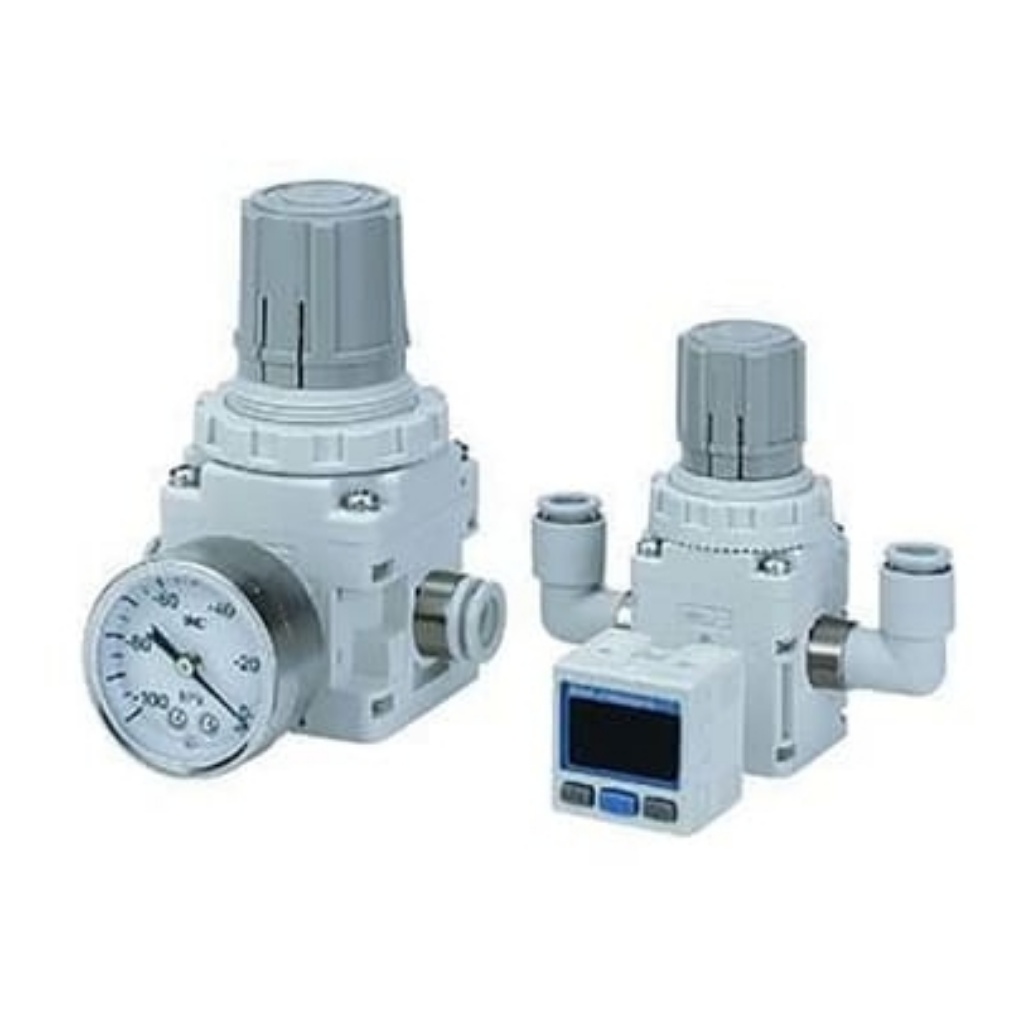

Picture of Pneumatic Regulator - -100kPa to -1.3kPa, 10mm, 100kPa max. input, SMC, IRV20-C10

Pneumatic Regulator - -100kPa to -1.3kPa, 10mm, 100kPa max. input, SMC, IRV20-C10

Standarized single piping
Maximum flow rate is now more than twice the flow rate of the existing model: 140 l/min (ANR), 240 l/min (ANR)
20% Mass reduction
Integrated one-touch fitting is now standard
Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip
2 possible mounting orientations for the pressure gauge or digital pressure switch
Multiple mounting angles
Expanding mounting variations
Manufacturer: SMC
SKU: IRV20-C10
$165.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Maximum Outlet Pressure-1.3kPa
Minimum Outlet Pressure-100kPa
Maximum Input Pressure100kPa
Manufacturer SeriesIRV20
Pressure Gauge Port SizeRc 1/8
Port Connection Thread Size10mm
Pressure Gauge Port Thread Size1/8in
Maximum Flow Rate240L/min
Port Connection Thread StandardMetric
Minimum Operating Temperature+5°C
Maximum Operating Temperature+60°C
Overall Width53mm
Overall Height103mm
Overall Dimensions72 x 53 x 103mm
Overall Length72mm
