Pneumatic Piston Rod Cylinders

The SMC compact cylinder is possible to mount small auto switches on 4 surfaces depending on the installation conditions. It improved flexibility of system design even if 2-color indication solid state auto switches are fixed at a proper operating range, Allowable lateral load Auto switch available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

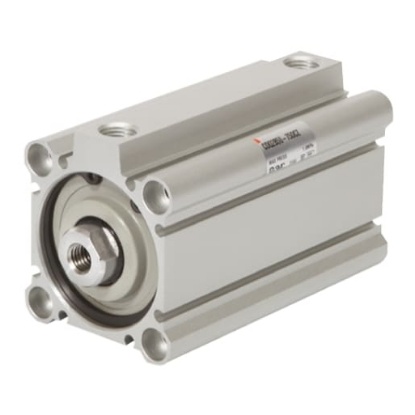

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm

The SMC series CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 40mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°. Guide rod type compact cylinder 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less

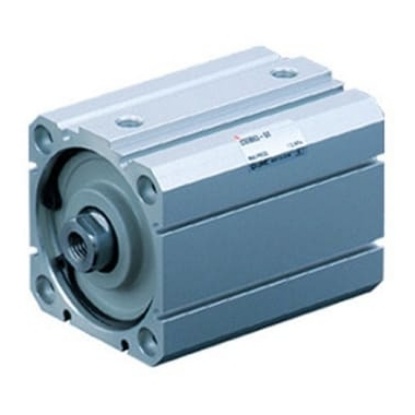

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

The SMC compact cylinder operates at an ambient temperature ranging from -10 to 60°C. Fluid air Proof pressure 1.5 MPa

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm

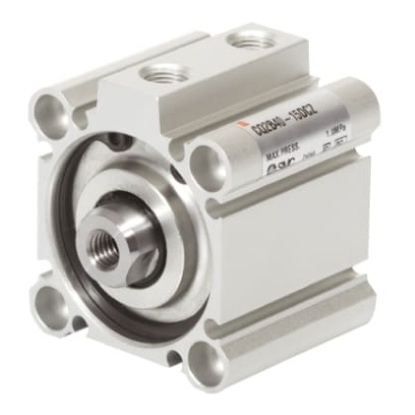

CQ2 Series Compact Cylinders Compact space saving cylinders Double acting, Single rod Wide range of options available Auto switch capable Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available
