Pneumatic Piston Rod Cylinders

The SMC single rod air cylinder is double acting and meets ISO standards. RoHS compliant Proof pressure 1.5 Mpa

The SMC series CU free mount cylinder of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard. Spring return, spring extend Space saving Auto-switch capable

The SMC cylinder is double acting and features end-of-stroke cushioning. Conforms to ISO standard Standard strokes range from 25 to 800mm

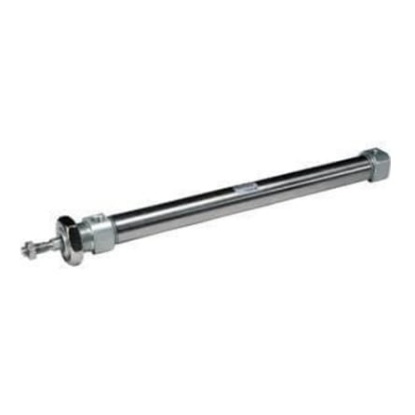

The SMC series CD85 double acting cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. Conforms to ISO 6432 and CETOP RP52P Bore sizes (mm) 8, 10, 12, 16, 20, 25 Standard strokes up to 300 mm Auto switch capable

The SMC single rod air cylinder is double acting and meets ISO standards. RoHS compliant Proof pressure 1.5 Mpa

The SMC series C85 offered double acting standard cylinder. It has a single rod. ISO 6432 Round Body Cylinder Bore sizes (mm) 8, 10, 12, 16, 20, 25 Standard strokes up to 300 mm Cylinder variations Non-rotating, direct mount, ATEX

The SMC series CQ2 offers compact cylinder, with double acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

The SMC CD85 series ISO 6432 round body cylinder has a bore sizes 8, 10, 12, 16, 20, 25mm. Standard strokes up to 300 mm. Conforms to ISO 6432 and CETOP RP52P Bore sizes (mm) 8, 10, 12, 16, 20, 25 Standard strokes up to 300 mm Auto switch capable

The SMC series CQ2 offers compact cylinder, with double acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements

The SMC Series CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. While sharing many of the outstanding features of the CQ2 series, the CQS offers standard long strokes (up to 300mm) in four bore sizes from 12 to 25mm. Reduce installation dimensions Get superior non-rotating accuracy Obtain design flexibility

The SMC single rod air cylinder is double acting and meets ISO standards. RoHS compliant Proof pressure 1.5 Mpa

The SMC series CD85 double acting cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. Conforms to ISO 6432 and CETOP RP52P Bore sizes (mm) 8, 10, 12, 16, 20, 25 Standard strokes up to 300 mm Auto switch capable
