Pneumatic Piston Rod Cylinders

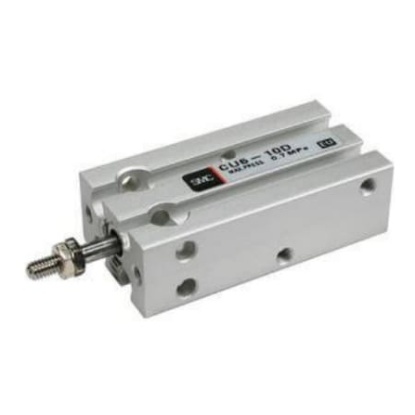

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

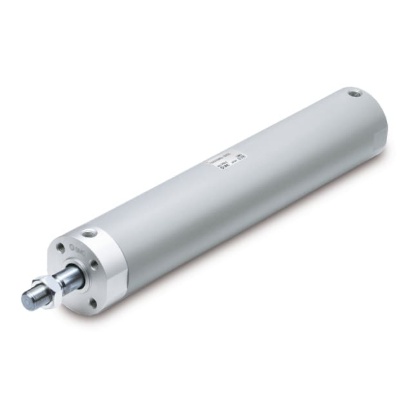

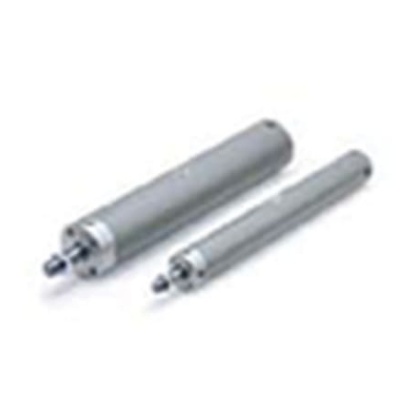

CG1 Air Cylinder The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options. Air Cylinder, Double Acting, Single Rod Built-in magnet Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa Minimum operating pressure: 0.05 MPa Cushion: Rubber bumper

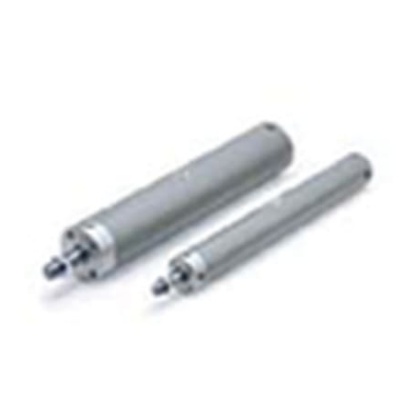

The SMC single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminium to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Female piston rod Easy fine adjustment of auto switch position Various mounting bracket options

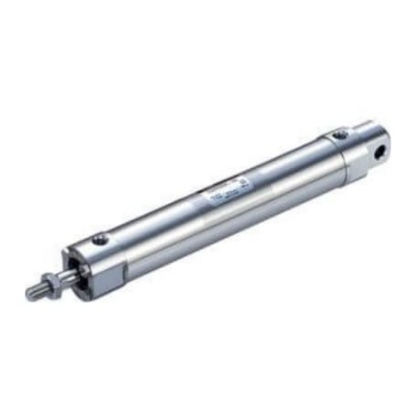

The SMC stainless steel cylinder is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. Th Special scraper prevents water from entering cylinder Bore sizes (mm) 20, 25, 32, 40, 50, 63, 80 and 100 Auto switch capable

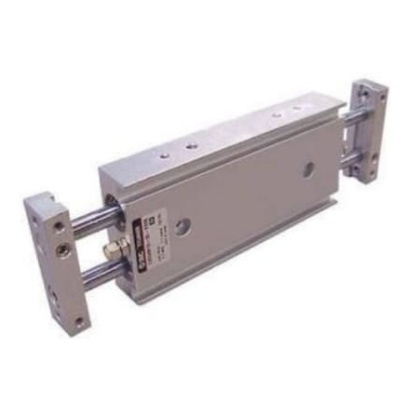

The SMC dual piston rod cylinder has ball blushing bearing . It has strokes from 10mm through 100mm depending upon bore size. Auto switch capable Deflection ± 0.03mm

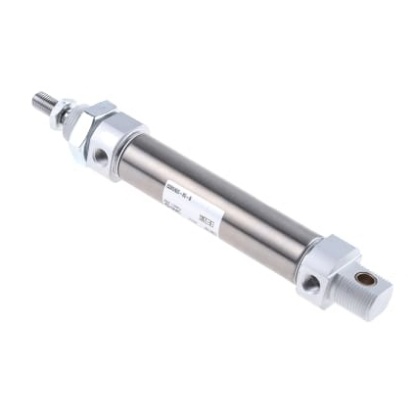

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

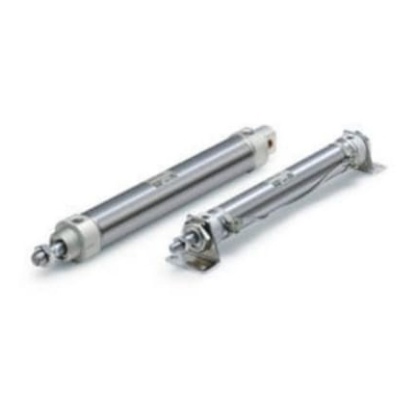

The SMC double acting, single rod, stainless steel air cylinder is compact, lightweight and offer high performance. The piston seal and rod seal design provides excellent life. Transparent auto switch bracket provides visibility of the status of the switc Easy fine adjustment of auto switch position Total length shortened with boss-cut type

The SMC double acting, single rod, stainless steel air cylinder is compact, lightweight and offer high performance. The piston seal and rod seal design provides excellent life. Transparent auto switch bracket provides visibility of the status of the switc Easy fine adjustment of auto switch position Total length shortened with boss-cut type

The SMC air cylinders offer a simple, space saving design with high dimensional accuracy, making these cylinders very easy to use. Large spanner flats on the rod and head covers greatly simplify their installation and positioning. Low friction and the sta Single acting, single rod, non-rotating Spring return or spring extend 32, 40 (mm) bore sizes Strokes up to 250 mm Auto switch capable

CG1 Air Cylinder The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options. Air Cylinder, Double Acting, Single Rod Built-in magnet Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa Minimum operating pressure: 0.05 MPa Cushion: Rubber bumper

The SMC stainless steel cylinder is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. Th Special scraper prevents water from entering cylinder Bore sizes (mm) 20, 25, 32, 40, 50, 63, 80 and 100 Auto switch capable

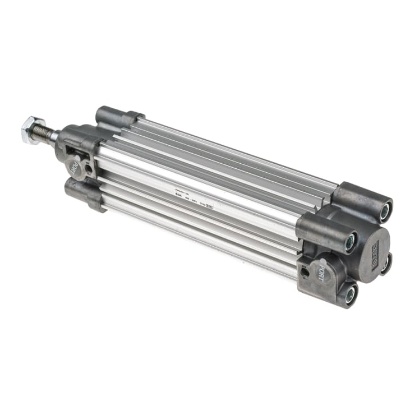

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series
