Pneumatic Piston Rod Cylinders

The SMC pin cylinder body material has been changed from brass to aluminium, achieving impressive weight reduction. The overall length of the cylinder has been reduced resulting in an extremely compact cylinder. Solid state auto-switch Longer stroke Internal rubber bumper

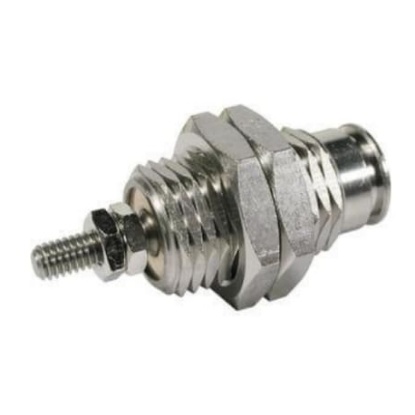

SMC CJP Miniature pin cylinders for panel mount. All cylinders are single acting with spring return. Lubrication not required Threaded rod-end style Non-cushioned Proof pressure 10.5 bar Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max) Ambient and fluid temperature 5°C to 60°C Stroke tolerance: +1.0mm Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

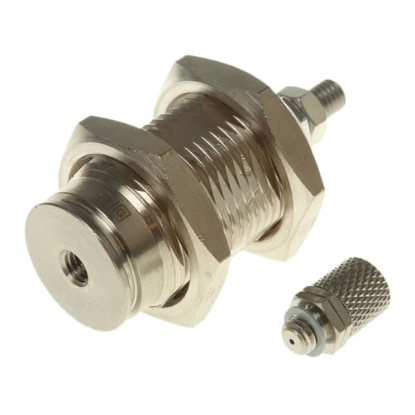

The SMC CJP series single acting pin cylinder compact design minimizes mounting space. To accommodate many design styles, the CJP is available in five mounting styles basic nose, foot, flange, clevis, and trunnion. An auto switch capable model is also ava Strokes from 5mm to 15mm available Two mounting styles available Brass body

The SMC pin cylinder body material has been changed from brass to aluminium, achieving impressive weight reduction. The overall length of the cylinder has been reduced resulting in an extremely compact cylinder. Solid state auto-switch Longer stroke Internal rubber bumper

SMC CJP Miniature pin cylinders for panel mount. All cylinders are single acting with spring return. Lubrication not required Threaded rod-end style Non-cushioned Proof pressure 10.5 bar Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max) Ambient and fluid temperature 5°C to 60°C Stroke tolerance: +1.0mm Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

The SMC slide units offer highly accurate positioning and smooth operation with large forces. Its compact design and low profile accommodate minimum space requirements to meet many design applications. Through- holes in the housing provide for direct load mounting Optional auto-switch

The SMC double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminium to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Easy fine adjustment of auto switch position No trunnion mounting female thread Various mounting bracket options

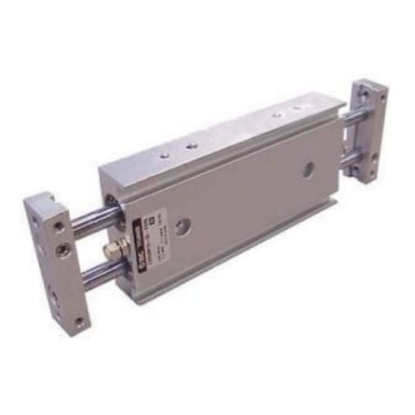

The SMC dual piston rod cylinder with ball bearing slide. It has strokes from 10mm through 100mm depending upon bore size. 3-side work piece mounting Variety of switches and a variety of lead wire lengths

The SMC dual piston rod cylinder with ball bearing slide. It has strokes from 10mm through 100mm depending upon bore size. 3-side work piece mounting Variety of switches and a variety of lead wire lengths

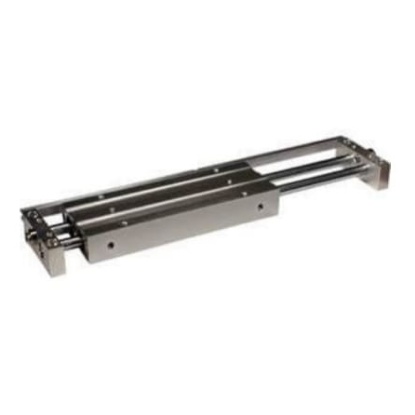

The SMC dual piston rod cylinder has ball blushing bearing . It has strokes from 10mm through 100mm depending upon bore size. Auto switch capable Deflection ± 0.03mm

The SMC pin cylinder body material has been changed from brass to aluminium, achieving impressive weight reduction. The overall length of the cylinder has been reduced resulting in an extremely compact cylinder. One-touch fitting can be connected. 2 auto Double acting Single rod Solid state auto-switch Longer stroke Internal rubber bumper

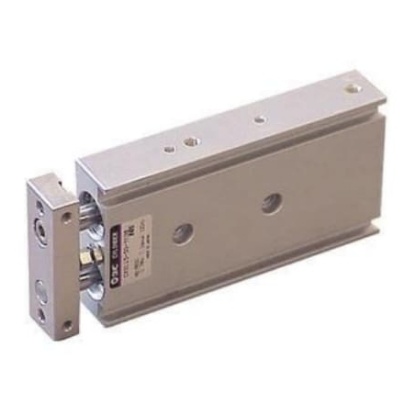

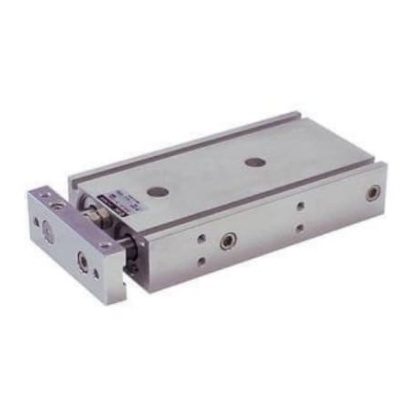

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available
