Pneumatic Piston Rod Cylinders

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

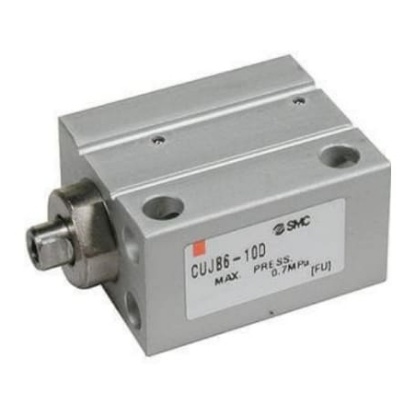

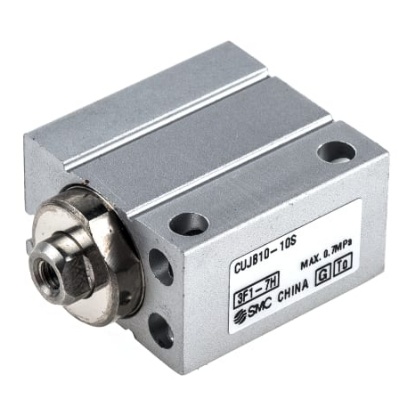

CJU Series Mini Free Mount Cylinder Miniature free mount cylinder Miniature Body Free mount design allows installation from 4 directions Concentrates piping and wiring on one side Easy seal replacement Short pitch mounting is possible

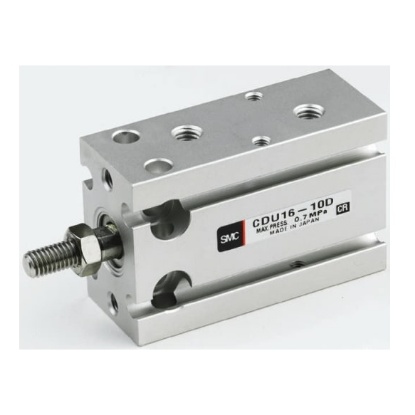

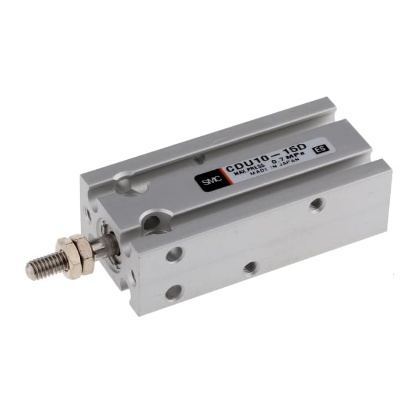

CU Series Cylinders The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

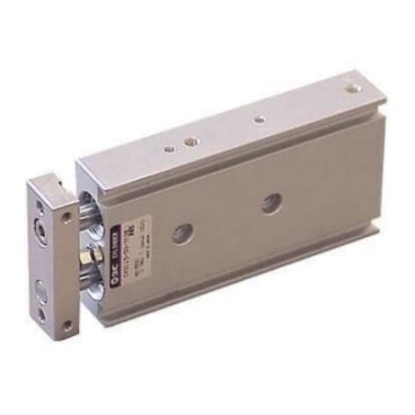

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available

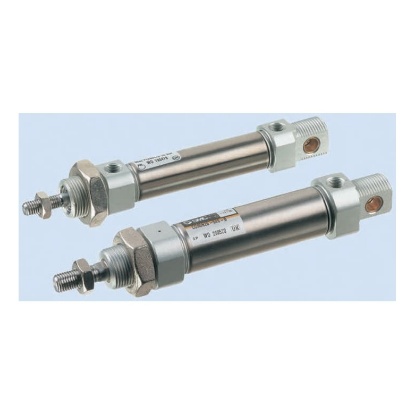

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

The SMC CJ2 series air cylinder has 10 mm of bore size. The cylinder's rod cover is made from aluminium alloy. It has maximum operating pressure of 0.7 Mpa. Fluid used is air Rubber bumper cushion Piston speed 50 to 750 mm/s

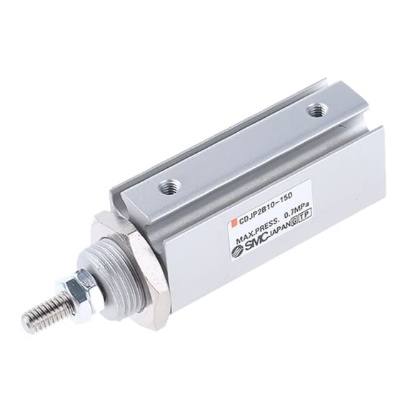

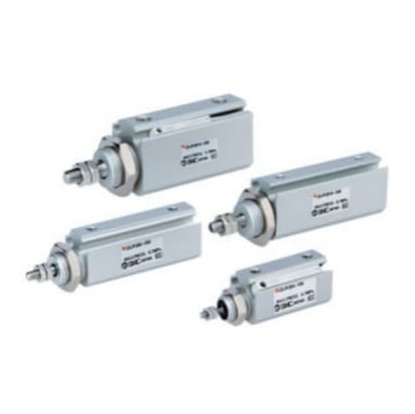

The SMC pin cylinder body material has been changed from brass to aluminium, achieving impressive weight reduction. The overall length of the cylinder has been reduced resulting in an extremely compact cylinder. One-touch fitting can be connected. 2 auto Double acting Single rod Solid state auto-switch Longer stroke Internal rubber bumper

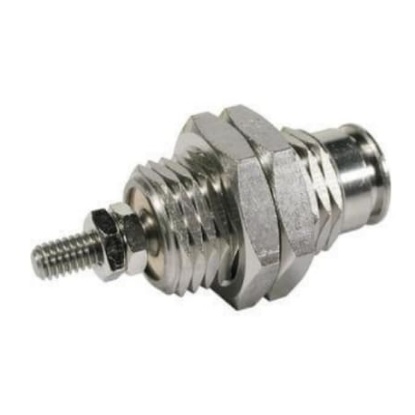

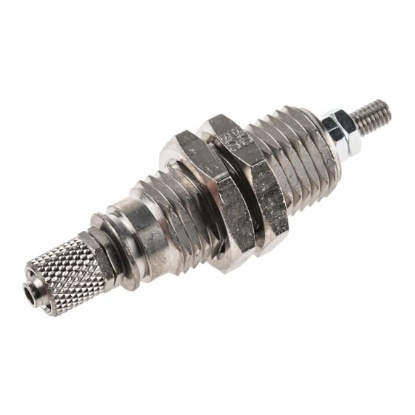

SMC CJP Miniature pin cylinders for panel mount. All cylinders are single acting with spring return. Lubrication not required Threaded rod-end style Non-cushioned Proof pressure 10.5 bar Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max) Ambient and fluid temperature 5°C to 60°C Stroke tolerance: +1.0mm Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

Cylinders Bore sizes 6, 10, 16mm Magnetic piston standard Compact design Lubrication not required Male-threaded rod end IP67 rated Proof pressure 1.05 bar Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max) Ambient and fluid temperature -10ºC to +60°C Stroke tolerance +1.0mm, -0mm Rubber bumper cushion at both ends

The SMC pin cylinder body material has been changed from brass to aluminium, achieving impressive weight reduction. The overall length of the cylinder has been reduced resulting in an extremely compact cylinder. Solid state auto-switch Longer stroke Internal rubber bumper

CU Series Cylinders The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
