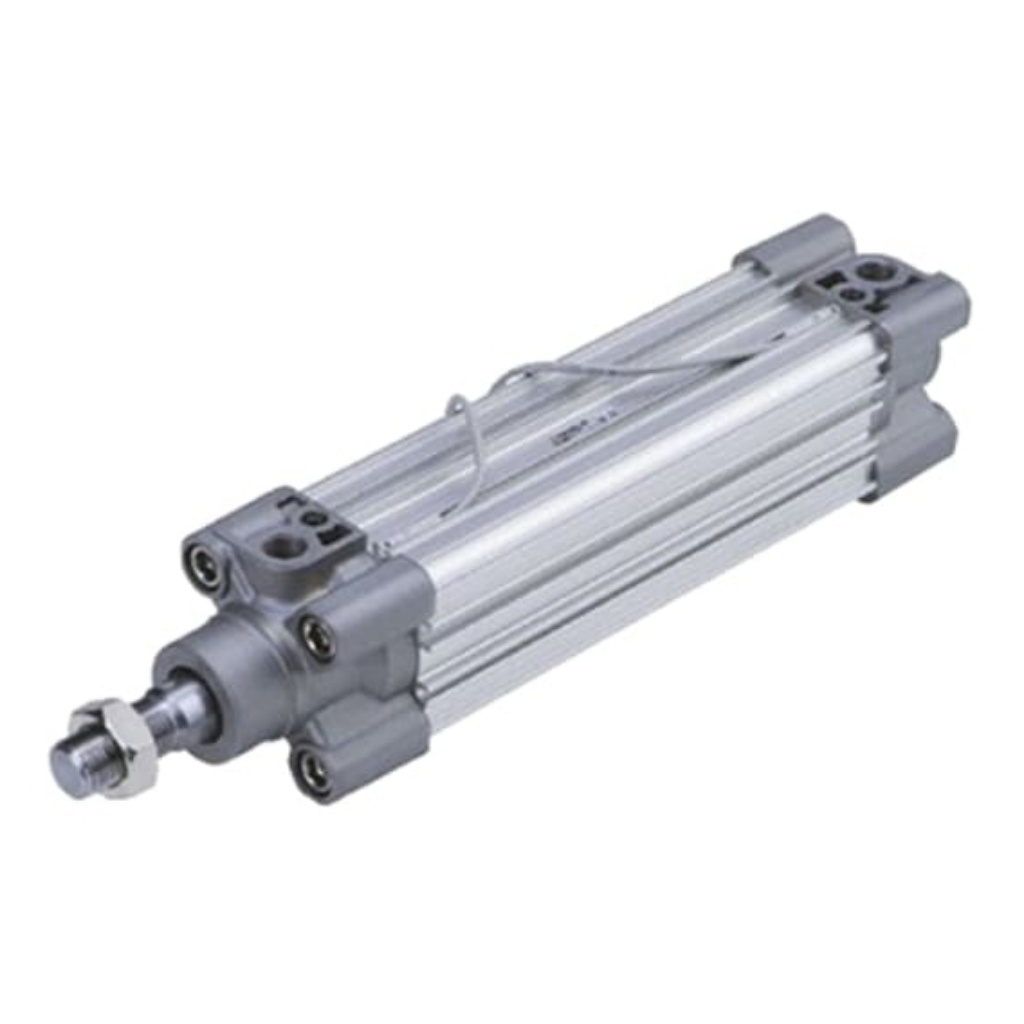

Picture of Pneumatic Piston Rod Cylinder - 80mm Bore, 25mm Stroke, CP96 Series, Double Acting, SMC, CP96SDB80-25C

Pneumatic Piston Rod Cylinder - 80mm Bore, 25mm Stroke, CP96 Series, Double Acting, SMC, CP96SDB80-25C

CP96-C Double Acting Cylinder

The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.

CP96 Series
Manufacturer: SMC
SKU: CP96SDB80-25C
$429.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke25mm
Bore80mm
ActionDouble
Manufacturer SeriesCP96
Length243mm
Cushioning TypeAir
Dimensions243 x 99 x 99mm
Width99mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height99mm
Stroke Interval Weight0.49 kg @ 50 mm Stroke
Maximum Operating Temperature+70°C
Minimum Operating Temperature-20°C
ISO Standard4414
