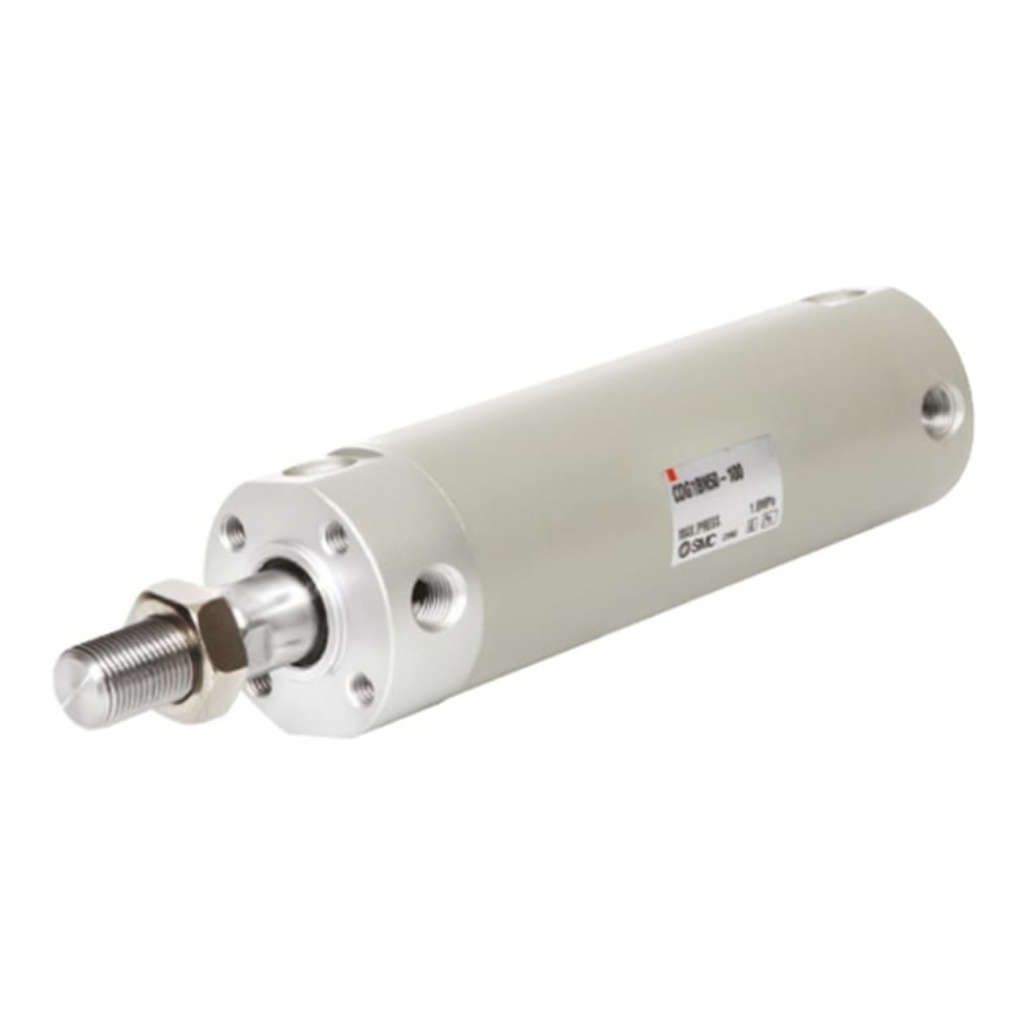

Picture of Pneumatic Piston Rod Cylinder - 80mm Bore, 150mm Stroke, CG1 Series, Double Acting, SMC, CDG1BN80-150

Pneumatic Piston Rod Cylinder - 80mm Bore, 150mm Stroke, CG1 Series, Double Acting, SMC, CDG1BN80-150

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
Manufacturer: SMC
SKU: CDG1BN80-150
$387.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke150mm
Bore80mm
ActionDouble
Manufacturer SeriesCG1
Length332mm
Cushioning TypeRubber
Dimensions80 (Dia.) x 332mm
Absolute Maximum Pressure1.5MPa
Minimum Operating Temperature-10°C
Weight2kg
Maximum Operating Temperature+60°C
Diameter80mm
