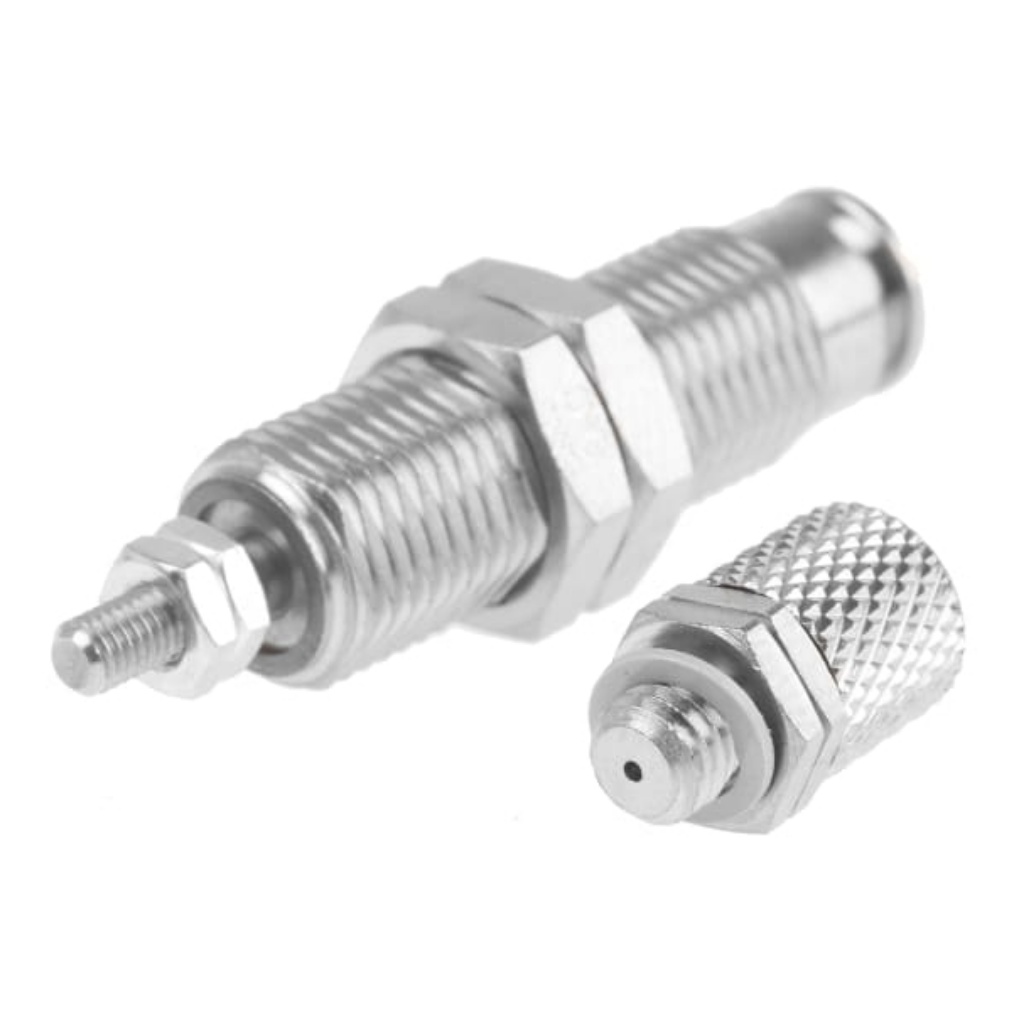

Picture of Pneumatic Piston Rod Cylinder - 6mm Bore, 15mm Stroke, CJP Series, Single Acting, SMC, CJPB6-15H6
Picture of Pneumatic Piston Rod Cylinder - 6mm Bore, 15mm Stroke, CJP Series, Single Acting, SMC, CJPB6-15H6
Picture of Pneumatic Piston Rod Cylinder - 6mm Bore, 15mm Stroke, CJP Series, Single Acting, SMC, CJPB6-15H6

Pneumatic Piston Rod Cylinder - 6mm Bore, 15mm Stroke, CJP Series, Single Acting, SMC, CJPB6-15H6

SMC CJP

Miniature pin cylinders for panel mount. All cylinders are single acting with spring return.

Lubrication not required
Threaded rod-end style
Non-cushioned
Proof pressure 10.5 bar
Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max)
Ambient and fluid temperature 5°C to 60°C
Stroke tolerance: +1.0mm

Note

Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).
Manufacturer: SMC
SKU: CJPB6-15H6
$46.08
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke15mm
Bore6mm
ActionSingle
Manufacturer SeriesCJP
Length41.5mm
Cushioning TypeNot Cushioned
Dimensions41.5 x 12 x 13.9mm
Width12mm
Maximum Operating Pressure0.7 MPa
Height13.9mm
Maximum Operating Temperature+70°C
Minimum Operating Temperature-10°C
Piston Speed50 → 500mm/s
Weight15.6g
