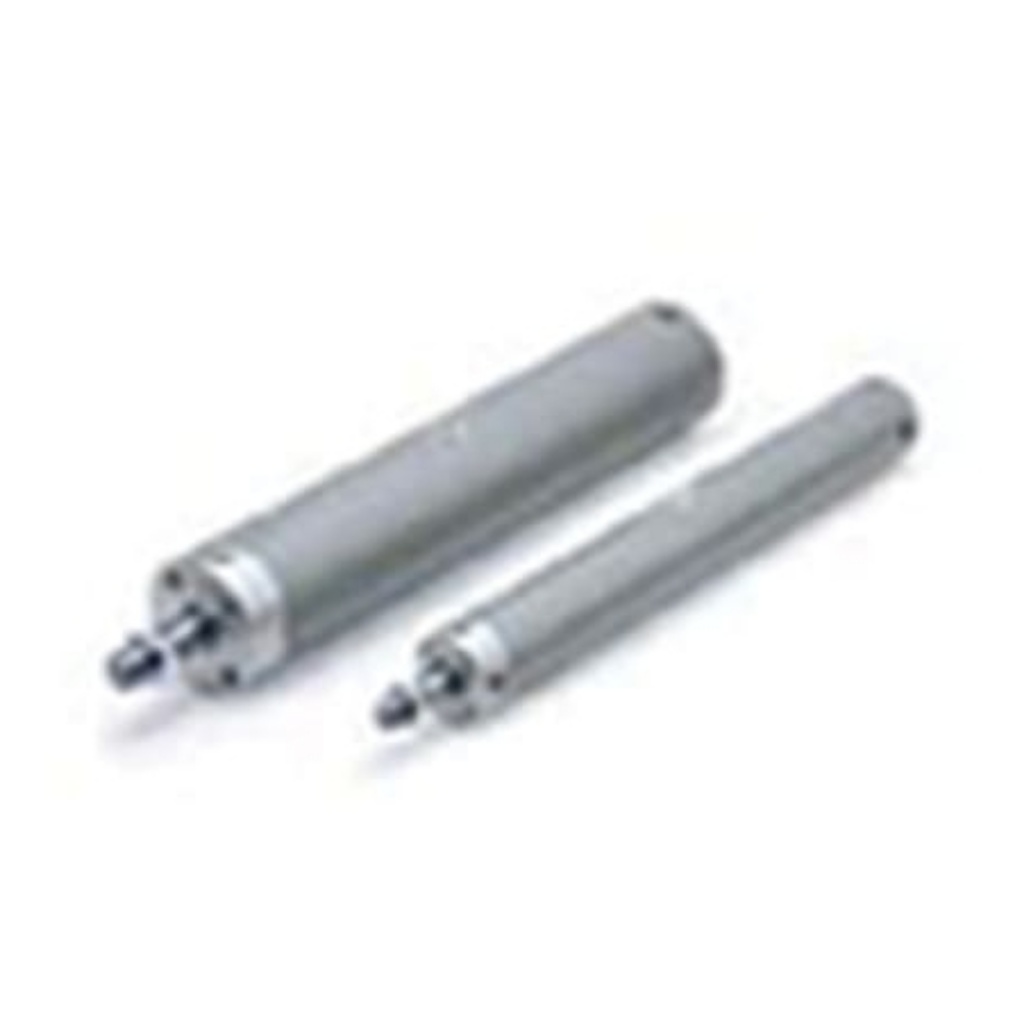

Picture of Pneumatic Piston Rod Cylinder - 63mm Bore, 200mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN63-200Z

Pneumatic Piston Rod Cylinder - 63mm Bore, 200mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN63-200Z

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Manufacturer: SMC
SKU: CDG1BN63-200Z
$382.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Manufacturer SeriesCDG1
Bore63mm
Stroke200mm
ActionDouble
Port ConnectionR 1/4
Cushioning TypeRubber Bumper
Dimensions69 (Dia.) x 350mm
Diameter69mm
Height350mm
Maximum Operating Pressure1 MPa
Absolute Maximum Pressure1.5MPa
Maximum Operating Temperature60°C
Minimum Operating Temperature-10°C
Weight2.4kg
