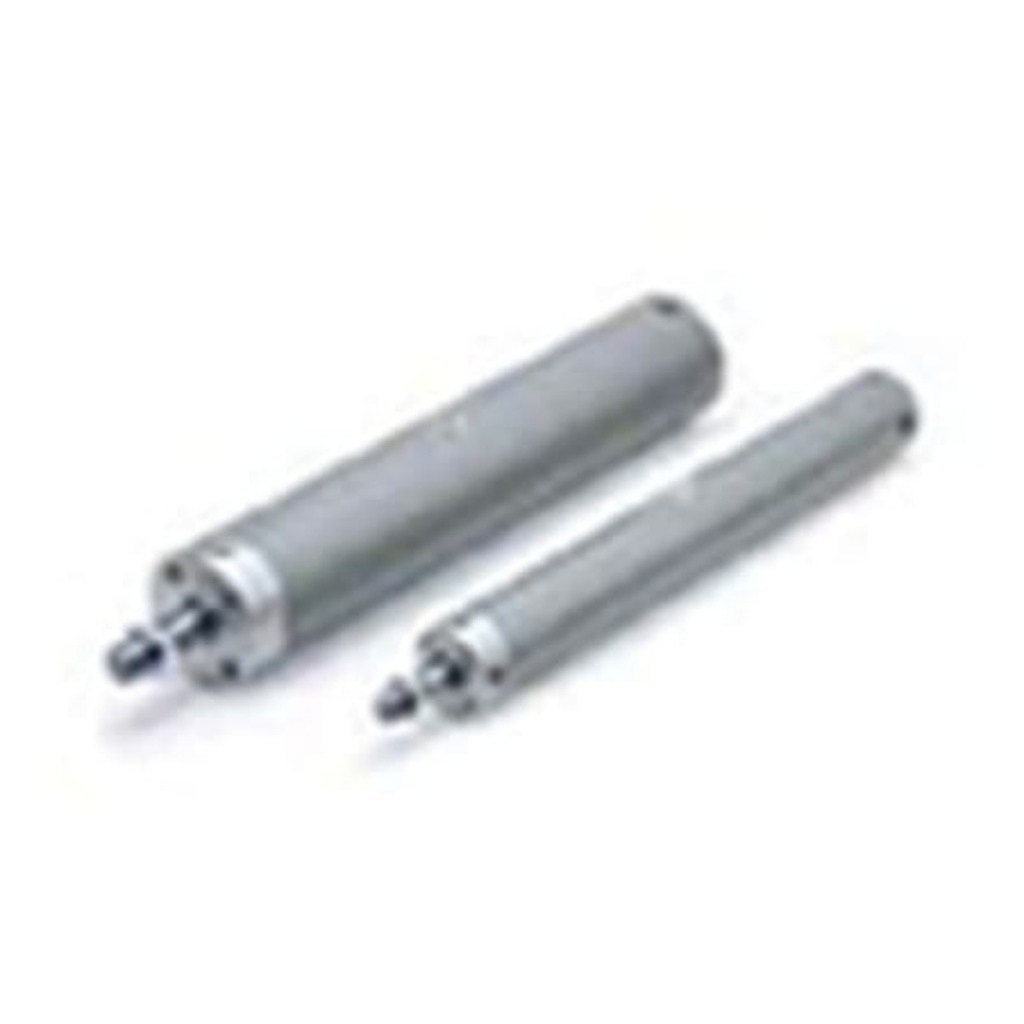

Picture of Pneumatic Piston Rod Cylinder - 50mm Bore, 50mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN50-50Z

Pneumatic Piston Rod Cylinder - 50mm Bore, 50mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN50-50Z

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
Manufacturer: SMC
SKU: CDG1BN50-50Z
$259.02
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke50mm
Bore50mm
ActionDouble
Manufacturer SeriesCDG1
Cushioning TypeRubber Bumper
Dimensions55 (Dia.) x 200mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height200mm
Weight1.8kg
Maximum Operating Temperature60°C
Diameter55mm
Minimum Operating Temperature-10°C
