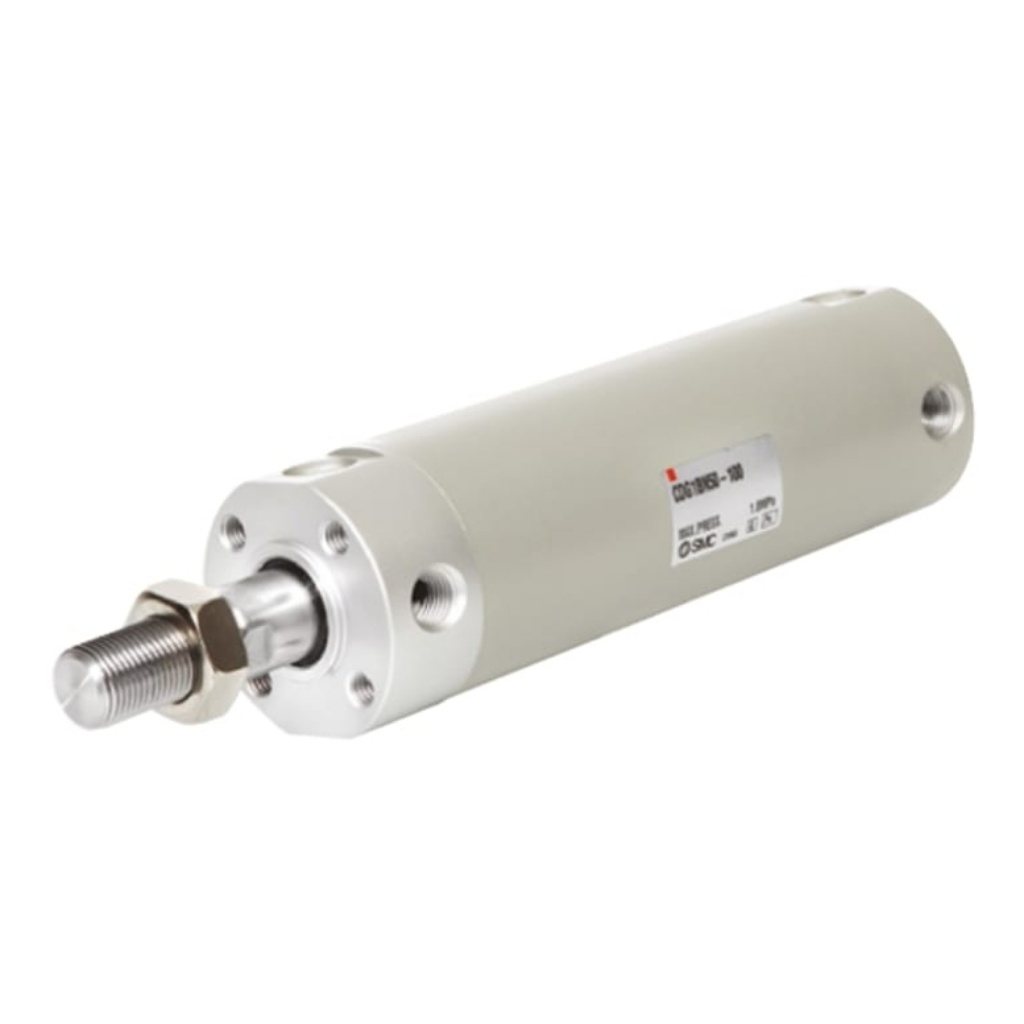

Picture of Pneumatic Piston Rod Cylinder - 50mm Bore, 250mm Stroke, CG1 Series, Double Acting, SMC, CDG1BN50-250

Pneumatic Piston Rod Cylinder - 50mm Bore, 250mm Stroke, CG1 Series, Double Acting, SMC, CDG1BN50-250

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
Manufacturer: SMC
SKU: CDG1BN50-250
$276.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke250mm
Bore50mm
ActionDouble
Manufacturer SeriesCG1
Length400mm
Cushioning TypeRubber
Dimensions55 (Dia.) x 400mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Temperature+60°C
Diameter55mm
Weight770g
Minimum Operating Temperature-10°C
