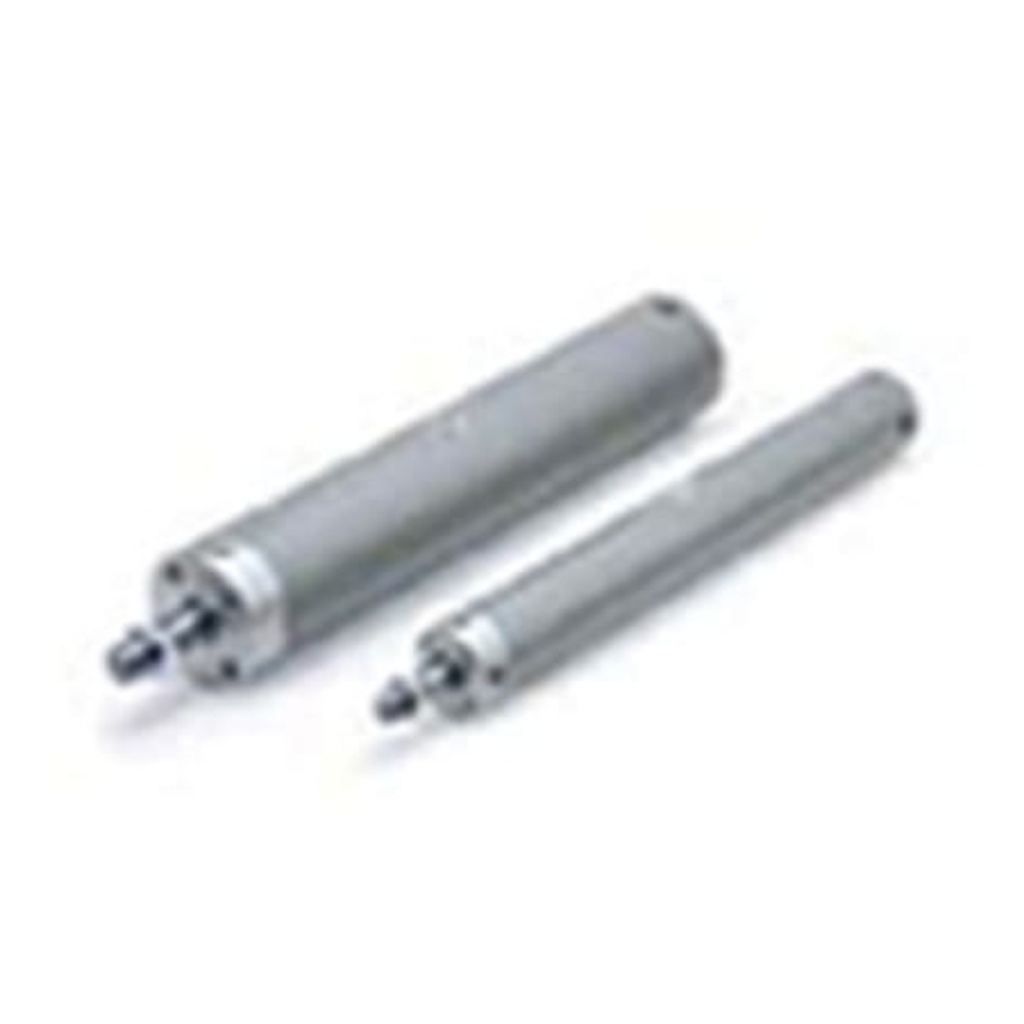

Picture of Pneumatic Piston Rod Cylinder - 50mm Bore, 100mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN50-100Z

Pneumatic Piston Rod Cylinder - 50mm Bore, 100mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN50-100Z

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Manufacturer: SMC
SKU: CDG1BN50-100Z
$281.39
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Manufacturer SeriesCDG1
Stroke100mm
Bore50mm
ActionDouble
Port ConnectionR 1/4
Cushioning TypeRubber Bumper
Dimensions55 (Dia.) x 250mm
Diameter55mm
Height250mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Minimum Operating Temperature-10°C
Maximum Operating Temperature60°C
Weight1.8kg
