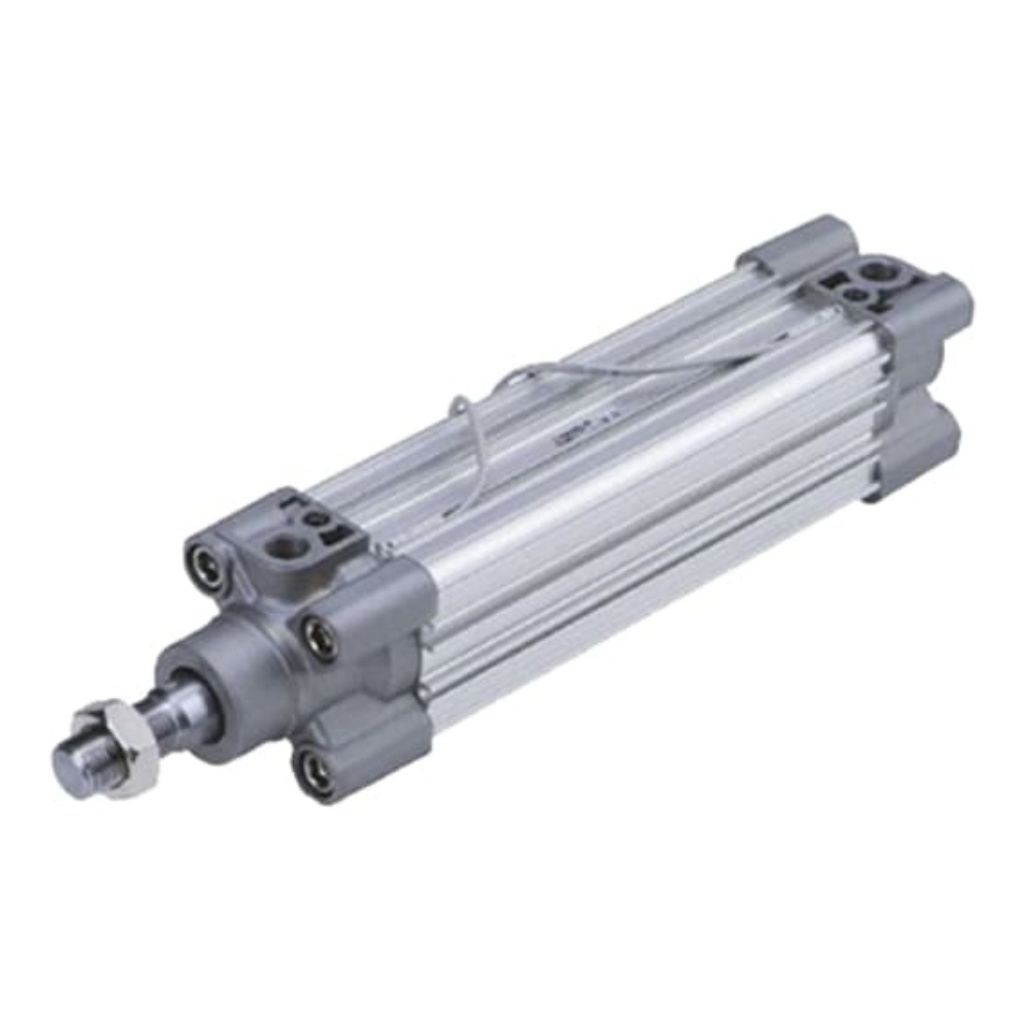

Pneumatic Piston Rod Cylinder - 32mm Bore, 320mm Stroke, CP96 Series, Double Acting, SMC, CP96SDB32-320C

Name: Pneumatic Piston Rod Cylinder - 32mm Bore, 320mm Stroke, CP96 Series, Double Acting, SMC, CP96SDB32-320C
SKU: CP96SDB32-320C
Price: 200.23 AUD
Availability: InStock

CP96-C Double Acting Cylinder

The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.

CP96 Series

Manufacturer: SMC

SKU: CP96SDB32-320C

$200.23

Qty:

Feature	Value
Stroke	320mm
Bore	32mm
Action	Double
Manufacturer Series	CP96
Length	466mm
Cushioning Type	Air
Dimensions	466 x 47 x 47mm
Width	47mm
Absolute Maximum Pressure	1.5MPa
Maximum Operating Pressure	1 MPa
Height	47mm
Maximum Operating Temperature	+70Ã‚Â°C
Stroke Interval Weight	0.14 kg @ 50 mm Stroke
Weight	1.6kg
ISO Standard	4414
Minimum Operating Temperature	-20Ã‚Â°C

CP96SDB32-320C Datasheet
