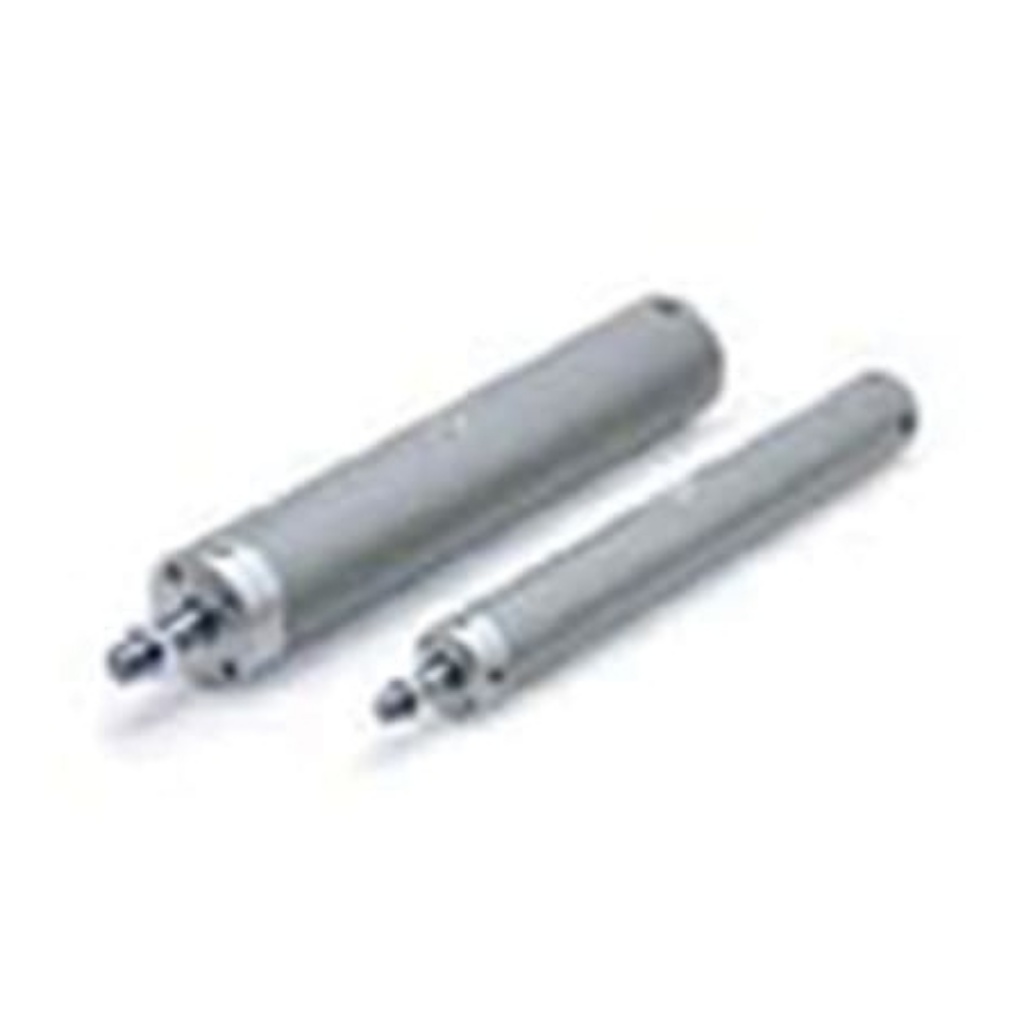

Picture of Pneumatic Piston Rod Cylinder - 32mm Bore, 175mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN32-175Z

Pneumatic Piston Rod Cylinder - 32mm Bore, 175mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN32-175Z

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Manufacturer: SMC
SKU: CDG1BN32-175Z
$140.93
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Manufacturer SeriesCDG1
Bore32mm
ActionDouble
Stroke175mm
Port ConnectionR 1/8
Cushioning TypeRubber Bumper
Dimensions35.5 (Dia.) x 288mm
Diameter35.5mm
Height288mm
Maximum Operating Pressure1 MPa
Absolute Maximum Pressure1.5MPa
Maximum Operating Temperature+60°C
Weight770.2g
Minimum Operating Temperature-10°C
