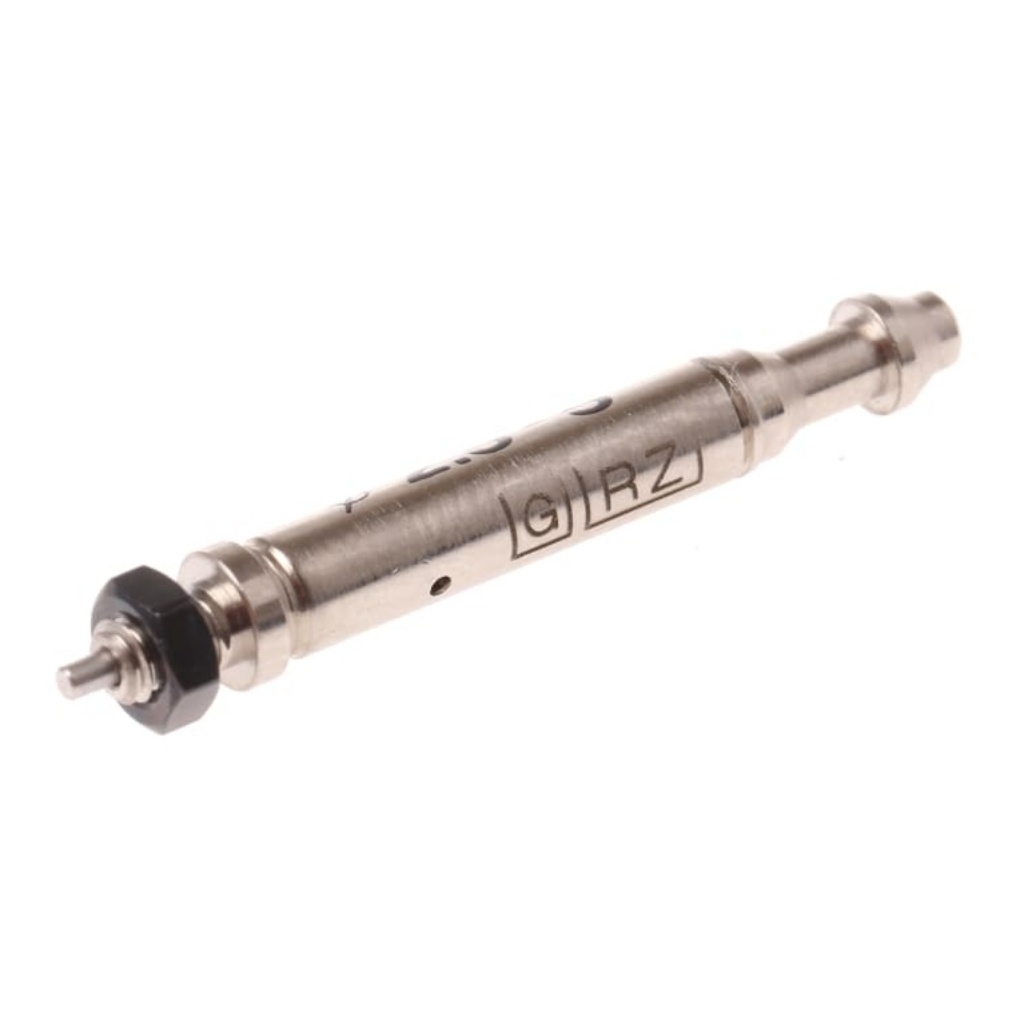

Picture of Pneumatic Piston Rod Cylinder - 2.5mm Bore, 5mm Stroke, CJ1 Series, Single Acting, SMC, CJ1B2-5SU4
Picture of Pneumatic Piston Rod Cylinder - 2.5mm Bore, 5mm Stroke, CJ1 Series, Single Acting, SMC, CJ1B2-5SU4
Picture of Pneumatic Piston Rod Cylinder - 2.5mm Bore, 5mm Stroke, CJ1 Series, Single Acting, SMC, CJ1B2-5SU4

Pneumatic Piston Rod Cylinder - 2.5mm Bore, 5mm Stroke, CJ1 Series, Single Acting, SMC, CJ1B2-5SU4

Pneumatic Needle Cylinders

Designed to automate delicate operations
Plug directly into 4mm OD x 2.5mm ID tubing, available separately
Single acting - spring retracting
Non-lubricated

Test pressure10.5 Bar
Operating pressure 3 bar (min) to 7 bar (max)
Ambient and fluid temperature -10°C to +70°C
Piston speed 50-500mm/sec
Non-cushioned
Stroke tolerance +0.5mm -0mm

Note

Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7 bar)
Manufacturer: SMC
SKU: CJ1B2-5SU4
$45.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke5mm
Bore2.5mm
ActionSingle
Manufacturer SeriesCJ1
Length29mm
Cushioning TypeNot Cushioned
Dimensions3.5 (Dia.) x 29mm
Maximum Operating Pressure0.7 MPa
Diameter3.5mm
Maximum Operating Temperature+70°C
Piston Speed50 → 500mm/s
Minimum Operating Temperature-10°C
Weight12g
