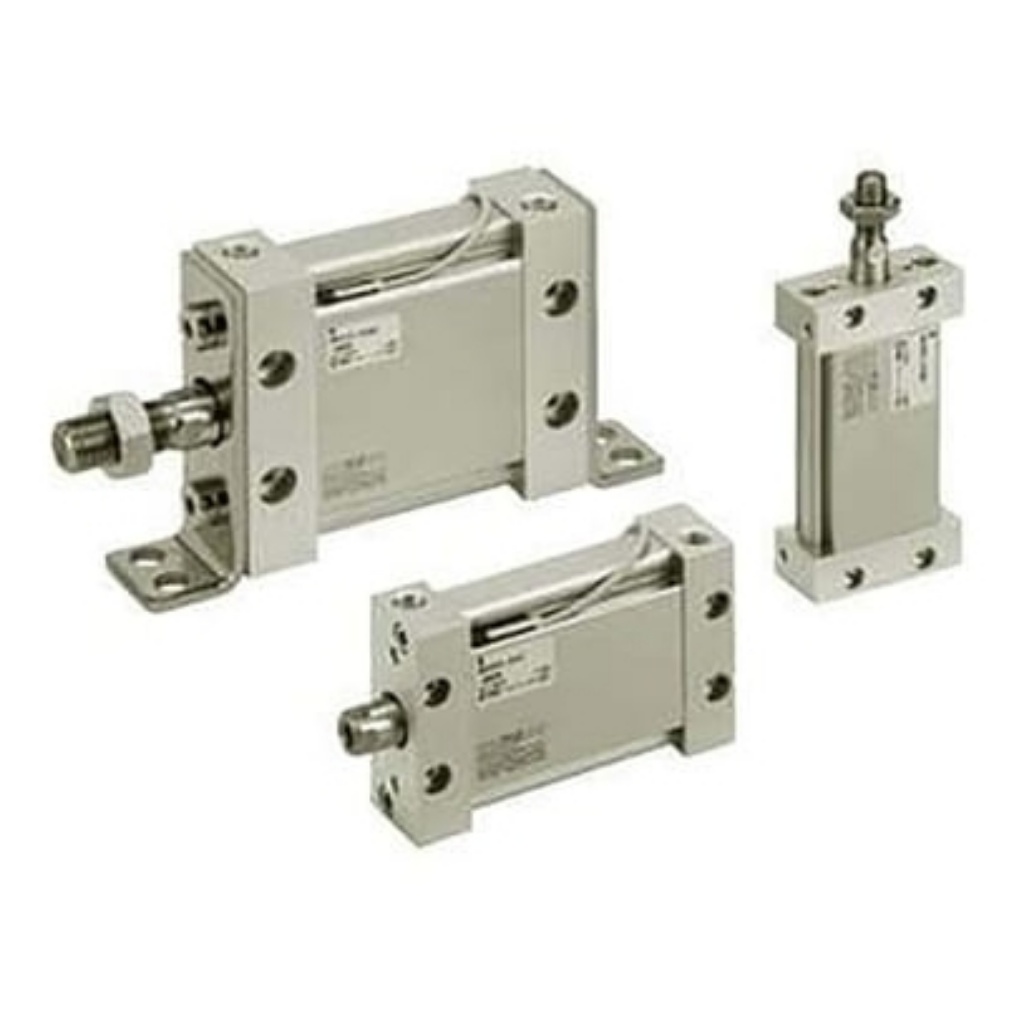

Picture of Pneumatic Piston Rod Cylinder - 25mm Bore, 50mm Stroke, MU Series, Double Acting, SMC, MDUB25-50DMZ

Pneumatic Piston Rod Cylinder - 25mm Bore, 50mm Stroke, MU Series, Double Acting, SMC, MDUB25-50DMZ

Plate Cylinder, Double Acting, Single Rod.
Reduced labour when mounting the switch.
Auto-switch doesn't protrude. It's possible to mount the autoswitches in four directions.
A maximum 62% width reduction

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Manufacturer: SMC
SKU: MDUB25-50DMZ
$223.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Manufacturer SeriesMU
Stroke50mm
Bore25mm
ActionDouble
Port ConnectionM5 x 0.8
Cushioning TypeRubber Bumper
Dimensions141 x 24 x 54mm
Height54mm
Width24mm
Length141mm
Maximum Operating Pressure0.7 MPa
Absolute Maximum Pressure1.05MPa
Maximum Operating Temperature+60°C
Minimum Operating Temperature-10°C
Weight170g
