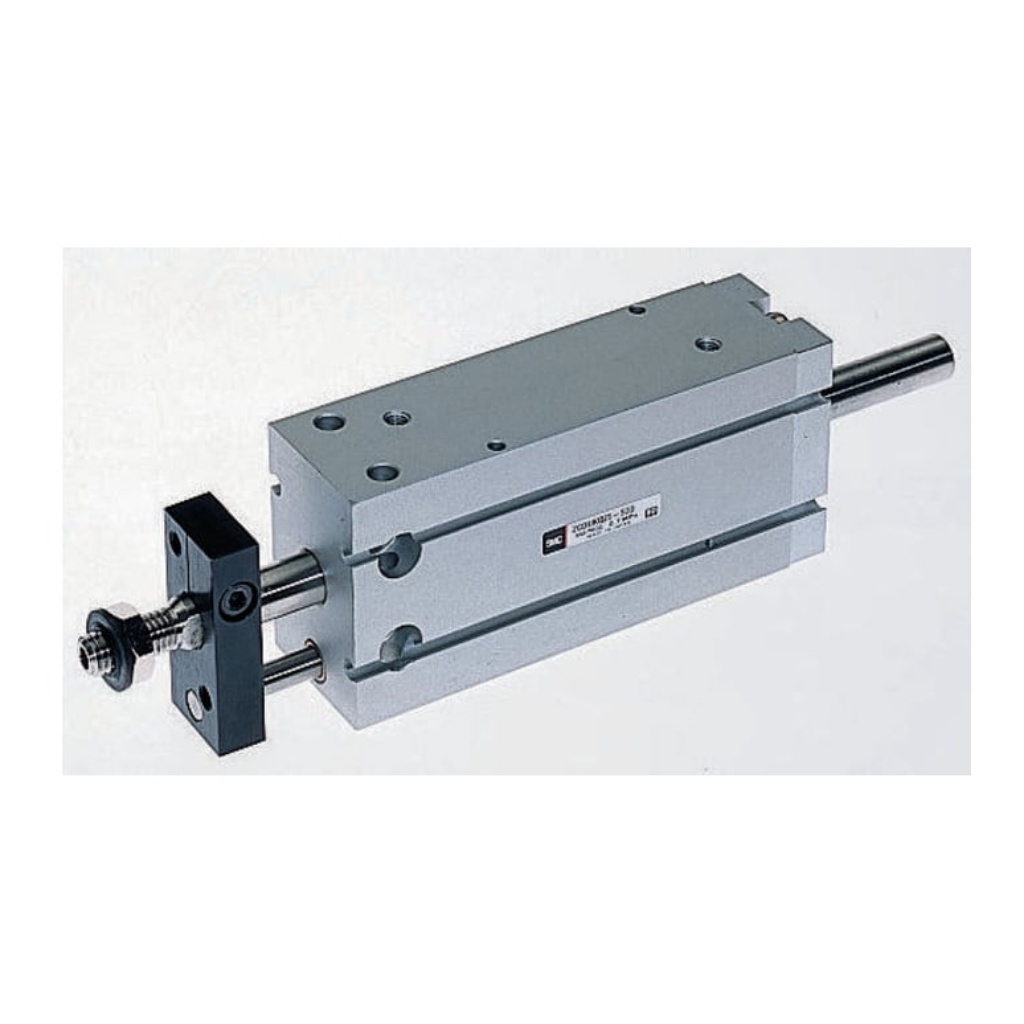

Picture of Pneumatic Piston Rod Cylinder - 20mm Bore, 50mm Stroke, ZCUK Series, Double Acting, SMC, ZCDUKQ20-50D

Pneumatic Piston Rod Cylinder - 20mm Bore, 50mm Stroke, ZCUK Series, Double Acting, SMC, ZCDUKQ20-50D

Cylinders

Hollow piston rod allows vacuum connection
Vacuum pad can be mounted directly to piston rod using female thread vacuum pads, available separately
Double acting
Non-rotating piston rod, accuracy ±0.8º (16mm dia), ±0.5º (20mm dia)
Proof pressure 10.5 bar
Operating pressure range 0.7 bar, 16mm dia and 0.6 bar, 20mm dia (min) to 7 bar (max)
Vacuum port pressure -760mmHg – 0.6 bar
Ambient and fluid temperature 5°C to 60°C
Lubrication not required
Rubber cushion both sides
Manufacturer: SMC
SKU: ZCDUKQ20-50D
$323.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke50mm
Bore20mm
ActionDouble
Manufacturer SeriesZCUK
Length186mm
Cushioning TypeRubber
Dimensions186 x 26 x 40mm
Width26mm
Absolute Maximum Pressure1.05MPa
Maximum Operating Pressure0.7 MPa
Height40mm
Weight271g
Minimum Operating Temperature-10°C
Maximum Operating Temperature+70°C
