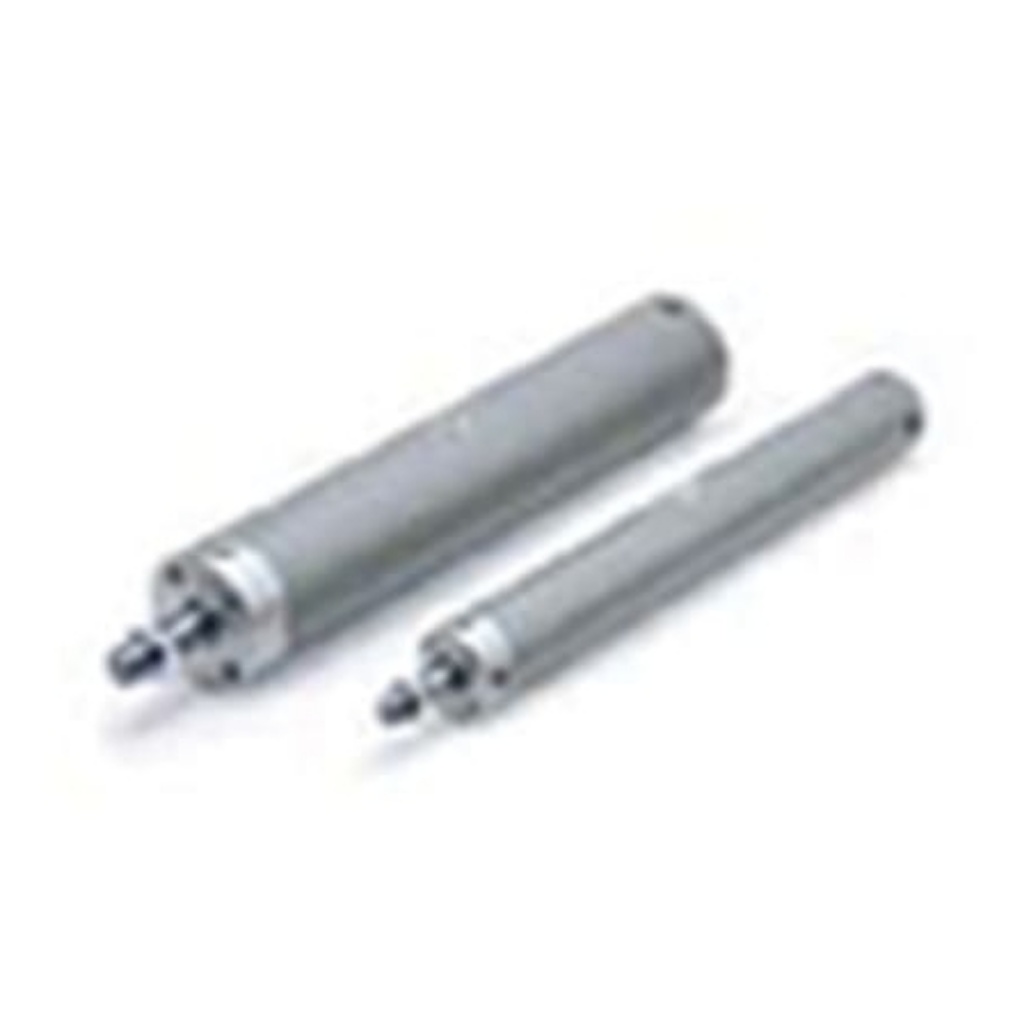

Picture of Pneumatic Piston Rod Cylinder - 20mm Bore, 150mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN20-150Z

Pneumatic Piston Rod Cylinder - 20mm Bore, 150mm Stroke, CDG1 Series, Double Acting, SMC, CDG1BN20-150Z

CG1 Air Cylinder

The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.

Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
Manufacturer: SMC
SKU: CDG1BN20-150Z
$108.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke150mm
Bore20mm
ActionDouble
Manufacturer SeriesCDG1
Cushioning TypeRubber Bumper
Dimensions24 (Dia.) x 256mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height256mm
Maximum Operating Temperature60°C
Weight486.1g
Minimum Operating Temperature-10°C
Diameter24mm
