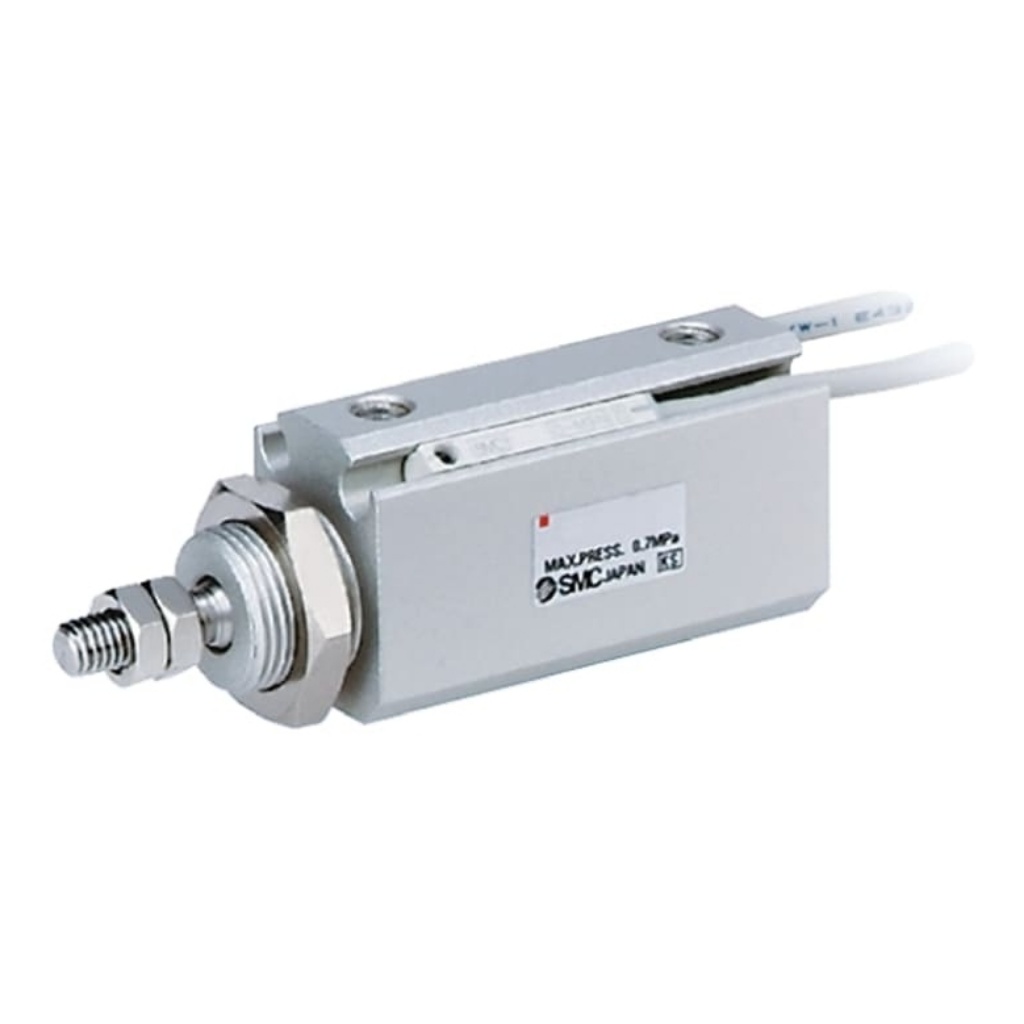

Picture of Pneumatic Piston Rod Cylinder - 16mm Bore, 40mm Stroke, CJP2 Series, Double Acting, SMC, CDJP2B16-40D

Pneumatic Piston Rod Cylinder - 16mm Bore, 40mm Stroke, CJP2 Series, Double Acting, SMC, CDJP2B16-40D

Cylinders

Bore sizes 6, 10, 16mm
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Manufacturer: SMC
SKU: CDJP2B16-40D
$112.76
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Manufacturer SeriesCJP2
Bore16mm
Stroke40mm
ActionDouble
Port ConnectionM5 x 0.8
Cushioning TypeRubber
Dimensions83.5 x 20 x 24.5mm
Length83.5mm
Width20mm
Height24.5mm
Maximum Operating Pressure0.7 MPa
Minimum Operating Temperature-10°C
Weight71g
Piston Speed50 → 500mm/s
Maximum Operating Temperature+70°C
