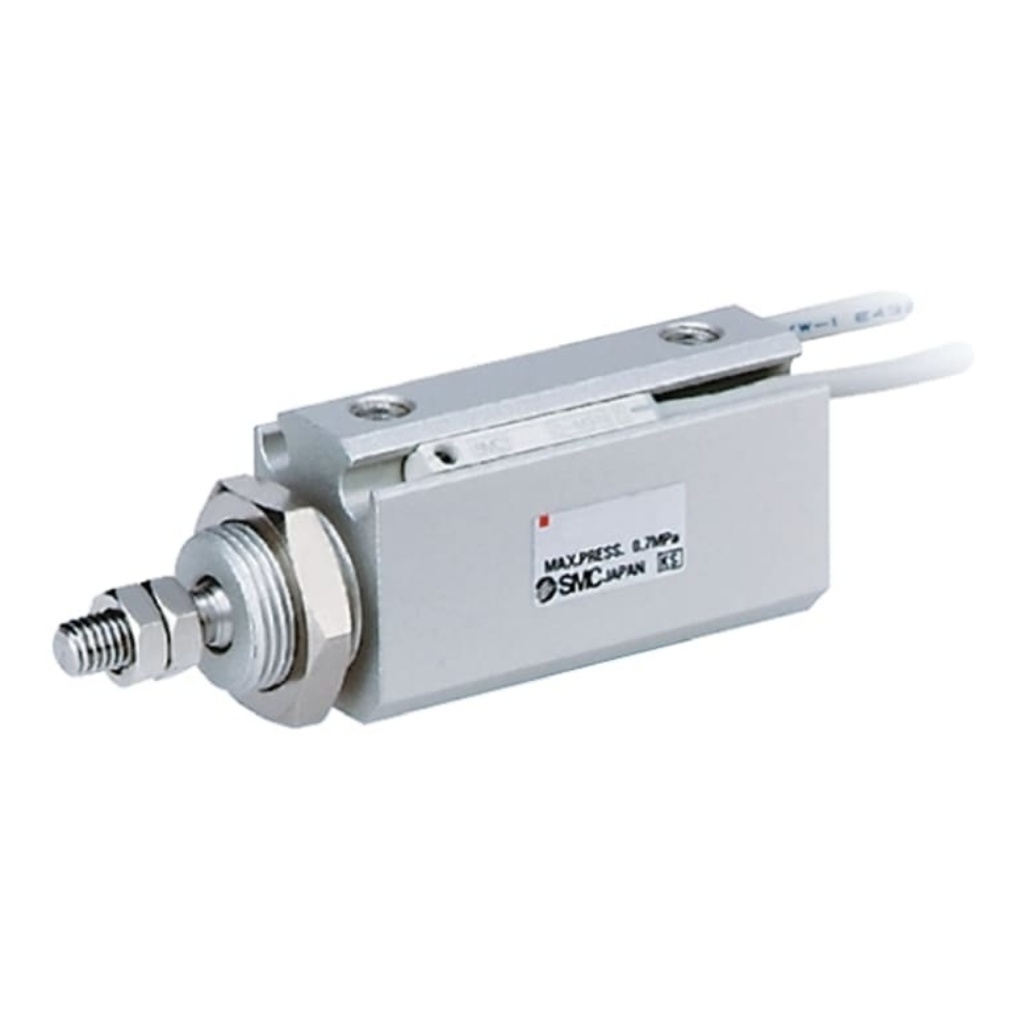

Picture of Pneumatic Piston Rod Cylinder - 10mm Bore, 25mm Stroke, CJP2 Series, Double Acting, SMC, CDJP2B10-25D

Pneumatic Piston Rod Cylinder - 10mm Bore, 25mm Stroke, CJP2 Series, Double Acting, SMC, CDJP2B10-25D

Cylinders

Bore sizes 6, 10, 16mm
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
Manufacturer: SMC
SKU: CDJP2B10-25D
$84.16
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke25mm
Bore10mm
ActionDouble
Manufacturer SeriesCJP2
Length64.5mm
Cushioning TypeRubber
Dimensions64.5 x 15 x 19mm
Width15mm
Maximum Operating Pressure0.7 MPa
Height19mm
Maximum Operating Temperature+70°C
Piston Speed50 → 500mm/s
Weight37g
Minimum Operating Temperature-10°C
