Pneumatic Manual Control Valves

Pneumatic Toggle Lever Valves A range of 3//2 normally closed valves with a CV 0.055 flow Each valve incorporates built-in hose nipple connection suitable for 4mm OD, 2.5mm ID tube. Separate valves must be used for nylon or polyurethane tubing These valves are interchangeable with V3 electrical switches

Pneumatic Toggle Valves 3//2 mechanical valves Wide variety of actuator mechanisms Rc 1/ 8 or Rc 1/ 4 ports N/O - N/C can be piped for either option

Pneumatic Toggle Valves The SMC VFM200 series 5 port toggle lever valves are a compact, mechanical valve with a metal seal style. This series has a large flow capacity and a high cycle rate. The VFM offers an internal or external pilot body option. Fluid: air, inert gas Large flow capacity Operating pressure range: 0.1 to 1.0MPa Foot bracket or manifold mounting

SMC Toggle Valve The SMC VZM500 series 5/2 ports mechanical toggle valve has a 1/8in Rc port connection thread size. This compact design with large flow capacity valve is made of metal with a toggle actuator. It is suitable for air and inert gases. Features and Benefits Effective area (Cv) is 10.8mm^2 (534.90) Operating pressure ranging between 0.15MPa and 0.7MPa Operating temperature ranging between -5°C and 60°C Internal or external pilot body option Foot bracket and manifold mounting possible

The SMC series mechanical poppet valve is compact, lightweight, and offers various actuator styles with a flow capacity of up to 1.0 Cv. RoHS compliant Fluid air or inert gas

The SMC Pneumatics VM130-F01-08A is a 2/3-Port Mechanical valve. Built-in One-touch fitting reduced installation space and less piping work. Control Mechanism Toggle Lever Connection Port Thread G 1/8 Thread Size 42948 Thread Standard G

VM100 Series Roller Lever & Plunger Valves A selection of lever valves from SMC’s durable VM series suitable for harsh conditions and now redesigned to be lighter and more compact. Available with various actuator types that are simple to change or replace and available with either a 1/8” ort size (VM100) or1/4"” (VM200).Suitable for a wide range of applications, including vacuum, the VM 100/200 is ideal for pneumatic control panels and confirming the position of a workpiece using a pneumatic sign

Pneumatic Toggle Valves 3//2 mechanical valves Wide variety of actuator mechanisms Rc 1/ 8 or Rc 1/ 4 ports N/O - N/C can be piped for either option

Fluid: Air/Inert gas. Compact size. Piping options: Side ported, Bottom ported. Possible to choose mounting method with side ported. Variety of actuator types.

The SMC VFM series is very compact and high capacity 5 port mechanical valve. High frequency Long lifespan Piping possible to any EXH port

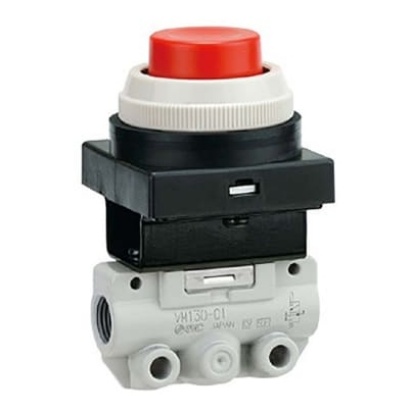

SMC’s VM100 series are a compact and lightweight series of mechanical push-button pneumatic valves. Built to withstand harsh working conditions and available in a choice of colour to make identification quick and easy. Ideal for pneumatic control panels and confirming the position of a work piece using a pneumatic signal. 3 Port, 2 Way Poppet type construction R1/8” Ports Suitable for vacuum applications Available in red, green or black Side mounting or bottom mounting

VM100 Series - Twist Selector SMC’s VM100 series are a compact and lightweight series of twist select mechanical pneumatic valves. Built to withstand harsh working conditions and ideal for pneumatic control panels and confirming the position of a work piece using a pneumatic signal. 3 Port, 2 Way Poppet type construction R1/8” Ports Suitable for vacuum applications Side mounting or bottom mounting
