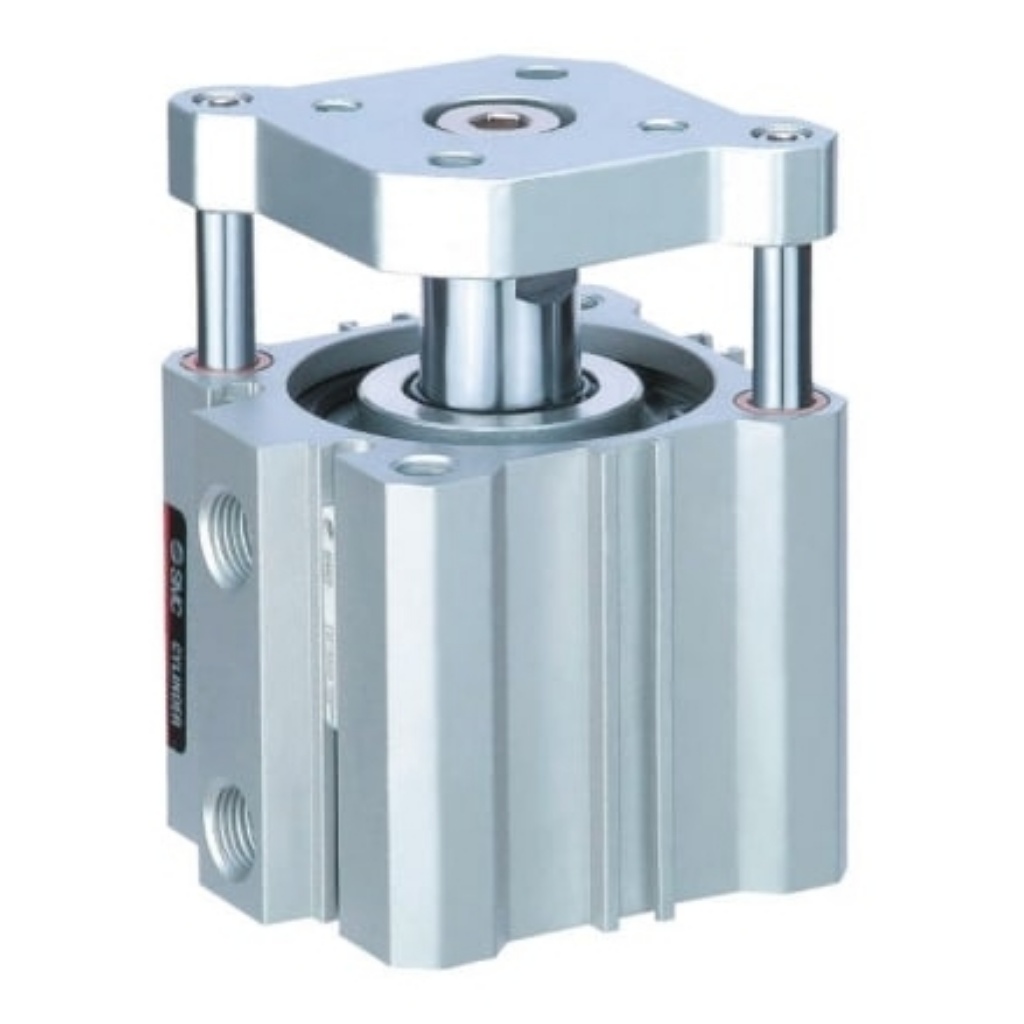

Picture of Pneumatic Guided Cylinder - 40mm Bore, 25mm Stroke, CQM Series, Double Acting, SMC, CDQMB40-25

Pneumatic Guided Cylinder - 40mm Bore, 25mm Stroke, CQM Series, Double Acting, SMC, CDQMB40-25

SMC CQM Compact Guided/Guide Rod Cylinder

SMC CQM Compact Guided/Guide Rod cylinders can accommodate direct loads, offer a lateral load resistance that is two to four times greater than SMC series CQ cylinders, and include mounting points that are compatible with SMC CQS and CQ2 series cylinders. The non-rotatable cylinders feature a hard anodized aluminium body, and are available as double-acting units with a magnetic piston as standard. Two mounting bolts are included.
Manufacturer: SMC
SKU: CDQMB40-25
$304.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke25mm
Bore40mm
Manufacturer SeriesCQM
ActionDouble
Maximum Operating Pressure1 MPa
Cushioning TypeRubber
Dimensions81.5 x 66 x 52mm
Weight370g
Maximum Operating Temperature+70°C
Length81.5mm
Minimum Operating Temperature-10°C
Height52mm
Width66mm
