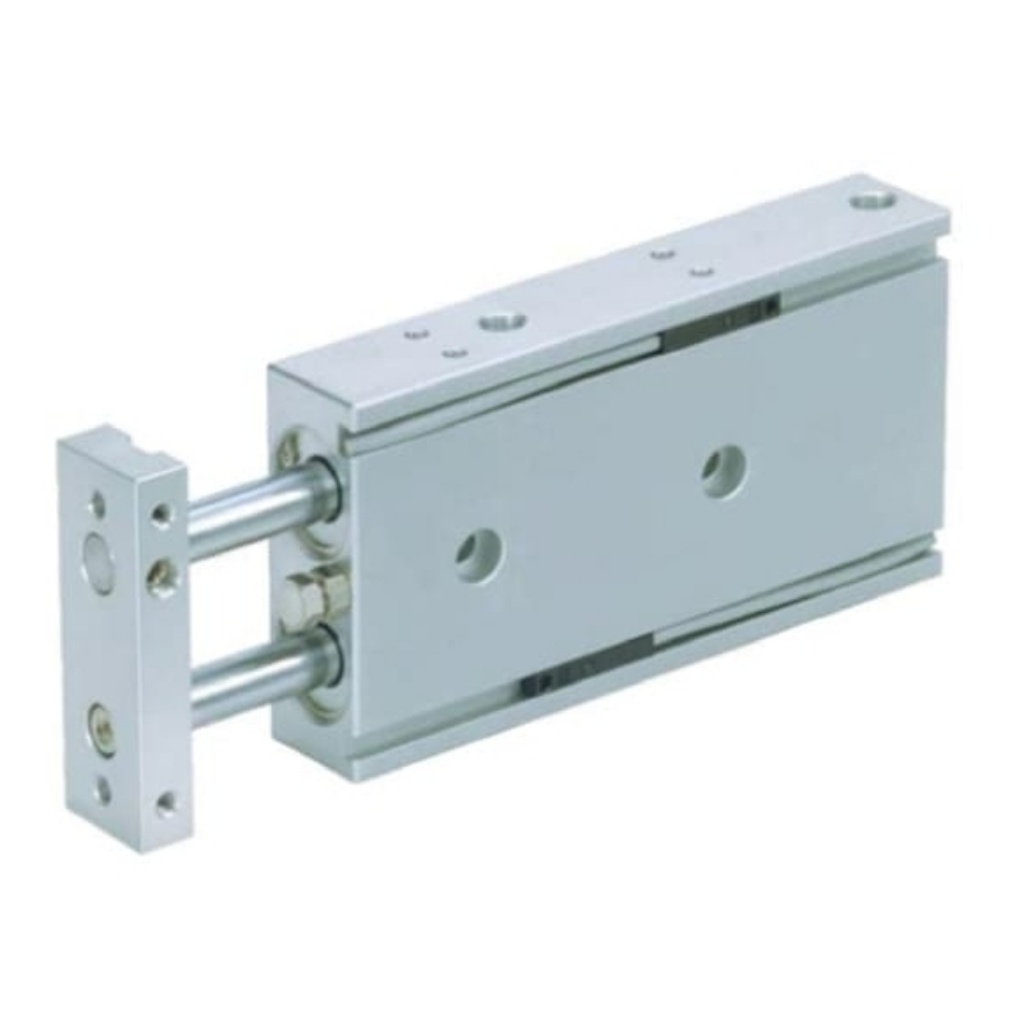

Picture of Pneumatic Guided Cylinder - 20mm Bore, 75mm Stroke, CXS Series, SMC, CXSM20-75

Pneumatic Guided Cylinder - 20mm Bore, 75mm Stroke, CXS Series, SMC, CXSM20-75

SMC CXS Dual-Rod Cylinder Range

SMC Dual-Rod Cylinders with slide bearings (CXSM type) or ball bearing slides (CXSL type), suitable for 'pick-and-place' applications, operating with non-lubricated, filtered, compressed air. Dual-Rod Cylinders feature high non-rotational accuracy, dual port locations, and standard magnetic sensing and buffer cushioning. Integral stroke adjustment may be set to standard stroke less 5mm. The cylinders incorporate a recess for auto switches, and may be used in operating environments from 5 to 60°C.
Manufacturer: SMC
SKU: CXSM20-75
$668.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke75mm
Bore20mm
Manufacturer SeriesCXS
Maximum Operating Pressure0.7 MPa
Cushioning TypeRubber
Dimensions169 x 64 x 25mm
Weight640g
Maximum Operating Temperature+60°C
Length169mm
Width64mm
Minimum Operating Temperature-10°C
Height25mm
