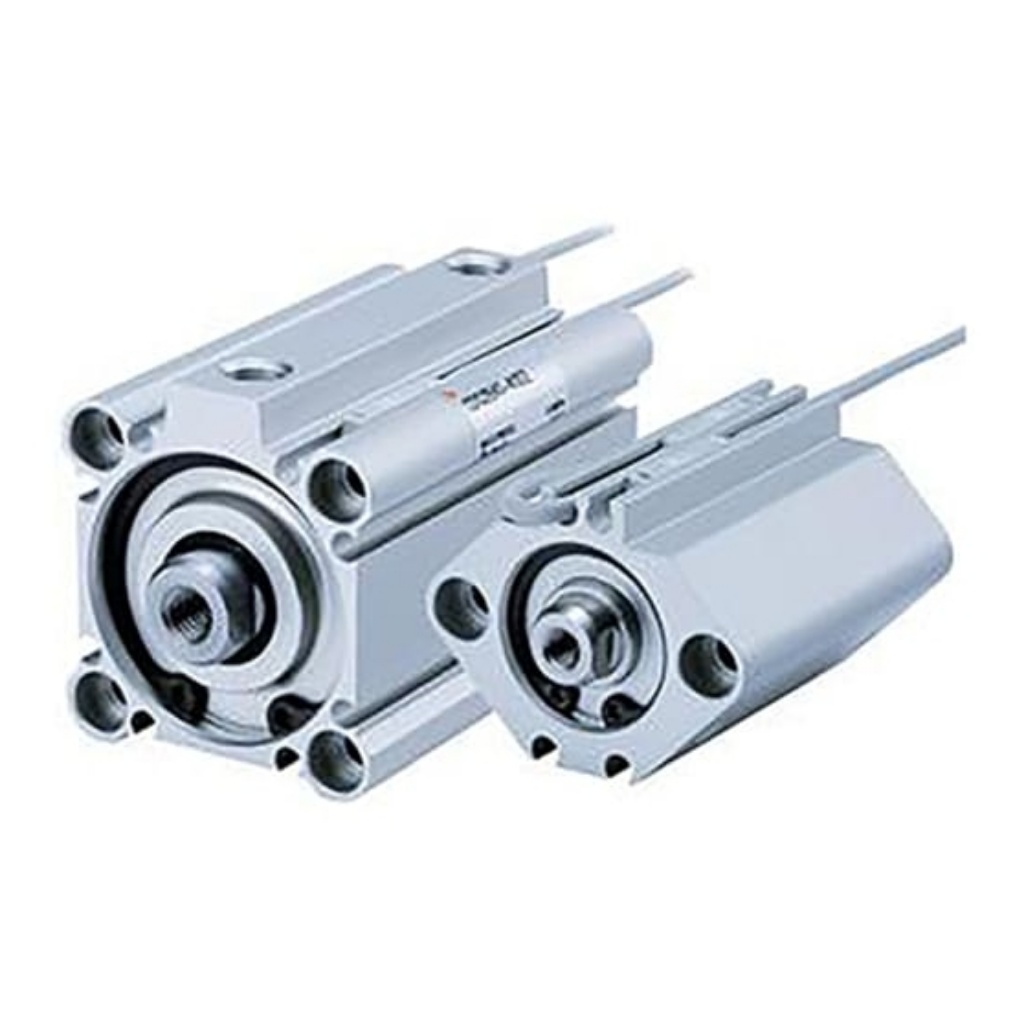

Picture of Pneumatic Guided Cylinder - 20mm Bore, 5mm Stroke, CQ2 Series, Double Acting, SMC, CQ2B20-5D

Pneumatic Guided Cylinder - 20mm Bore, 5mm Stroke, CQ2 Series, Double Acting, SMC, CQ2B20-5D

CQ2 Series Compact Cylinders

Compact space saving cylinders
Double acting, Single rod
Wide range of options available
Auto switch capable
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Manufacturer: SMC
SKU: CQ2B20-5D
$61.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke5mm
Bore20mm
Manufacturer SeriesCQ2
ActionDouble
Maximum Operating Pressure1 MPa
Dimensions24.5 x 36 x 36mm
Weight63g
Maximum Operating Temperature+70°C
Length24.5mm
Height36mm
Minimum Operating Temperature-10°C
Width36mm
Absolute Maximum Pressure1.5MPa
