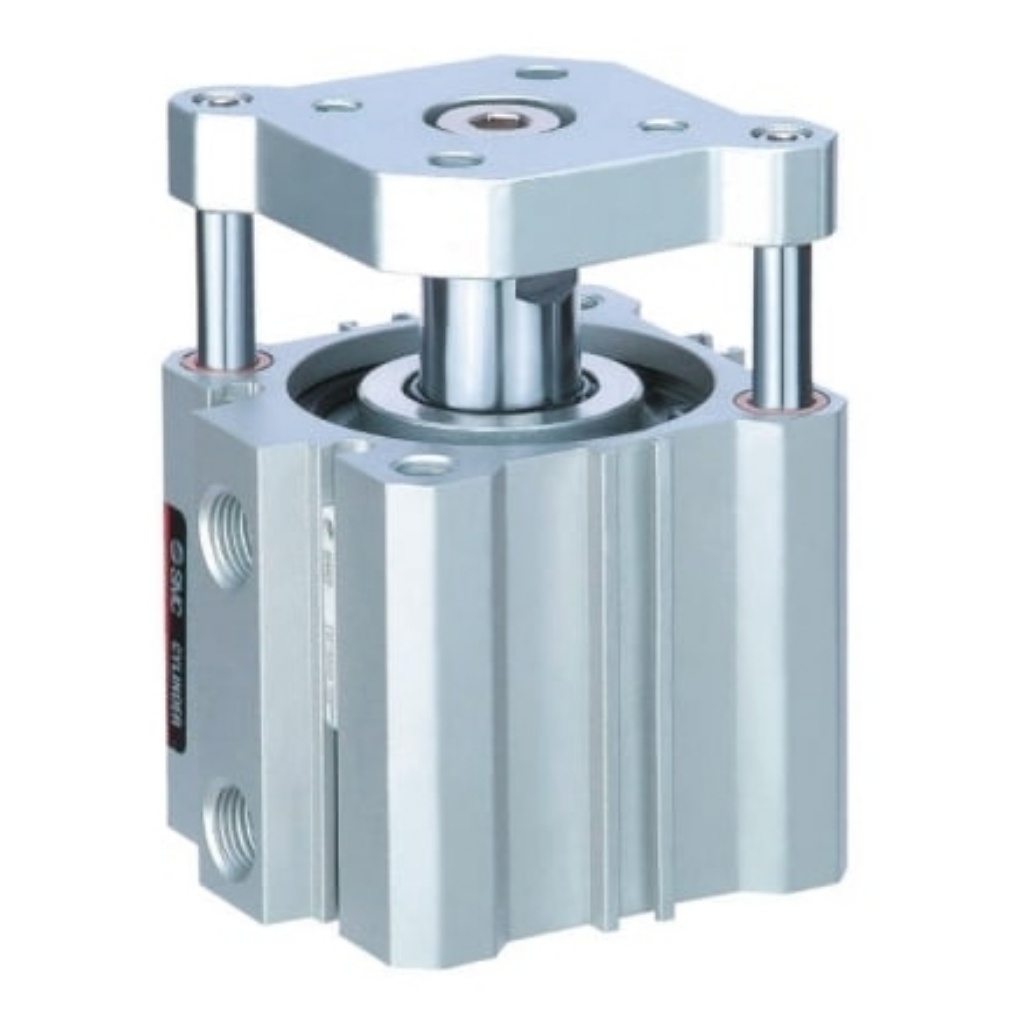

Picture of Pneumatic Guided Cylinder - 20mm Bore, 35mm Stroke, CQM Series, Double Acting, SMC, CDQMB20-35

Pneumatic Guided Cylinder - 20mm Bore, 35mm Stroke, CQM Series, Double Acting, SMC, CDQMB20-35

SMC CQM Compact Guided/Guide Rod Cylinder

SMC CQM Compact Guided/Guide Rod cylinders can accommodate direct loads, offer a lateral load resistance that is two to four times greater than SMC series CQ cylinders, and include mounting points that are compatible with SMC CQS and CQ2 series cylinders. The non-rotatable cylinders feature a hard anodized aluminium body, and are available as double-acting units with a magnetic piston as standard. Two mounting bolts are included.
Manufacturer: SMC
SKU: CDQMB20-35
$193.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke35mm
Bore20mm
Manufacturer SeriesCQM
ActionDouble
Maximum Operating Pressure1 MPa
Cushioning TypeRubber
Dimensions77 x 36 x 36mm
Weight183g
Maximum Operating Temperature+70°C
Length77mm
Minimum Operating Temperature-10°C
Height36mm
Width36mm
