Pneumatic Guided Cylinder - 20mm Bore, 20mm Stroke, MGQ Series, Double Acting, SMC, EMGQM20-20

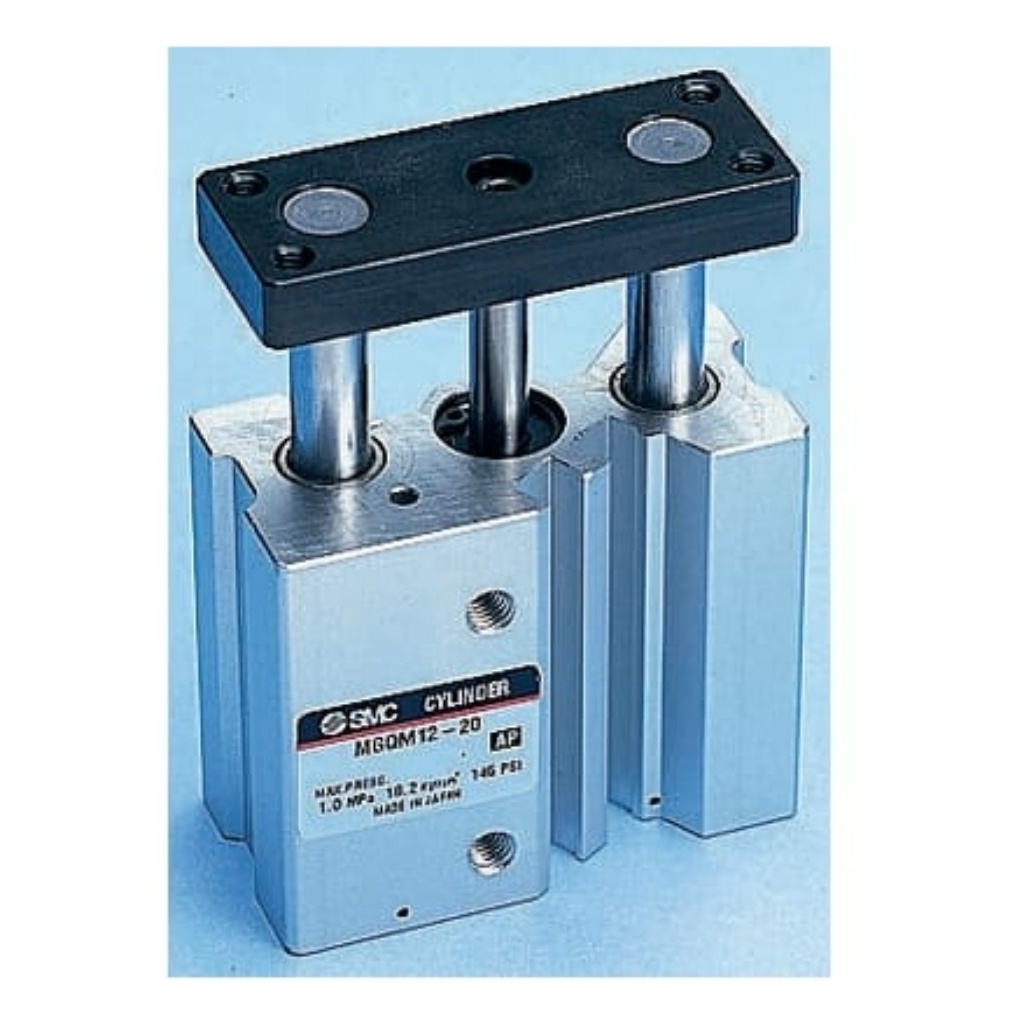

SMC MGQM Compact Guide Cylinder

The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two types of guide rod bearing for different applications. The overall package is very compact and pre-tapped mounting holes ensure easy attachment of fixtures.

Compact guide cylinder
Available in a range of bore sizes
Strokes from 10mm → 200mm depending upon bore size
Variety of switches and a variety of lead wire lengths
Mounts on side or bottom

MGQ-M Compact Guided 12-50mm Diameter

Compact, double-acting guided cylinders utilising slide bearings. These cylinders maintain a very high non-rotational accuracy and have a high tolerance to side loading. All cylinders have magnetic sensing capabilities and direct mount facilities.
