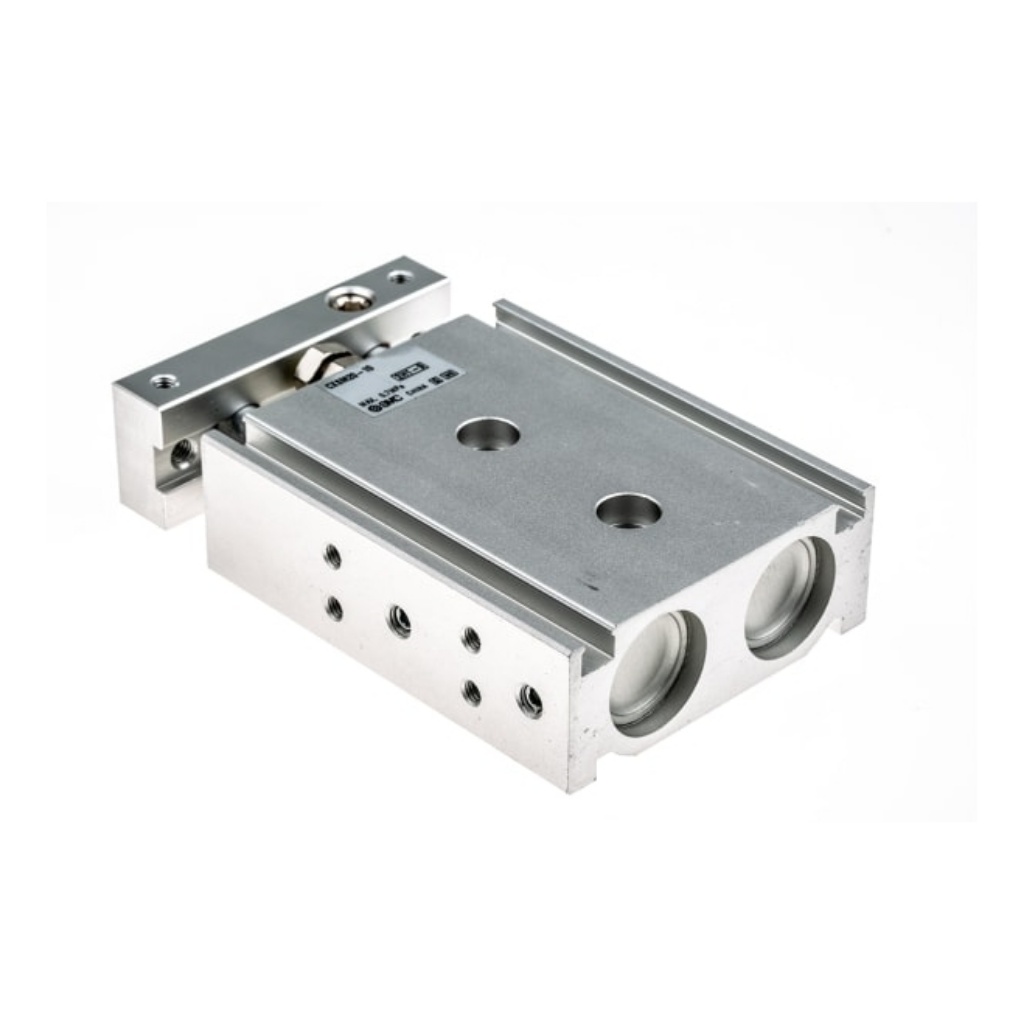

Picture of Pneumatic Guided Cylinder - 20mm Bore, 10mm Stroke, CXSM Series, SMC, CXSM20-10
Picture of Pneumatic Guided Cylinder - 20mm Bore, 10mm Stroke, CXSM Series, SMC, CXSM20-10
Picture of Pneumatic Guided Cylinder - 20mm Bore, 10mm Stroke, CXSM Series, SMC, CXSM20-10
Picture of Pneumatic Guided Cylinder - 20mm Bore, 10mm Stroke, CXSM Series, SMC, CXSM20-10

Pneumatic Guided Cylinder - 20mm Bore, 10mm Stroke, CXSM Series, SMC, CXSM20-10

SMC CXS Dual-Rod Cylinder Range

SMC Dual-Rod Cylinders with slide bearings (CXSM type) or ball bearing slides (CXSL type), suitable for 'pick-and-place' applications, operating with non-lubricated, filtered, compressed air. Dual-Rod Cylinders feature high non-rotational accuracy, dual port locations, and standard magnetic sensing and buffer cushioning. Integral stroke adjustment may be set to standard stroke less 5mm. The cylinders incorporate a recess for auto switches, and may be used in operating environments from 5 to 60°C.
Manufacturer: SMC
SKU: CXSM20-10
$499.54
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke10mm
Bore20mm
Manufacturer SeriesCXSM
Maximum Operating Pressure0.7 MPa
Cushioning TypeRubber
Dimensions104 x 25 x 64mm
Weight400g
Maximum Operating Temperature+60°C
Length104mm
Height64mm
Width25mm
Minimum Operating Temperature-10°C
