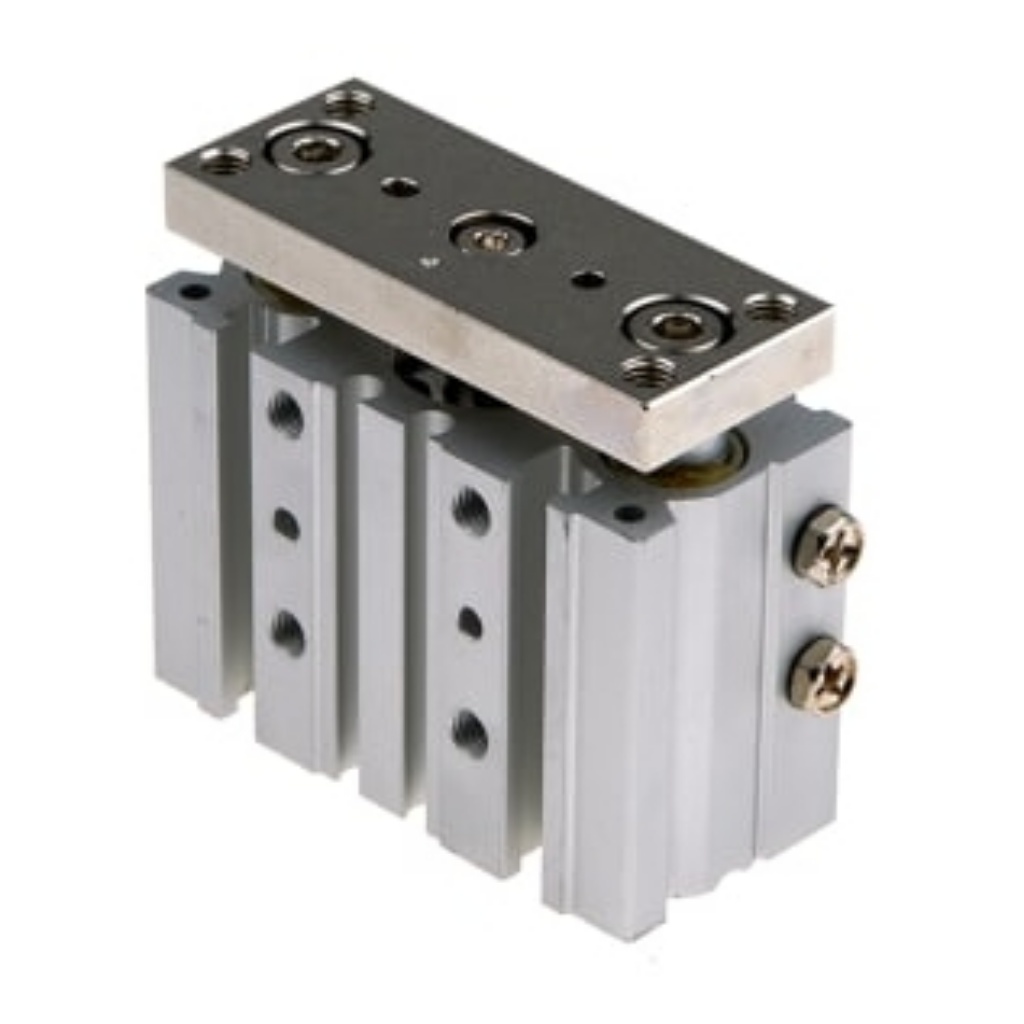

Picture of Pneumatic Guided Cylinder - 16mm Bore, 10mm Stroke, Double Acting, SMC, MGPM16-10Z
Picture of Pneumatic Guided Cylinder - 16mm Bore, 10mm Stroke, Double Acting, SMC, MGPM16-10Z
Picture of Pneumatic Guided Cylinder - 16mm Bore, 10mm Stroke, Double Acting, SMC, MGPM16-10Z
Picture of Pneumatic Guided Cylinder - 16mm Bore, 10mm Stroke, Double Acting, SMC, MGPM16-10Z

Pneumatic Guided Cylinder - 16mm Bore, 10mm Stroke, Double Acting, SMC, MGPM16-10Z

MGP Series Miniature Guided Cylinders

The SMC MGP series of compact guide cylinder is designed for high side load applications found in material handling, lifting and stopping. The MGP series incorporates the cylinder body as part of the guide body to give an ultra-compact design. As the stroke length increases, so does the bearing length, thus enhancing the cylinder's load bearing capacity.

Wide range of bore sizes
Wide range of strokes
Four Mounting Styles Provided
Auto Switches Can Be Mounted on Two Sides
High Mounting and Piping Flexibility

SMC Miniature Guide Rod Cylinders
Manufacturer: SMC
SKU: MGPM16-10Z
$443.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke10mm
Bore16mm
ActionDouble
Maximum Operating Pressure1 MPa
Cushioning TypeRubber Bumper
Dimensions56 x 30 x 62mm
Weight220g
Maximum Operating Temperature+60°C
Length56mm
Width30mm
Absolute Maximum Pressure1.5MPa
Minimum Operating Temperature-10°C
Height62mm
