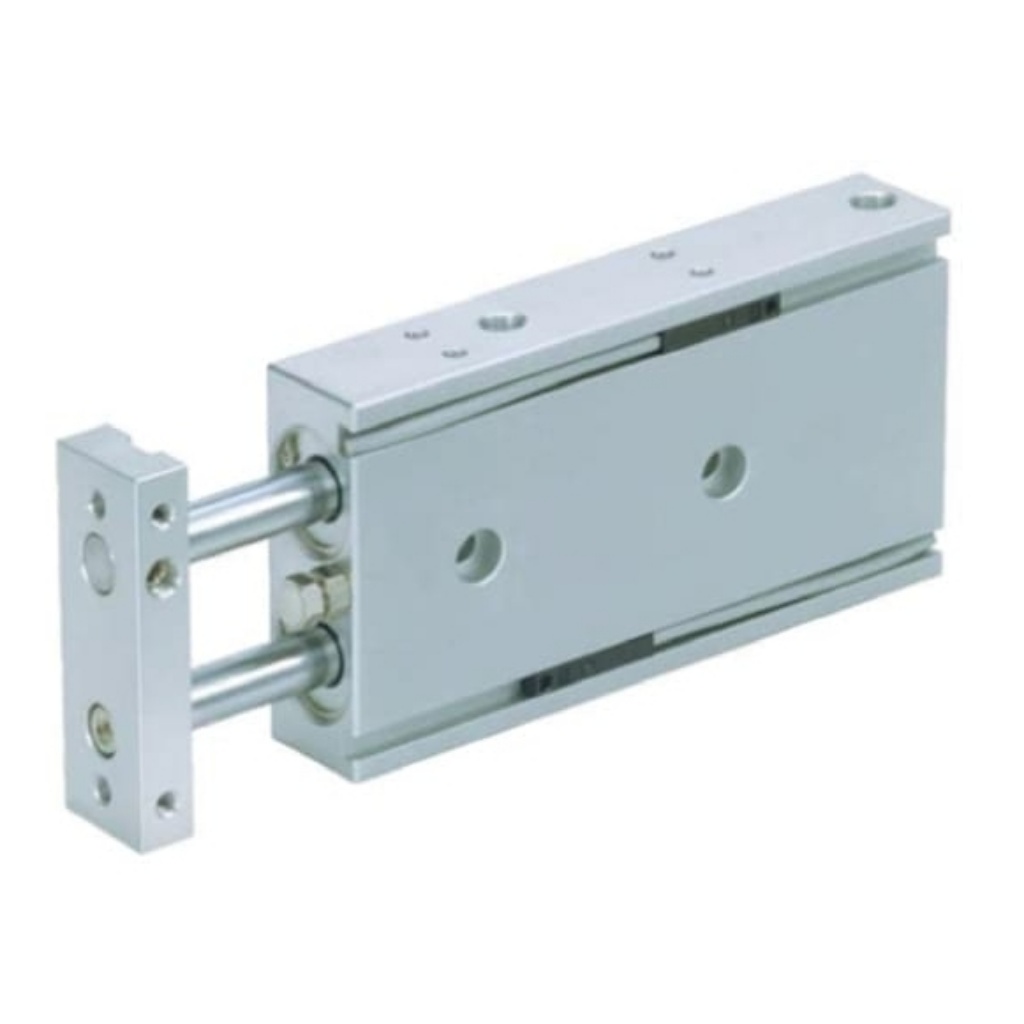

Picture of Pneumatic Guided Cylinder - 15mm Bore, 100mm Stroke, CXS Series, SMC, CXSL15-100

Pneumatic Guided Cylinder - 15mm Bore, 100mm Stroke, CXS Series, SMC, CXSL15-100

SMC CXS Dual-Rod Cylinder Range

SMC Dual-Rod Cylinders with slide bearings (CXSM type) or ball bearing slides (CXSL type), suitable for 'pick-and-place' applications, operating with non-lubricated, filtered, compressed air. Dual-Rod Cylinders feature high non-rotational accuracy, dual port locations, and standard magnetic sensing and buffer cushioning. Integral stroke adjustment may be set to standard stroke less 5mm. The cylinders incorporate a recess for auto switches, and may be used in operating environments from 5 to 60°C.
Manufacturer: SMC
SKU: CXSL15-100
$967.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke100mm
Bore15mm
Manufacturer SeriesCXS
Maximum Operating Pressure0.7 MPa
Cushioning TypeRubber
Dimensions179 x 58 x 20mm
Weight530g
Maximum Operating Temperature+60°C
Length179mm
Width58mm
Height20mm
Minimum Operating Temperature-10°C
