Pneumatic Function Fittings
Pneumatic function fittings are connectors that add additional control and safety to pneumatic systems. These connectors do a lot more than just connect tubes and hoses to a valve, cylinder, or air-powered system. These function fittings come in a variety of sizes and materials.
Types of fittings
- Flow Control Regulators - Control the speed of the flow.
- Sensor Fittings - Detect any pressure drop.
- Venting Protection - Block the supply of and vent the system pressure.
- Non-Return Valves - Let air pass in one direction while blocking it from flowing in the opposite direction.
- Speed Controllers - Control the flow of compressed air to pneumatic actuators.

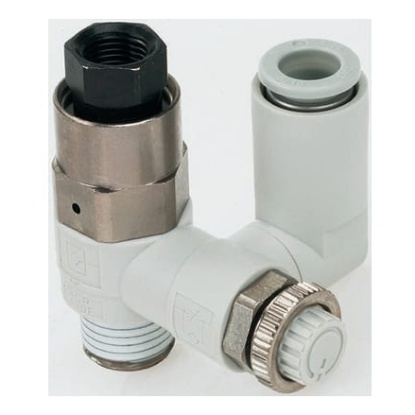

ASP Series Threaded Flow Regulator, R 3/8 Male Inlet Port x 10mm Tube Outlet Port, SMC, ASP530F-03-10S
ASP530F-03-10S
Combined Blocking and Flow Regulator
Integrated pilot valve and speed controller
Temporary intermediate stop and speed control cylinders
360° freedom for tube mounting direction
Note
Use caution with soft nylon or polyurethane at maximum pressure.
Flow Regulators & Restrictors - SMC
Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
$166.27

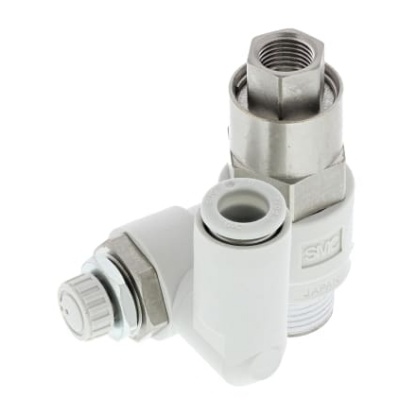

ASP Series Threaded Flow Regulator, R 3/8 Male Inlet Port x 8mm Tube Outlet Port, SMC, ASP530F-03-08S
ASP530F-03-08S
Combined Blocking and Flow Regulator
Integrated pilot valve and speed controller
Temporary intermediate stop and speed control cylinders
360° freedom for tube mounting direction
Note
Use caution with soft nylon or polyurethane at maximum pressure.
Flow Regulators & Restrictors - SMC
Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
$132.68

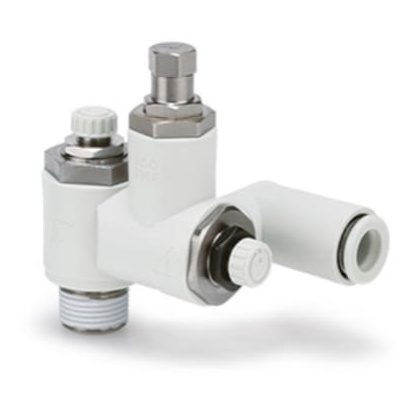

ASQ Series Tube Flow Controller, G 1/2 Inlet Port, R1/8in Tube Inlet Port x 10mm Tube Outlet Port, SMC, ASQ630F-04-10S
ASQ630F-04-10S
The SMC air saving valve can reduce air consumption by 25%. The PFC control valve has a pressure adjustment and speed control function. The QFC control valve offers a high speed exhaust and cylinder speed control function. This valve with one-touch fittin
Pressure adjustment and speed control functions
High speed exhaust and cylinder speed control functions
Metric and NPT threads
$146.16

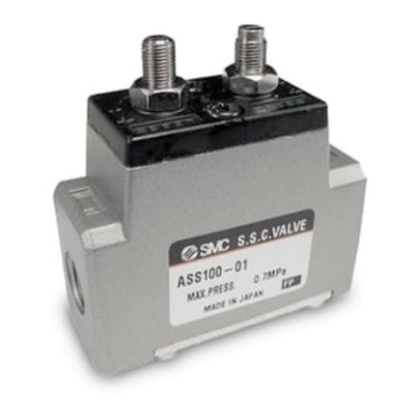

ASS Series Threaded Speed Controller, Rc 1/4 Inlet Port, G 1/4 Tube Inlet Port x G 1/4 Outlet Port x G 1/4 Tube, SMC, ASS300-02
ASS300-02
The SMC Safety speed control valve is control valve with cylinder speed control function, fixed throttle, and rapid air supply function. It is control valve with cylinder speed control function and rapid air supply function.
Prevents accidents caused by the cylinder rod sudden extensions
Fluid use is air
$111.30

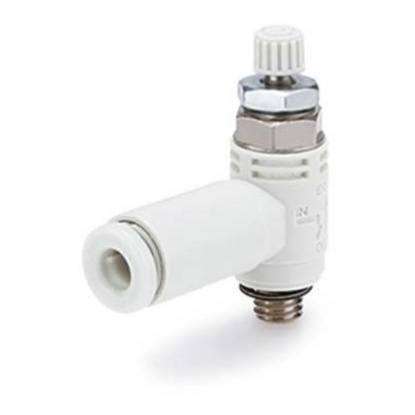

ASV Series Threaded Speed Exhaust Controller, R 3/8 Inlet Port x 12mm Tube Outlet Port, SMC, ASV510F-03-12S
ASV510F-03-12S
The SMC speed exhaust controller offers a larger effective area and comes standard with a silencer, one-touch fitting, and flame-resistant resin body.
RoHS compliant
Energy saving
$61.36
ASV310F Series Threaded Speed Exhaust Controller, R 1/8 Inlet Port x 6mm Tube Outlet Port, SMC, ASV310F-01-06S-J
ASV310F-01-06S-J
The SMC series ASV, speed exhaust controller provides an effective area that is two times larger than that of a speed controller. A silencer, one-touch fitting and flame resistant resin body is supplied as standard on the ASV. All brass parts are electro less nickel-plated.
Applicable tubing 5/32", 1/4", 5/16", 3/8", 1/2", 4mm, 6mm, 8mm, 10mm, 12mm
Applicable port size M3 x 0.5, M5 x 0.8, 10-32 UNF, R1/8, R1/4, R3/8, R1/2, NPT1/8, NPT1/4, NPT3/8, NPT1/2
With spatter cover (ASV310F/410F/510F).
$51.40

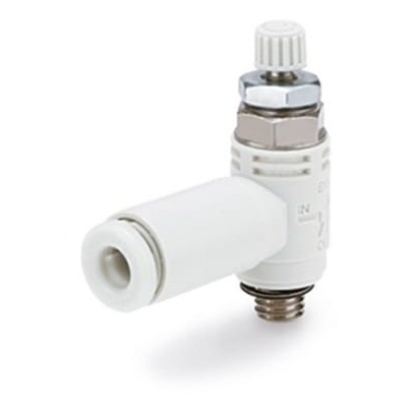

ASV410F Series Threaded Speed Exhaust Controller, R 1/8 Inlet Port x 10mm Tube Outlet Port, SMC, ASV410F-02-10S
ASV410F-02-10S
The SMC series ASV, speed exhaust controller provides an effective area that is two times larger than that of a speed controller. A silencer, one-touch fitting and flame resistant resin body is supplied as standard on the ASV. All brass parts are electro less nickel-plated.
Applicable tubing 5/32", 1/4", 5/16", 3/8", 1/2", 4mm, 6mm, 8mm, 10mm, 12mm
Applicable port size M3 x 0.5, M5 x 0.8, 10-32 UNF, R1/8, R1/4, R3/8, R1/2, NPT1/8, NPT1/4, NPT3/8, NPT1/2
With spatter cover (ASV310F/410F/510F).
$64.54

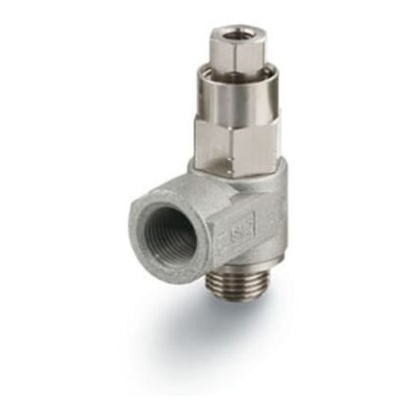

AS-X785 Series Threaded Fitting, R 1/4 Inlet Port x Rc 1/4 Outlet Port, SMC, AS2200-02S-X785
AS2200-02S-X785
The SMC pilot check valve is made from metal body.
Flame-resistant resin
$96.07

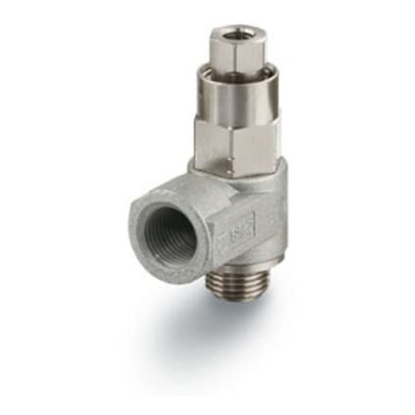

AS-X785 Series Threaded Fitting, R 1/8 Inlet Port x Rc 1/8 Female Outlet Port, SMC, AS2200-01S-X785
AS2200-01S-X785
The SMC pilot check valve is made from metal body.
Flame-resistant resin
$84.57
