Pneumatic Cylinder Switches

The SMC M9P series ATEX compliant solid state switched are available in 2-color indication with diagnostic output, water resistant 2-color indication, built-in OFF-delay timer (200 ms), magnetic field resistant, heat resistant and wide range detection configurations. Band, rail, tie-rod and direct mounting styles Electrical entry is grommet, connector, terminal conduit

The SMC Y7H series ATEX compliant solid state switched are available in 2-color indication with diagnostic output, water resistant 2-color indication, built-in OFF-delay timer (200 ms), magnetic field resistant, heat resistant and wide range detection configurations. Band, rail, tie-rod and direct mounting styles Electrical entry is grommet, connector, terminal conduit

The SMC D-M9P is direct mounting type solid switch. It is very flexible. The use of lead wire compliant with UL standard. Lead free 2-wire load current is reduced

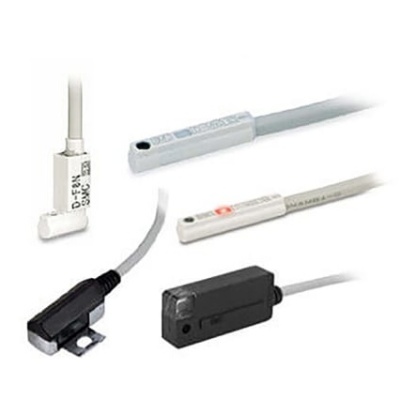

Eliminates harnessing work by cable with connector specifications Adopts global standardized connector

SMC Reed Pneumatic Position Detector The SMC D-A9 series 24VDC pneumatic reed position detector is robust equipment with a magnetic sensor for pneumatic actuation. It comes with built-in indicator lights and set screws. The detector lead wire is 3m long and weighs 30g. Features and Benefits Durable vinyl sheath cable that is an oval shape for added flexibility Insulation resistance is 50Mohm Load current ranging from 5mA to 40mA Operating temperature rating ranging between -10°C and 60°C Applications Automotive/heavy vehicle Electronics Food/beverage Forestry/paper products Material handling Packaging Petroleum/chemical Resource Steel Textile Certifications IEC529 IP67 rated JISC0920

The SMC reed switch used in IC circuit with 4 to 8 V DC load voltage. With indicator light

Sensing Switches A selection of reed and auto switches from SMC. Leakage current: None Operating time: 1.2 ms Operating temperature: -10 to 60 °C Standards Enclosure: IEC60529 Standard IP67

D-A9 Series The DA-9 series reed switches utilise a magnetic sensor for pneumatic actuators. They come with built in indicator lights and set screws. For extra versatility they are available in both two and three wire options in both in-line and vertical entry configurations. Possible Applications: Automotive/Heavy Vehicle Food/Beverage Forestry/Paper Products Material Handling Packaging Petroleum/Chemical Steel Textile Electronics Life Sciences Resource Voltage Rating: 5Vdc or 24Vdc Load current: 50mA or less Operating time: 1.2ms or less Durable vinyl sheath cable which is oval shape for added flexibility Insulation resistance of 50MΩ or more at 500 Vdc Ambient temperature rating: -10 to 60 °C Standards Enclosure: IEC529 criteria IP67, JISC0920 Auto Switches

D-A9 Series The DA-9 series reed switches utilise a magnetic sensor for pneumatic actuators. They come with built in indicator lights and set screws. For extra versatility they are available in both two and three wire options in both in-line and vertical entry configurations. Possible Applications: Automotive/Heavy Vehicle Food/Beverage Forestry/Paper Products Material Handling Packaging Petroleum/Chemical Steel Textile Electronics Life Sciences Resource Voltage Rating: 5Vdc or 24Vdc Load current: 50mA or less Operating time: 1.2ms or less Durable vinyl sheath cable which is oval shape for added flexibility Insulation resistance of 50MΩ or more at 500 Vdc Ambient temperature rating: -10 to 60 °C Standards Enclosure: IEC529 criteria IP67, JISC0920 Auto Switches

Reed Auto Switch Direct mounting auto reed switches from SMC. This reed switch is magnetic field resistant and heat resistant. Designed for use with air cylinders, this model does not have the indicator light. These switches have a rugged design and a 1Ω or less internal resistance. IP 67 Rating 0°C to 60°C Temperature Rating

D-C7 Series D-C7 series auto switch. This general purpose reed switch is compatible with CDRA1 Rotary Actuator. Reed switch action Band mounting Lead wire (5m) Auto Switches

D-R73 Series The D-R73 series auto switches are available with two colour indicator light for ease of operation helping the user identify the optimum operating position. Choose between either left hand or right hand mount. Auto Switches
