Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining
Flange , To Fit 63mm Bore Size, SMC, C55-F063
C55-F063
C55 Compact ISO Cylinder
ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard.
ISO standard 21287
Compact
Magnetic sensing
Note
Fastening elements should be ordered separately.
Standards
ISO 21287
$43.57
FLANGE, SMC, CS2-F16
CS2-F16
The SMC Air cylinder is a double acting, non lube air cylinder. Aluminium die cast is used for both the rod and head covers, which means a maximum weight reduction of approximately 50 percent. This series is available in bore sizes 125mm, 140mm and 160mm with maximum strokes up to 1600mm. Air cushions are standard on both ends. Other options include auto switches, rod boots, and Rc, NPT or G thread types.
Double acting and single rod
Optional rod boots
Auto switch capable
$209.19
Floating Bracket , For Use With MY1 Series, SMC, MY-J25
MY-J25
The SMC MY1 series compensation joint is a type of accessory designed for pneumatic cylinders.
Designed for guided cylinders
$25.78
Floating Joint , For Use With Actuator, SMC, JS10-4-070
JS10-4-070
The SMC JS series floating joint made of stainless steel and used to increase corrosion resistance. JS uses a dust cover made of fluoro rubber or silicon rubber and is shaped to prevent residual liquid, therefore sealing is improved.
Applicable dust cover in flouro rubber or silicon rubber
$157.86
Floating Joint , For Use With CG5-S Series, CJ5-S, SMC, JS16-5-080
JS16-5-080
The SMC JS series floating joint made of stainless steel and used to increase corrosion resistance. JS uses a dust cover made of fluoro rubber or silicon rubber and is shaped to prevent residual liquid, therefore sealing is improved.
Applicable dust cover in flouro rubber or silicon rubber
$170.16
Floating Joint , For Use With Compact Cylinders, SMC, JB25-6-100
JB25-6-100
The SMC compensation joint is designed for compact cylinders, offering high tensile stresses and compactness.
Centring is unnecessary
The installation time is dramatically reduced
$77.45
Floating Joint , For Use With Cylinder Rod, SMC, JA40-12-175
JA40-12-175
The SMC Floating joint can absorb any off centring or loss of parallel accuracy present between the cylinder and the driven body when a high level of machining accuracy is unnecessary.
Compact and suitable for high tensile stresses
Long life service
$79.32
Floating Joint , For Use With JA50, JB63, SMC, JAF30-10-125
JAF30-10-125
The SMC series JA floating joint, can absorb any "off-cantering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, cantering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.
Standard type floating joint
Mountings basic, flange, foot
Eleven model options available
Cantering is unnecessary
Rotation angle ¹5°
$119.15
Floating Joint , For Use With JB10, SMC, JA6-3-050
JA6-3-050
The SMC series JA floating joint, can absorb any "off-cantering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, cantering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.
Standard type floating joint
Mountings basic, flange, foot
Eleven model options available
Cantering is unnecessary
Rotation angle ¹5°
$31.07

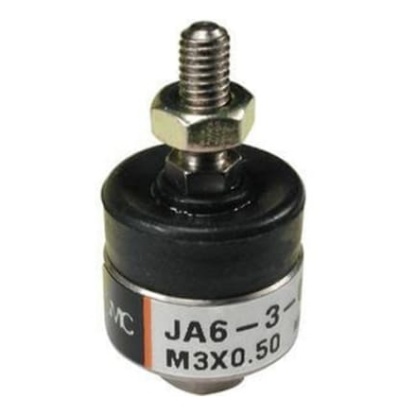

Floating Joint , For Use With JB10, SMC, JA63-18-150
JA63-18-150
The SMC series JA floating joint, can absorb any "off-cantering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, cantering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.
Standard type floating joint
Mountings basic, flange, foot
Eleven model options available
Cantering is unnecessary
Rotation angle ¹5°
$151.13
Floating Joint , For Use With One Touch Fittings, SMC, KQ2K12-03AS
KQ2K12-03AS
The SMC KQ2 Floating Joint of one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 series to be used for a wide range of pressures. Its release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
Compact design
Light weight
Improved tube insertion and removal
$118.65
