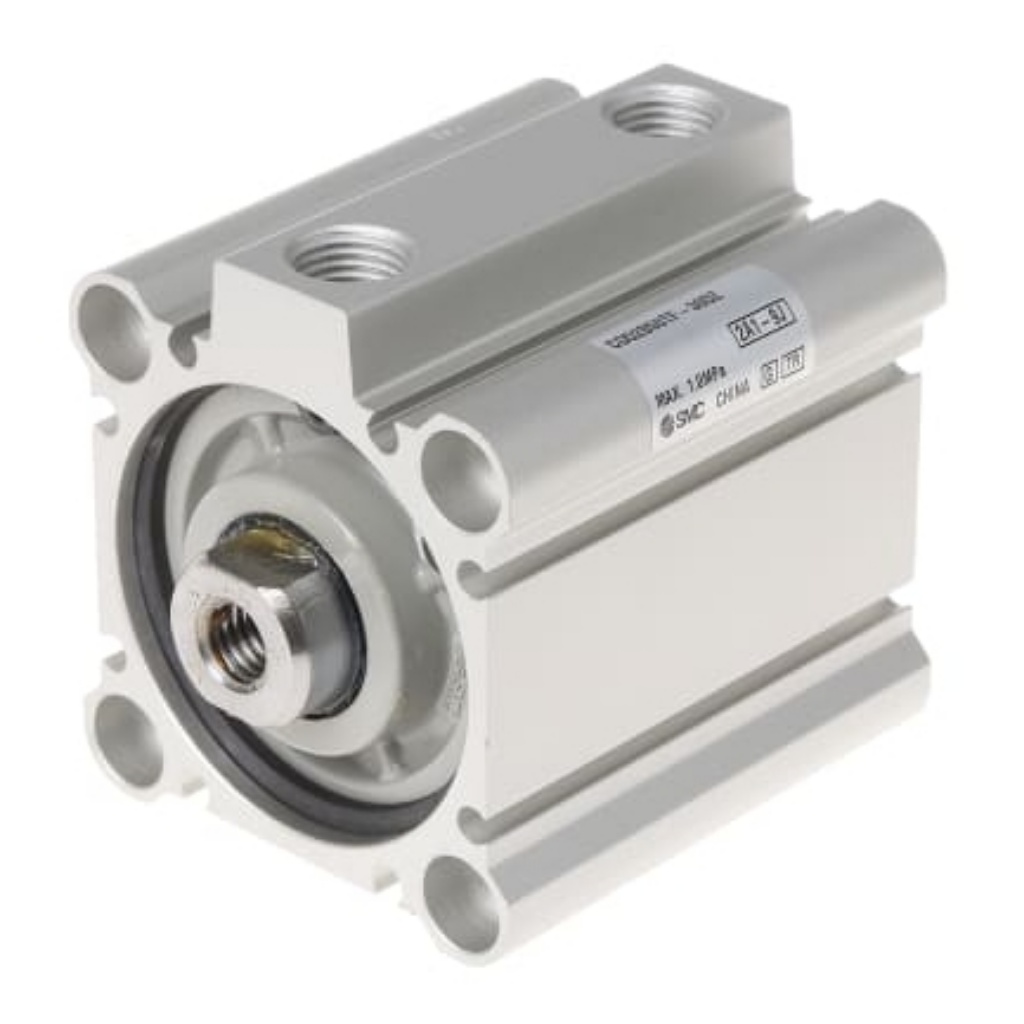

Picture of Pneumatic Compact Cylinder - 50mm Bore, 30mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B50TF-30DZ
Picture of Pneumatic Compact Cylinder - 50mm Bore, 30mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B50TF-30DZ
Picture of Pneumatic Compact Cylinder - 50mm Bore, 30mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B50TF-30DZ

Pneumatic Compact Cylinder - 50mm Bore, 30mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B50TF-30DZ

Cylinders

Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.

Space and weight saving
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports

Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch)
Internal female threaded rod ends
Nitrile seals
Lubrication not required
Suitable for solid state switch D-M9PL
Manufacturer: SMC
SKU: CDQ2B50TF-30DZ
$209.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke30mm
Bore50mm
ActionDouble
Manufacturer SeriesCQ2
Length68.5mm
Dimensions68.5 x 71 x 64mm
Width71mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height64mm
Minimum Operating Temperature-10°C
Maximum Operating Temperature+70°C
Weight514g
