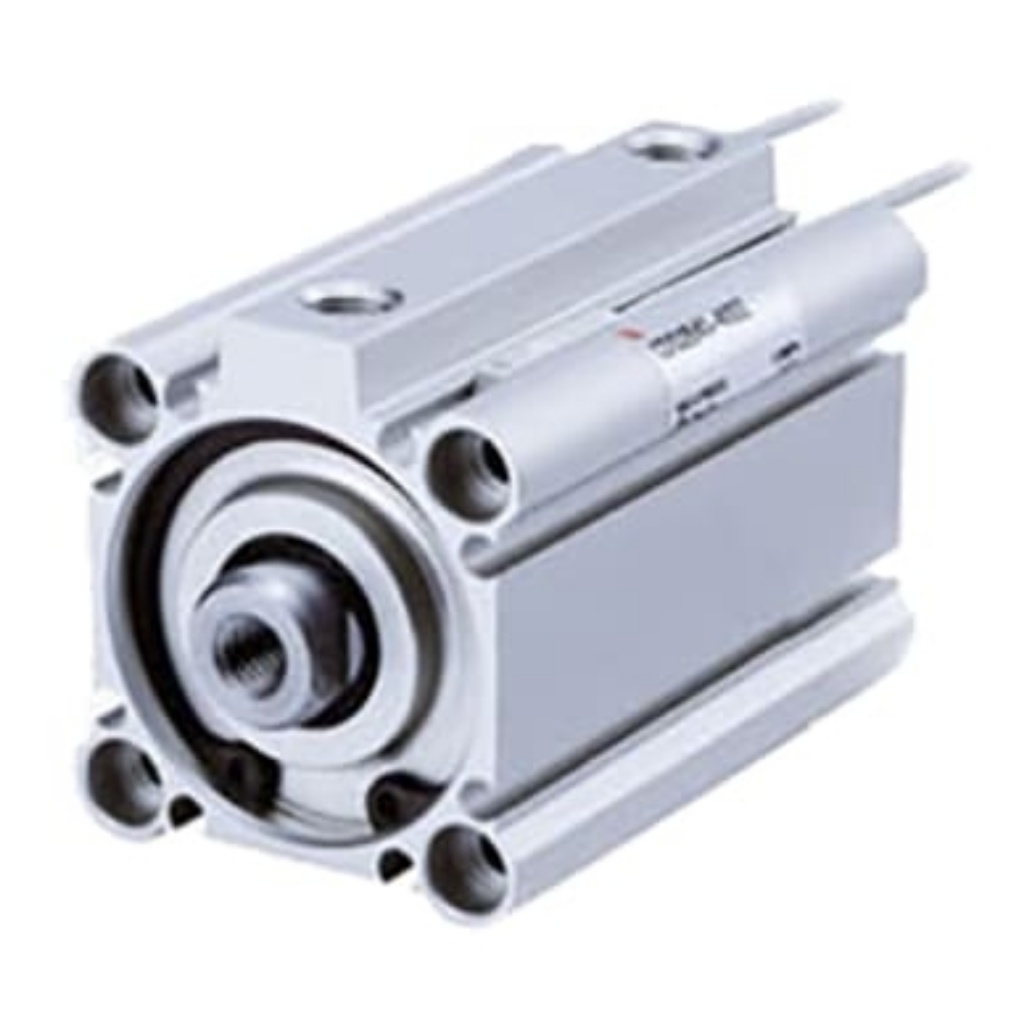

Picture of Pneumatic Compact Cylinder - 50mm Bore, 100mm Stroke, Double Acting, SMC, CDQ2B50TF-100DZ

Pneumatic Compact Cylinder - 50mm Bore, 100mm Stroke, Double Acting, SMC, CDQ2B50TF-100DZ

SMC CDQ-Z Compact Cylinder

SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options.

SMC CDQ Series
Manufacturer: SMC
SKU: CDQ2B50TF-100DZ
$238.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke100mm
Bore50mm
ActionDouble
Length148.5mm
Cushioning TypeNot Cushioned
Dimensions148.5 x 71 x 64mm
Width71mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height64mm
Minimum Operating Temperature-10°C
Weight1.1kg
Maximum Operating Temperature+60°C
