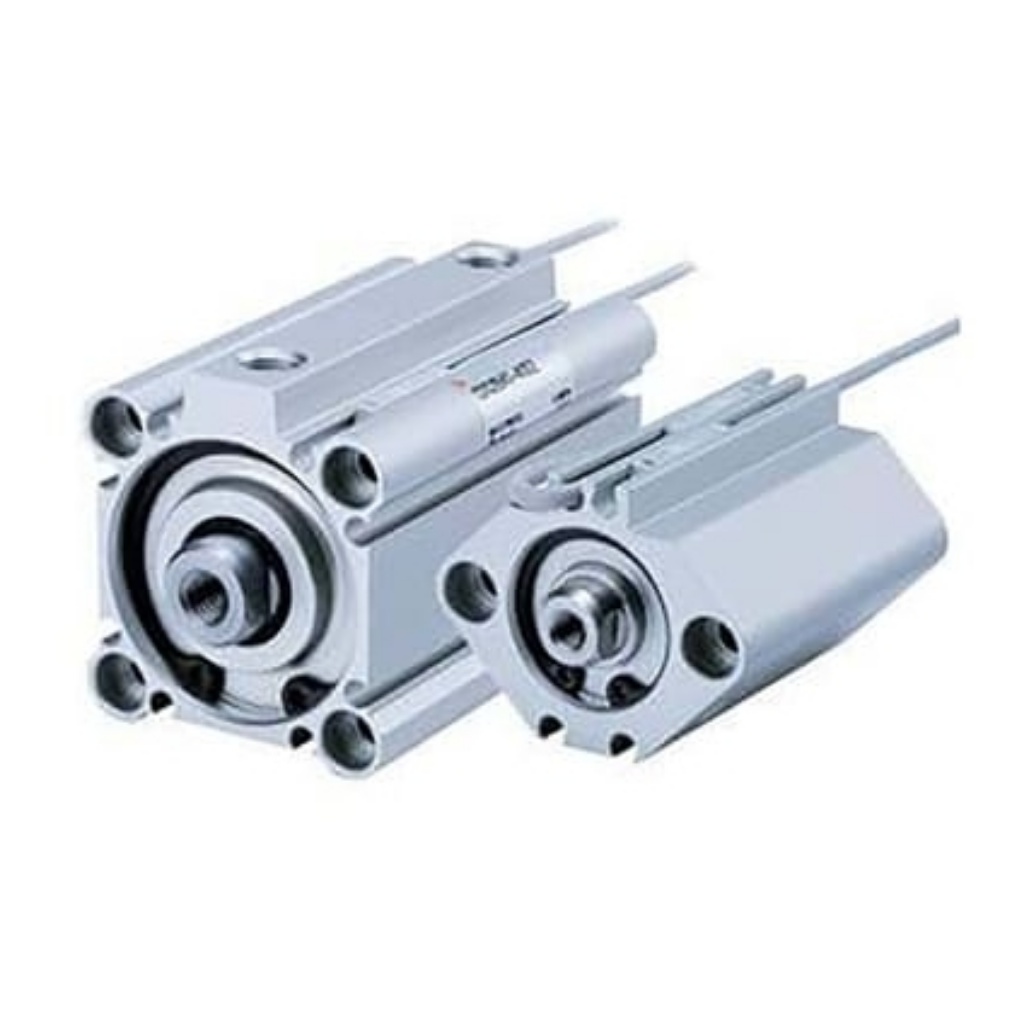

Picture of Pneumatic Compact Cylinder - 40mm Bore, 75mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2A40TF-75DZ

Pneumatic Compact Cylinder - 40mm Bore, 75mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2A40TF-75DZ

Double acting, single rod, compact cylinder
Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard stroke range (mm): 5 to 100
Port threads: M (12 to 25 bore), Rc, NPT or G (32 to 100 bore)
Can mount small auto switches on 4 surfaces
Manufacturer: SMC
SKU: CDQ2A40TF-75DZ
$200.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke75mm
Bore40mm
ActionDouble
Manufacturer SeriesCQ2
Length57mm
Pneumatic ConnectionG 1/8
Piston Rod Thread GenderMale
Cushioning TypeNot Cushioned
Dimensions57 x 121.5 x 52mm
Width121.5mm
Maximum Operating Pressure1 MPa
Height52mm
Minimum Operating Temperature-10°C
Maximum Operating Temperature+60°C
Weight575g
