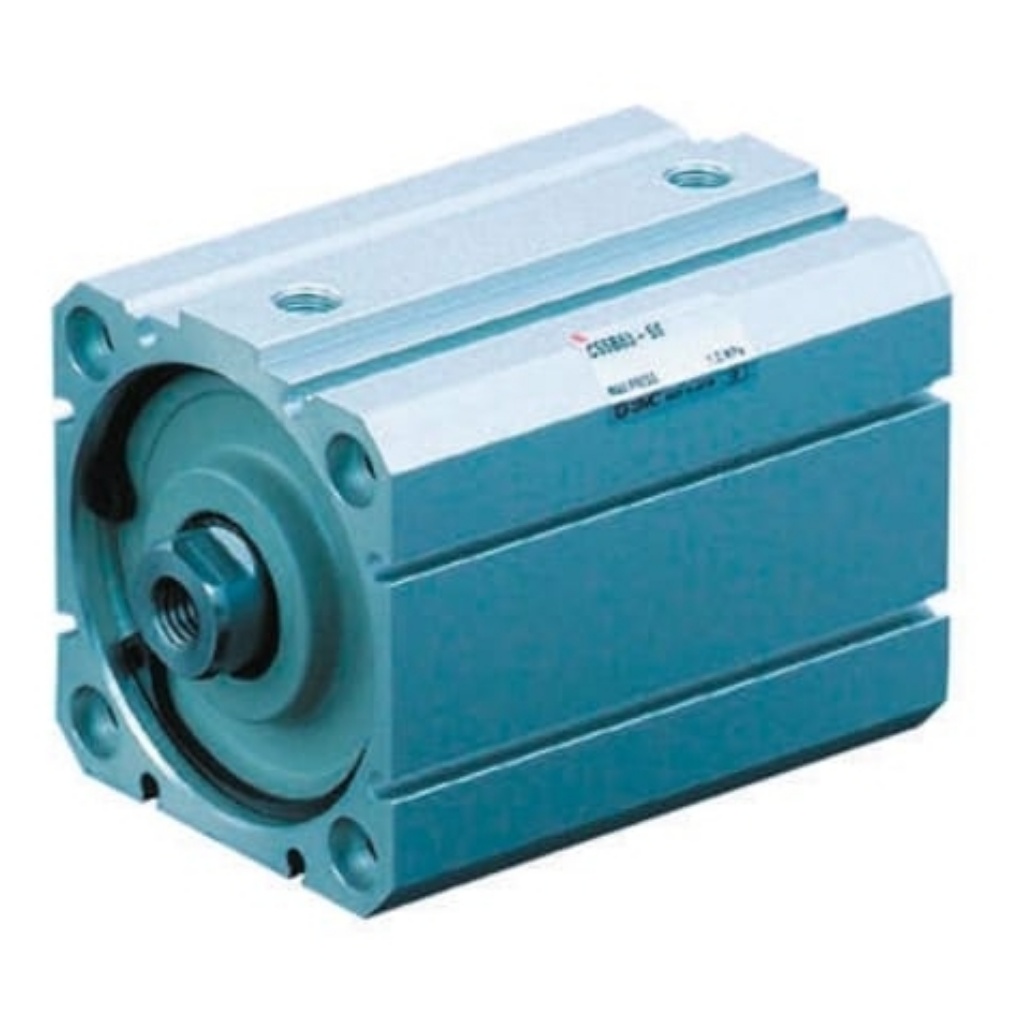

Pneumatic Compact Cylinder - 40mm Bore, 100mm Stroke, C55 Series, Double Acting, SMC, CD55B40-100

C55 Compact ISO Cylinder

ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard.

ISO standard 21287
Compact
Magnetic sensing

Note

Fastening elements should be ordered separately.

Standards

ISO 21287
Manufacturer: SMC
SKU: CD55B40-100
$246.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke100mm
Bore40mm
ActionDouble
Manufacturer SeriesC55
Length152mm
Cushioning TypeRubber
Dimensions152 x 52 x 52mm
Width52mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height52mm
Maximum Operating Temperature+70°C
Weight776g
Minimum Operating Temperature-10°C
