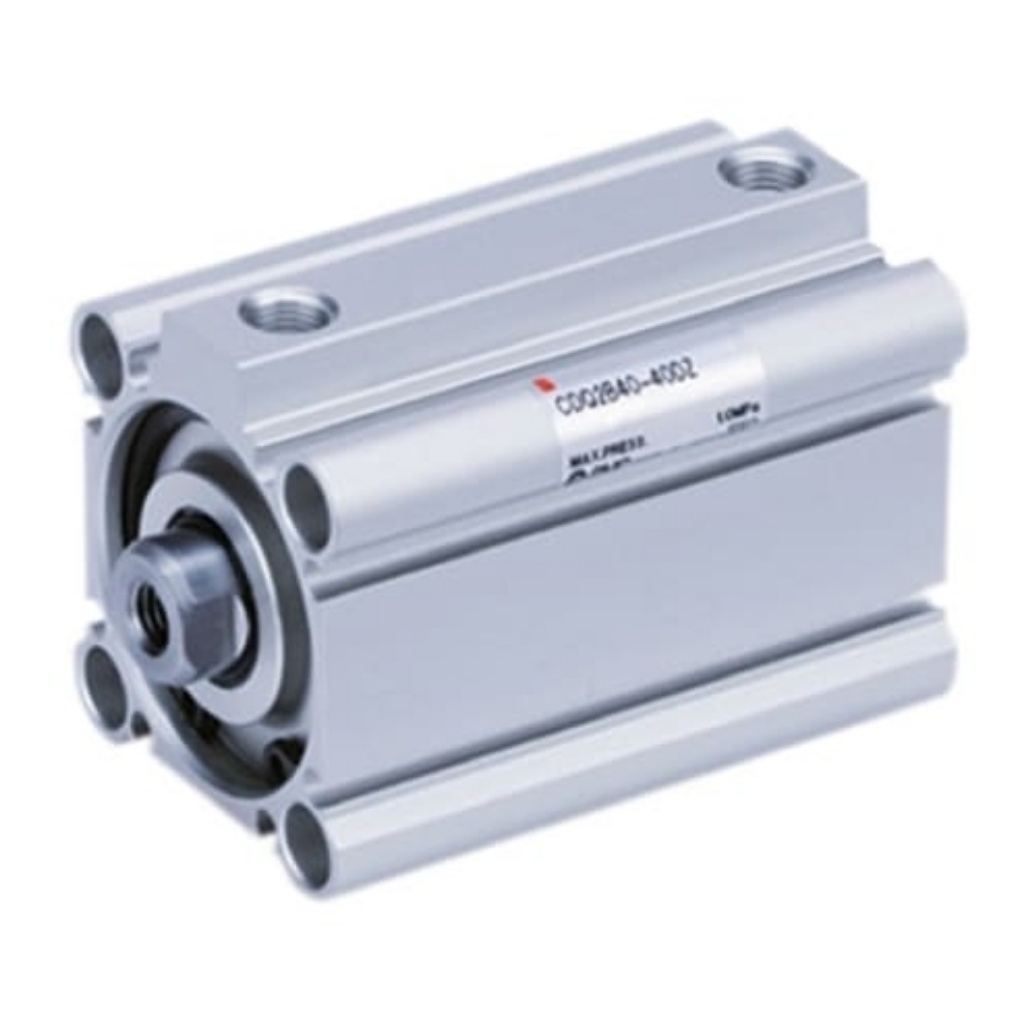

Picture of Pneumatic Compact Cylinder - 32mm Bore, 10mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B32TF-10DZ

Pneumatic Compact Cylinder - 32mm Bore, 10mm Stroke, CQ2 Series, Double Acting, SMC, CDQ2B32TF-10DZ

Cylinders

Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.

Space and weight saving
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports

Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch)
Internal female threaded rod ends
Nitrile seals
Lubrication not required
Suitable for solid state switch D-M9PL
Manufacturer: SMC
SKU: CDQ2B32TF-10DZ
$122.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke10mm
Bore32mm
ActionDouble
Manufacturer SeriesCQ2
Length40mm
Dimensions40 x 49.5 x 45mm
Width49.5mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height45mm
Minimum Operating Temperature-10°C
Weight152g
Maximum Operating Temperature+70°C
